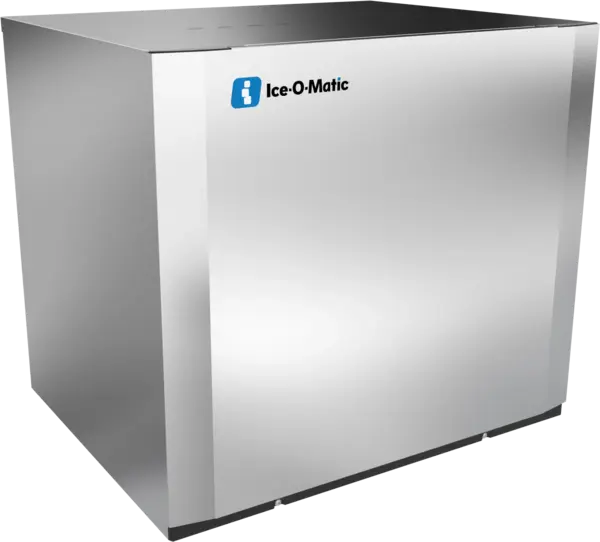

ICE-O-Matic CIM0636FW 30.25" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

MPN#: CIM0636FW
Made in USA
Free Freight?
Quick Ship
$5,289.99
$5,289.99
or enjoy small payments $113.68/mo.
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 5290
  • 7 Year evaporator warranty w/filter purchase (see below)
  • Reduce service calls by up to 65%
  • Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
  • Better tasting ice
  • 2023 model, meets the newest EPA and DOE codes.

Description

ICE-O-Matic CIM0636FW Description

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 620 lb production/24 hours at 70°/50° (535 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that produces full-dice ice and has a maximum 24-hour output of 620 lbs. This water cooled model is configured to use 208-230v/60/1-ph power and draws 9.0 amps. The production of 100 pounds of ice requires 4.27 kWh of power, 180 gallons of condenser cooling water, and 19.2 gallons of potable water.

Water cooled ice machines are a great choice if your establishment is in an area with low water costs and has the added benefit of reducing the amount of heat expelled into the establishment. Unlike remote condenser units, water-cooled units don’t require the routing of coolant and the drilling of holes through walls, ceilings or roofs.

The interior of this Full Dice Ice Machine features a Plastic Food Zone which is made up of snap-together BPA-free parts. These parts are easy to service and require no tools. Since these parts are dishwasher safe, they cleaning them is as easy as putting them through a cycle.

ICE-O-Matic CIM0636FW 30.25 Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

Standard Features:
 Ice-O-Matic Water Cooled Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
  • 30" (768 mm) wide space-saving design.
  • Produces up to 620 lbs (281 kg) of ice per day.
  • Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
  • Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
  • Energy and Environment
    • Up to 20% more energy efficient than other models.
    • Exceeds new 2018 DOE (Department of Energy) regulations.
    • Environmentally friendly, including BPA-free plastic and recyclable parts.
  • Sanitation
    • Simple, one-touch controls for sanitization and descaling.
    • BPA-free snap-in, snap-out dishwasher-safe components.
    • Built in Agion® ensures unbeatable antimicrobial protection.
    • Smart LED light indicates machine status and when cleaning is required.
    • Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.

Options

Options for ICE-O-Matic CIM0636FW

Ice-O-Matic Ice Machine water filters can reduce service calls by 60% and will produce better tasting ice
Optional: ChillTech water chilling system. Increases ice yields
What is included
  • Compressor warranty: 5 yr. parts on the compressor warranty, standard
  • Parts & labor warranty: 3 yr. parts & labor warranty, standard
  • Evaporator warranty: 5 yr. evaporator warranty, standard
  • Voltage: 208-230v/60/1-ph, 9.0 amps, standard

Q & A

Videos

ICE-O-Matic CIM0636FW 30.25" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts
ICE-O-Matic CIM0636FW 30.25" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts
ICE-O-Matic CIM0636FW 30.25" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

NOTE! This is a general product line video and does not necessarily reflect the listed model.

ICE-O-Matic CIM0636FW 30.25" Full-Dice Ice Maker, Cube-Style - 600-700 lbs/24 Hr Ice Production, Water-Cooled, 208-230 Volts

ICE-O-Matic CIM0636FW Specifications

Type of CoolingWater-Cooled
24 Hr Production600-700 lbs
Type of IceFull-Dice
ModelElevation Series™
BrandICE-O-Matic
Refrigerant TypeR-404A
Made inUSA
CertificationsCE
VendorIce-O-Matic
Voltage208-230 Volts
Width (in)270
Height (in)270
Depth (in)330
Weight270

Additional Information on ICE-O-Matic CIM0636FW

warrantysheet.pdf diagram.pdf ownersmanual.pdf brochure.pdf slopefrontstoragebins.pdf servicemanual.pdf ice-o-matic-cim0636fwspecsheet.pdf

ICE-O-Matic CIM0636FW Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
