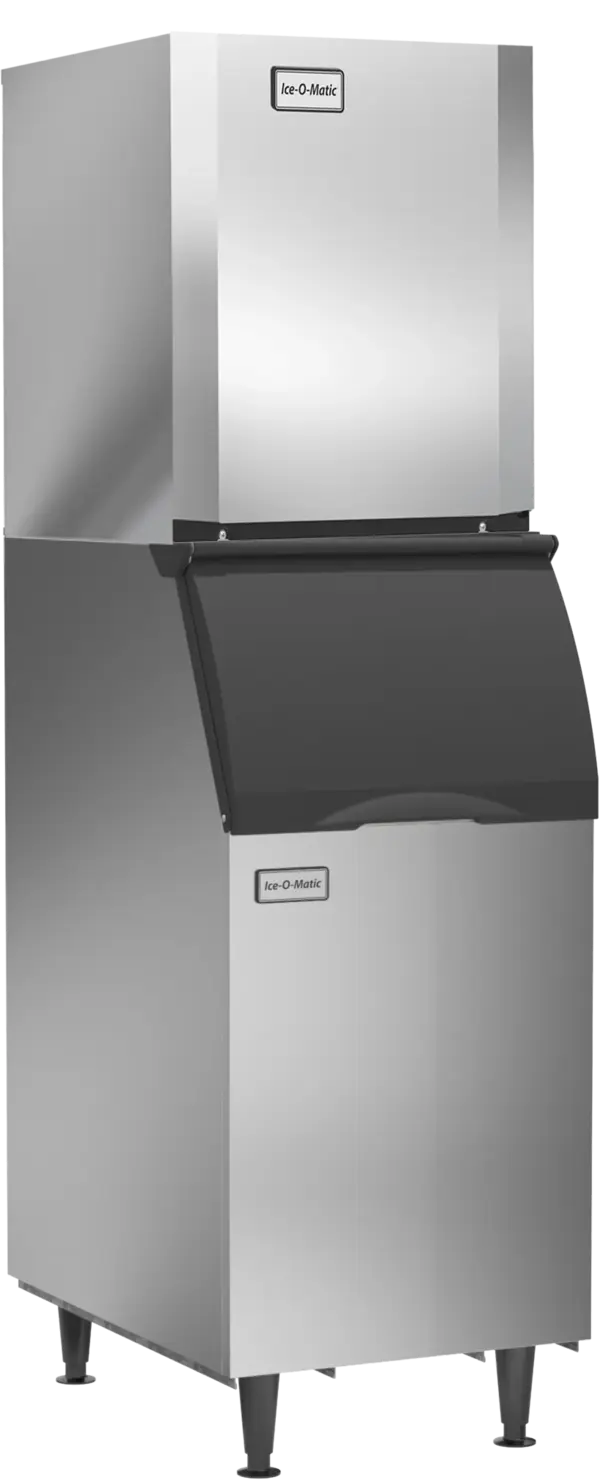

ICE-O-Matic CIM0320FW 22.25" Full-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
Calculate
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- 7 Year evaporator warranty w/filter purchase (see below)
- Better tasting ice
- Reduce service calls by up to 65%
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0320FW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 300-400 lbs |
| Type of Ice | Full-Dice |
| Model | Elevation Series™ |
| Brand | Ice-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 115 Volts |
| Width (in) | 22.25 |
| Height (in) | 21.25 |
| Depth (in) | 24.25 |
| Weight | 150.00 |
Additional Information on ICE-O-Matic CIM0320FW
diagram.pdf
parts-manual.pdf
brochure.pdf
slope-front-storage-bins.pdf
owner-s-manual.pdf
warranty-sheet.pdf

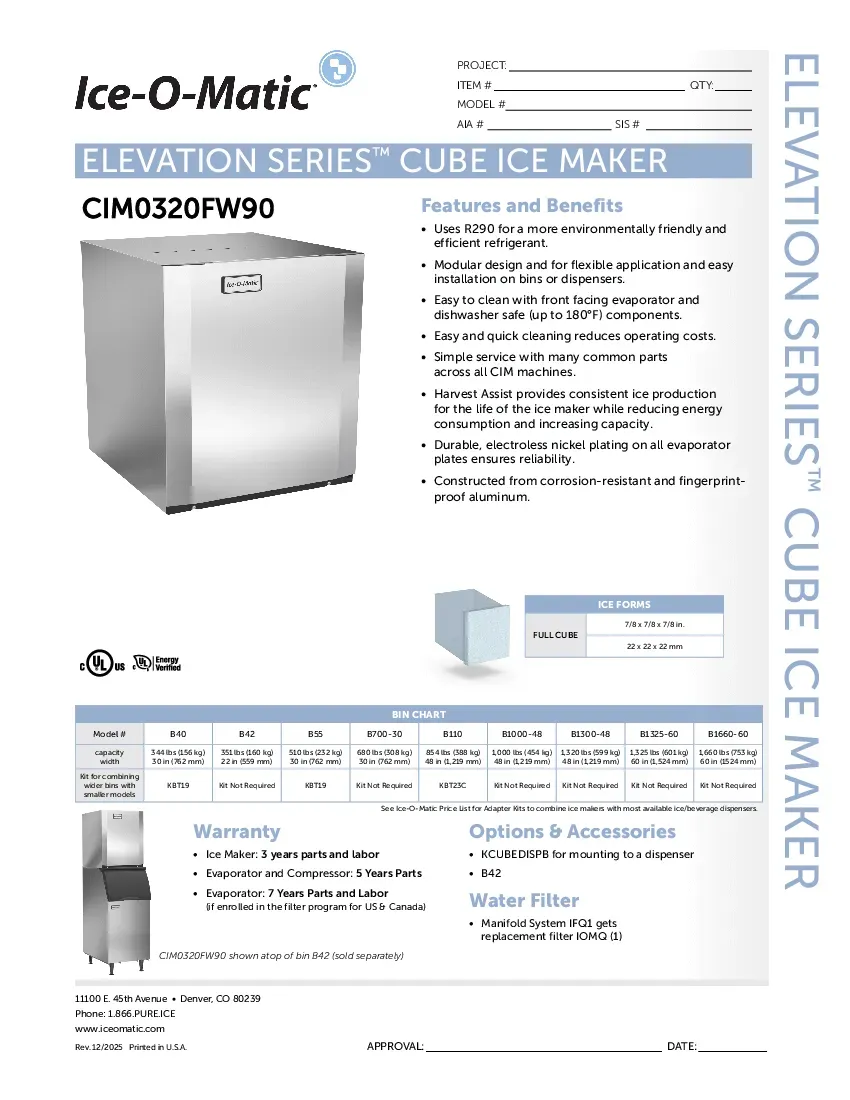

ice-o-matic-cim0320fw.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0320FW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0320FW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that is a water cooled ice machine unit rated to produce 316 lbs of ice in a 24 hour period (tested with a constant water temperature of 50°F and ambient air temperature of 70°F). To produce 100 lbs of ice this model requires 179 gallons of water to cool the condenser, 19.6 gallons of potable water to freeze into ice, and 5.19 kWh of power. The power configuration of this unit is 115v/60/1-ph at 10.7 amps.
The interior parts of this Full Dice Ice Machine are made from BPA Free plastic and are dishwasher safe. These parts are designed to be snapped out and snapped back into place thanks to the tool-free construction. Microbial growth is thwarted by the included Agion® technology. Maintenance and cleaning tasks aare done by removing the front panel of the device for easy access.
Installation and service of the ice maker is made simple with the Universal Smart Harness™ which provides digital diagnostics for easy troubleshooting.
- 22.25" (565 mm) wide space-saving design.
- Produces up to 316 lbs (143 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
