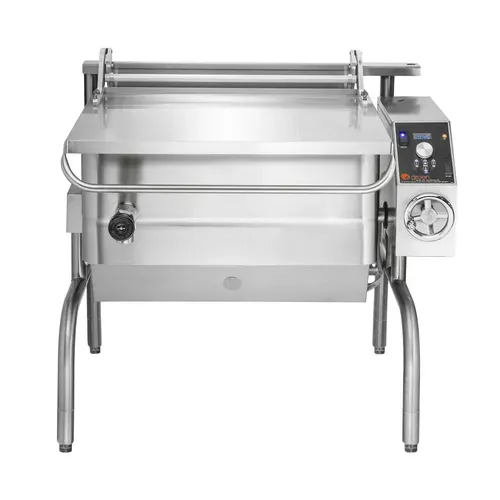

Groen BPM-40EA BPM Series 40 Gallon Electric Tilting Skillet Braising Pan with Dial Contols - 208 Volts, 15.3 Kilowatts

SKU#: BPM-40EA
Made in USA
Free Freight?
Quick Ship
$22,927.80
or enjoy small payments $492.72/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 23793
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Warranty
(1) year parts & labor, (10) year pan warranty, standard
(K-12 School purchases only) Two year parts and labor warranty

Groen BPM-40EA Specifications

SeriesBPM Series
Control TypeDial
Installation TypeFloor Model
BrandGroen
Made inUSA
CertificationsNSF
Power TypeElectric
ControlsDial
Capacity40 Gallon
HeatElectric
Voltage208 Volts
Wattage15.3 Kilowatts
Width (in)48
Height (in)43.5
Depth (in)39.75
Weight673.00

Additional Information on Groen BPM-40EA

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Groen BPM-40EA Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Groen BPM-40EA Description

Braising Pan, electric, 40-gallon capacity, 10" deep pan, 38" pan height, IPX6 water rated electronic Advanced controls with digital display, 1 minute to 10 hour timer, 175° - 400°F preset temperatures along with manual setting capability, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, 15.0kW, cUL, UL, IPX6, NSF, Made in USA

The Groen BPM-40EA Braising Pan is the largest electrically heated floor standing braising pan in their product line. With a 40-gallon capacity, this braising pan is designed for cooking huge amounts of food. How huge? Well, cooking 20 pounds of vegetables is child’s play for this braising pan. Although this unit is all about large batch cooking, it takes up as little space as possible, 48” wide and 39-¾” from front to back. If you need to make a super jumbo batch of jambalaya or a boatload of beef stew, this braising pan should be at the top of your list.

The stainless steel interior of the cooking pan is emery polished to a 100 grit finish that prevents food from sticking which also means less time cleaning.  The 10” deep siding is marked with graduations in both liters and gallons, making it easy to measure the contents at a glance. The pan is 35-¾” wide and 28-¼” from front to back and the body is made from a single piece of extremely corrosion resistant 304 stainless steel.  The corners of the pan have a 3” radius which makes moving food around a lot easier, plus the lack of tight corners leaves gunk no place to hide when cleaning. The cooking surface is evenly heated by flat bar electric heating elements and a ⅝” thick distortion resistant heavy plate clad in stainless steel.

The Groen BPM-40EA Braising Pan has an advanced control panel, not only does it have temperature control, but it also has a built-in timer.  This is great for a large busy kitchen, with the temperature and time dialed in it’s nearly impossible to overcook a large batch of food. The control panel is mounted on an IPX6-rated stainless steel housing and includes: a power switch with a built-in indicator light, a knob for dialing in the temperature and time, an LED readout of the temperature or cook time, a light indicator for heat, buttons to set the high and low temperature presets, a manual mode that lets you precisely set the temperature, and a button to set the 1 minute to 10 hour timer with an indicator light.

You don’t need to worry about overcooking or burning food in the Groen BPM-40EA, the precise temperature controls are thermostatically regulated and heating automatically turns off when the preset high temperature is reached and turns back on when the minimum temperature preset is hit.  For the safety of everyone in the kitchen all Groen tilting braising pans come standard with a high limit thermostat.

Tilting the pan is simple, intuitive, and precise with the hand crank, it only takes 24 turns to tilt the pan to full vertical. For cleaning it is possible to tilt it past full vertical.  The worm-and-gear mechanism makes tilting smooth and hassle-free.

The exterior of the Groen BPM-40EA has a #3 finish which minimizes cleaning time and maximizes the aesthetics of the unit over its lifetime. The unit sits on an open leg tubular stand which makes spotting and cleaning any spills under and around it easy. All 4 legs have adjustable bullet feet that keep the unit level on uneven flooring. For your convenience, a faucet can be easily mounted on the left right or rear right of the unit with the included bracket. Faucet is optional.

Make sure to select the right voltage based on what you use in your kitchen, this unit comes in 5 different voltage and phase configurations, 480v/60/3-ph (19.0 amps), 208v/60/1-ph (64.0 amps), 240v/60/3-ph (37.0 amps), 240v/60/1-ph (64.0 amps), and 208v/60/3-ph (43.0 amps).

The Groen BPM-40EA Braising Pan is made in the USA and has certification from cUL, UL, and NSF.

Options for Groen BPM-40EA

CE model
Tangent draw-off
Lead time
Warranty
Voltage
Prison package
Start-up
Extended warranty

Groen BPM-40EA Accessories

Groen 158476 Drain drawer for (40) gallon 158476
$3,132.00
Groen 150247 Pan Carrier 150247
$1,092.00
Groen 150498 Drain Cart & Trough Assembly 150498
$5,149.20
Groen 146354 Casters 146354
$618.00
Groen Z091869 Faucet Z091869
$594.00
Groen Z079995 Lip Strainer Z079995
$474.00
Groen 146220 Faucet 146220
$534.00
Groen 176255 Pan Carrier 176255
$744.00
Groen FL FOOTKIT 4 Flanged Feet FL FOOTKIT 4
$666.00
Groen 146221 Flanged Feet 146221
$348.00
Groen N25871 Faucet N25871
$1,664.60
Groen 128609 Faucet 128609
$1,745.80
Groen 146222 Faucet 146222
$828.00
Groen Z091870 Faucet Z091870
$756.00
Groen Z040602 Faucet Z040602
$2,006.80
Groen N60346 Faucet N60346
$2,012.60
