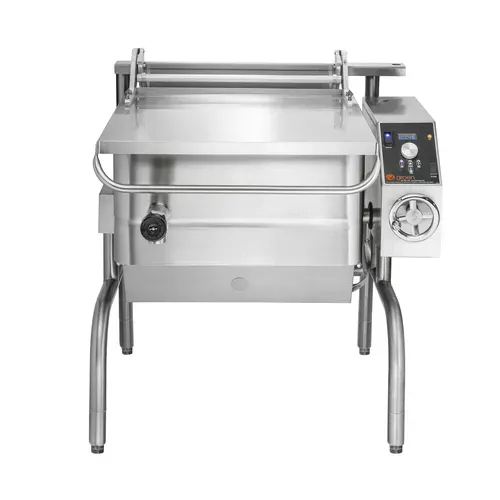

Groen BPM-30GC BPM Series 30 Gallon Gas Floor Model Tilting Skillet Braising Pan with Manual Contols - 104,000 BTU

MPN#: BPM-30GC
Free Freight?
Quick Ship
$25,710.30 /
or enjoy small payments $552.51/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 26681
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Warranty
(1) year parts & labor, (10) year pan warranty, standard
(K-12 School purchases only) Two year parts and labor warranty

Groen BPM-30GC Specifications

BTU104,000 BTU
Total BTU56000 - 104000
SeriesBPM Series
Installation TypeFloor Model
BrandGroen
Made inUSA
CertificationsNSF
Power TypeGas
ControlsManual
Capacity30 Gallon
HeatGas
Width (in)38.5
Height (in)43.5
Depth (in)39.75
Weight586.00

Additional Information on Groen BPM-30GC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Groen BPM-30GC Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Groen BPM-30GC Description

Braising Pan, gas, 30-gallon capacity, 10" deep pan, 38" pan height, IPX6 water rated electronic Classic controls, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, electric spark ignition, 104,000 BTU/hr, cCSAus, NSF, IPX6, Made in USA

The Groen BPM-30GC Gas Tilting Skillet Braising Pan is ideal for medium to large establishments that require large batch cooking.  The 30 gallon, 10” deep pan can be used to fry, sear, saute, steam, boil, and of course, braise large amounts of the product of your choice. This gas heated model has a firing rate of 104,000 BTU/hr.

The cooking surface is a ⅝” thick plate clad in stainless steel that is evenly heated by specially welded heat fins that receive heat from the combustion chamber/gas burner.  The corners of the braising pan have a 3# radius which makes stirring the product simple as well as making cleaning easy. To easily see how much product you have in the pan graduated fill level marks are etched into the side in both gallons and liters. The cooking surface has a smooth 100 grit emery grit finish that prevents the product from sticking and keeps the unit simple to clean.

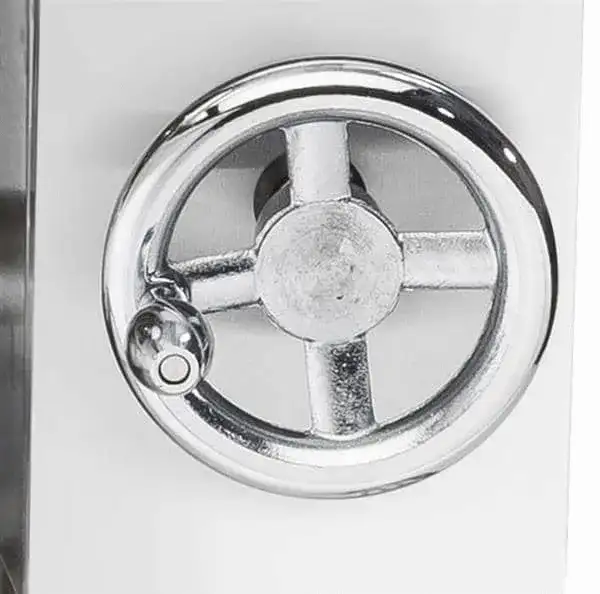

The Groen BPM-30GC Braising Pan uses a hand crank to manually tilt and pour the product, it is simple to use and very precise.  The worm-and-gear mechanism is smooth and in just 24 turns the pan is in the full vertical position, it can also be partially inverted to make cleaning easier.

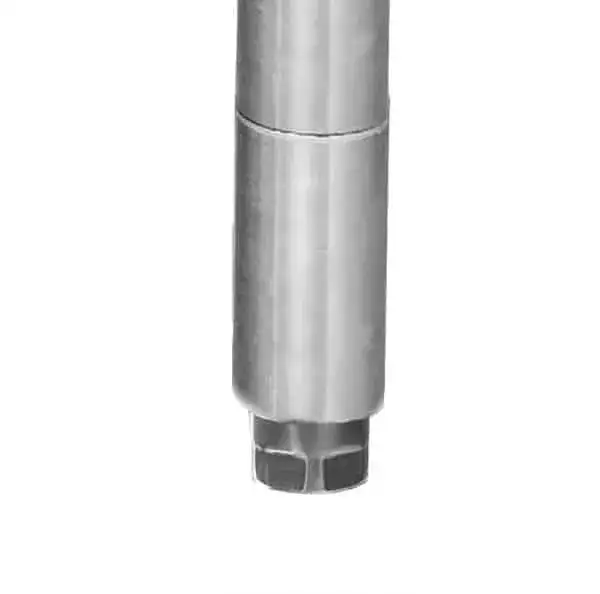

The body of this unit is made from 304 stainless steel in a solid one-piece welded construction with a #3 finish. This makes the unit easy to clean and maintain its good appearance over the service life of the machine.  The unit also features adjustable feet to keep it level on uneven flooring. A faucet mounting bracket is included and allows you to mount a faucet on the left side, right side or right rear of the unit.

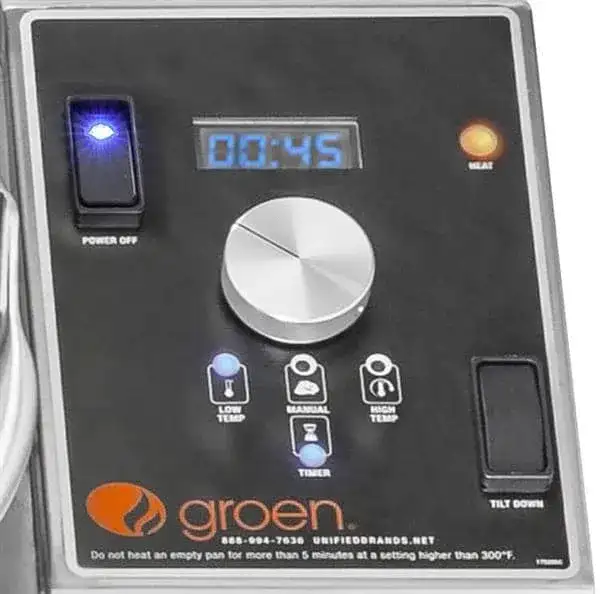

The controls are mounted on the right side in an IPX6-rated stainless steel housing and include power on-off switch with an indicator light, temperature control knob with a range from 175 to 425°F, and a heat indicator light. The temperature is regulated thermostatically, when the target temperature is reached by the pan it automatically shuts-off and when the temperature dips below the set temperature it starts back up. All Groen tilting braising pans have a high limit thermostat for the safety of your crew and establishment.

This model uses 5.0 amps at 115v/60/1-ph and requires a ½” NPT gas connection. Make sure to select either the LP gas or Natural gas option depending on what your establishment uses.

The Groen BPM-30GC Braising Pan is made in the USA and is CSA, NSF and cCSAus certified.

Options for Groen BPM-30GC

Elevations
Tangent draw-off
Lead time
Warranty
Prison package
Gas type
Start-up
Extended warranty
Voltages

Groen BPM-30GC Accessories

Groen 140144 Gas Quick Disconnect 140144
$1,542.80
Groen 158386 Drain drawer for (30) gallon 158386
$3,528.00
Groen Z091869 Faucet Z091869
$594.00
Groen 146354 Casters 146354
$618.00
Groen 150247 Pan Carrier 150247
$1,092.00
Groen Z079995 Lip Strainer Z079995
$474.00
Groen 150498 Drain Cart & Trough Assembly 150498
$5,149.20
Groen 146220 Faucet 146220
$534.00
Groen FL FOOTKIT 4 Flanged Feet FL FOOTKIT 4
$666.00
Groen 176255 Pan Carrier 176255
$744.00
Groen N25871 Faucet N25871
$1,664.60
Groen 146221 Flanged Feet 146221
$348.00
Groen 128609 Faucet 128609
$1,745.80
Groen 146222 Faucet 146222
$828.00
Groen Z091870 Faucet Z091870
$756.00
Groen Z040602 Faucet Z040602
$2,006.80
Groen N60346 Faucet N60346
$2,012.60
