Garland US Range MST44S-E Master Sentry Series Heavy Duty Range
Contact us for details
Calculate
- Please see specification sheet for installation clearance requirements
- Additional required flue riser sold separately
Garland US Range MST44S-E Specifications
| BTU | 35,000 BTU |
|---|---|
| Total BTU | 131000 - 224000 |
| Number of Burners | 3 - 5 |
| Burner Type | 35,000 BTU open burners |
| Installation Type | Freestanding |
| Burner Style | Grates |
| Range Base Style | Storage Base |
| Brand | Garland/US Range |
| Certifications | CE |
| Exterior Finish | Stainless Steel Front & Sides |
| Base | Storage |
| Gas Type | LP |
| Heat | Gas |
| Number of Ovens | None |
| Range Configuration | Burners |
| Width (in) | 34 |
| Height (in) | 36.38 |
| Depth (in) | 38 |
| Weight | 340.00 |
Additional Information on Garland US Range MST44S-E
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range MST44S-E Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

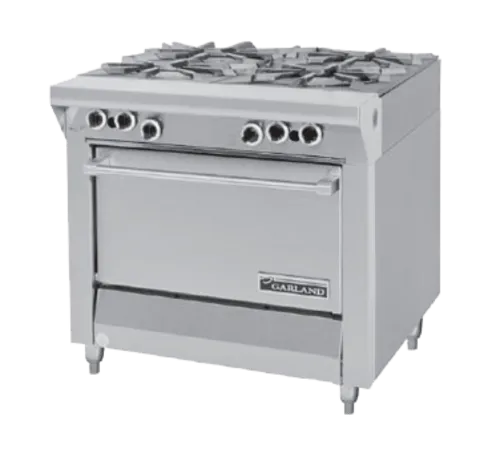

Garland US Range MST44S-E Description
The MST44S-E heavy-duty range features four (4) 35,000 BTU open burners and a storage base. The stainless steel front and sides are able to resist corrosion to preserve the sleek look and prolong its service life all while reducing cleaning time.
Each burner on this commercial gas range is protected by a ring grate bowl that can be easily removed for cleaning. The cast-iron top grates on each one support pots and pans while helping retain as much heat as possible for efficient operation.
This commercial range has an electronic ignition that reduces fuel consumption but also prevents the build-up of gas that's not ignited. For added safety, this unit features a flame-fail on all burners.
This Garland heavy-duty range is CSA Flame, CSA Star, and NSF-approved. It is set on 6" legs that you can adjust to find the ideal working height.
Need more restaurant and heavy-duty ranges and other commercial cooking equipment? We've got an excellent selection right here at CKitchen!
- Cast iron top grates
- Piezo spark ignition for oven
- Stainless steel front and sides
- Fully porcelainized oven interior
- One‑piece Stainless Steel drip tray
- 6" (152mm) chrome steel adj. legs
- 7-1/2" (191mm) stainless steel front rail
- Storage base interior of aluminized steel
- Removable ring grate bowl over each burner
- Sentry total flame failure protection for all burners
- Electric Spark ignition on all pilots Suffix -E models
- 40,000 BTU, (11.72 kW) natural or 35,000 BTU (10.25 kW) propane gas, cast iron oven burner
- Four two -piece Starfire burners with removable heads, rated 30,000 BTU (8.78 kW) CE approved or 35,000 BTU (10.25 Kw) CSA approved models (natural or propane gas)
- Additional oven rack
- Stainless steel main back
- Stainless steel oven interior
- Gas regulator 3/4" or 1-1/4"
- End caps and cover, NC specify
- 6" (152mm) stainless steel adj. legs
- Rear gas connection, 3/4" or 1" NPT
- Celsius dial for oven thermostat (NC)
- Dais base (not for use with “RC” oven)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- Storage base shelf of aluminized or stainless steel
- Stainless steel tubular high shelf, single or double deck
- 4 Polyurethane non-marking swivel casters w/front brakes
- Convection oven base, add C to Model No., e.g. MST44RC
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- 230 volt, 50 cycle components, RC motor and/or electric ignition (export)
- Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/ restraining device, please specify
Heavy-duty gas range with oven, Model MST44R. Four 30,000 BTU, (8.78 Kw), two-piece Starfire burners. Sentry total flame failure protection for all burners. Heavy-duty cast iron top grates and ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 160,000 BTU total. (46.84 kW). Natural or propane gas available. Also available with storage base w/doors, suffix S, and modular top, suffix T. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
