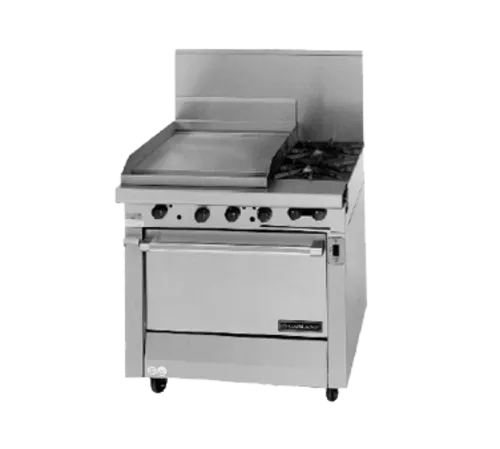

Garland US Range M48-23R Master Series Heavy Duty Range

MPN#: M48-23R
Garland US Range M48-23R Master Series Heavy Duty Range
Free Freight?
Quick Ship
$8,966.00 /

Contact us for details

$7,335.00 /
or enjoy small payments $157.63/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 8966
  • Please see specification sheet for installation clearance requirements
  • Additional required flue riser sold separately

Garland US Range M48-23R Specifications

BTU 24,000 BTU
Number of Burners1 - 2
Total BTU131000 - 224000
Burner Type24,000 BTU open burners
Installation TypeFreestanding
Burner StyleGrates
Range Base StyleStandard Oven
BrandGarland/US Range
CertificationsNSF
Control TypeThermostatic
Exterior FinishStainless Steel Front & Sides
BaseStandard Oven
ControlsThermostatic
Gas TypeLP
HeatGas
Number of Ovens1
Range ConfigurationBurners
Width (in)34
Height (in)36.38
Depth (in)38
Weight590.00

Additional Information on Garland US Range M48-23R

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range M48-23R Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range M48-23R Description

Master Series Heavy Duty Range, gas, 34", (2) 24,000 BTU open burners, (1) 23" griddle, thermostatic controls, standard oven, piezo ignition, stainless steel front & sides, 6" legs, 154,000 BTU, CSA Flame, CSA Star, NSF (Garland)
Packing 154,000 BTU cooking power, this heavy-duty commercial gas range features two (2) 24,000 BTU Starfire open burners, griddle, and oven in one convenient unit. The 23" griddle features a 1" thick steel plate that retains heat for longer periods to speed up your cooking stations. It has three 33,000 BTU burners, which create multiple heat zones controlled thermostatically so you can get the precise cooking temperatures for various recipes. The steel plate is 1" thick for excellent heat retention that can speed up your cooking. The open burners each have removable ring grates for easy cleaning.

This commercial range has stainless steel front and sides for excellent resistance and corrosion. The oven is packing 40,000 BTU cooking power so you can bake a wide variety of dishes as well. The interior is porcelainized so cleaning off grime and food debris should be a breeze. With the piezo spark ignition, you can put this oven to work instantly. The 7.5" stainless steel front rail offers additional space for prep or plating. The unit stands on 6" chrome steel legs that can be adjusted to suit your space.

This heavy-duty range comes with CSA Flame, CSA Star, and NSF certifications.

Get the best restaurant and heavy-duty ranges and other commercial cooking equipment only here at CKitchen!

Standard Features:

  • Piezo Spark ignition for oven
  • Stainless steel front and side
  • Fully porcelainized oven interior
  • Clip‑on stainless steel backsplash
  • One‑piece stainless steel drip tray
  • 6" (152mm) chrome steel adj. legs
  • 7-1/2" (191mm) stainless steel front rail
  • Removable ring grates over each burner
  • Removable front-mounted stainless steel grease receptacle
  • 2-5/16" (591mm) H welded steel splash guards, sides & back
  • 1" (25mm) thick steel griddle plate & two 33,000 BTU (9.67kW) “H” burners
  • 40,000 BTU (11.72kW) natural, 35,000 BTU (10.25kW) propane cast iron oven burner
  • Two 24,000 BTU (7kW) natural, 20,000BTU (5.86kW) propane Starfire burners per section.
  • Thermostatically controlled griddle, (450° F max.) on left with embedded capillary line sensors

Optional Features:

  • Stainless main back
  • Additional oven rack
  • Stainless steel oven interior
  • Gas regulator 3/4" or 1-1/4"
  • End caps and cover (NC, specify)
  • Rear gas connection, 3/4" or 1" NPT
  • 6" (152mm) stainless steel adj. legs
  • Celsius dial for oven thermostat (NC)
  • Dais base (not for use with “RC” oven)
  • Gas shut off valve; 3/4", 1" or 1-1/4" NPT
  • Fully grooved griddle (or grooved sections)
  • 230 volt, 50 cycle components, RC motor (export)
  • Storage base shelf of aluminized or stainless steel
  • Stainless steel tubular high shelf, single or double deck
  • Convection oven base, add C to model #, e.g. M48-23RC
  • Set of (4) Polyurethane non-marking swivel casters w/ front brakes
  • Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
  • Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
  • Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify

Specifications:
Heavy duty gas range, Model M48-23R with ovens with one 23" (548mm) wide x 25" (635mm) deep x 1" (25mm) thick griddle. Valve controlled griddle, bordered side and rear continuous welded stainless steel splash guards, 66,000 BTU (19.3kW) total, on left only, and two 24,000 BTU (7.0 kW) Starfire open burners with heavy duty cast iron top grates/ring grates. 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron burner. Stainless steel front and sides. 154,000 BTU (45.10 kW) total (natural gas). Natural or propane gas. Also available with storage base with doors, M48- 23S, and with modular top, M48-23T. NOTE: Ranges supplied with casters must be installed with an approved restraining device

Options for Garland US Range M48-23R

Common front rail
Oven options
Gas connection
Range finishes
Security options
Convection oven
Extended warranty
Griddle options
Gas type
Mounting options
What is included
  • Standard parts/labor warranty: Two year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
  • NOTE: Note: All Master Series Ranges, storage, modular, fryers, attachment & under-fired char broilers require a high shelf or back guard attachment
  • Oven base range note: NOTE: Oven base ranges require either Highshelf or backguard
