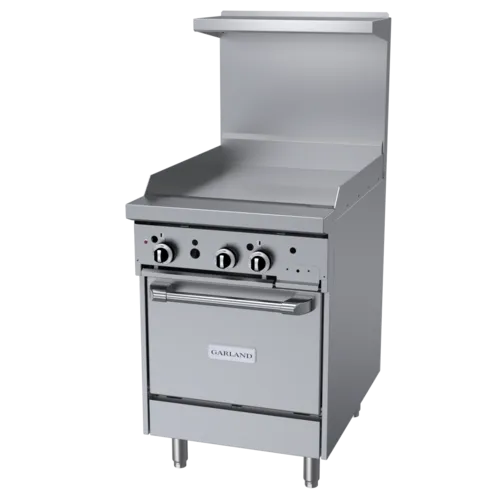

Garland US Range Garland/US Range GFE24-G24L Restaurant Gas Range, 24" W with (1) 24" Griddle and Space Saver Oven - 68,000 BTU

MPN#: GFE24-G24L
Garland/US Range GFE24-G24L Restaurant Gas Range, 24" W with (1) 24" Griddle and Space Saver Oven - 68,000 BTU
Free Freight?
Quick Ship
$9,493.00 /

Contact us for details

$7,767.00 /
or enjoy small payments $166.91/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 9493
  • Please see specification sheet for installation clearance requirements

Garland US Range GFE24-G24L Specifications

BTU 68,000 BTU
Number of Burners1 - 2
Total BTU16000 - 130000
Burner StyleGrates
Range Base StyleSpace Saver Oven
BrandGarland/US Range
CertificationsCE
Control TypeManual
Oven TypeSpace Saver
Legs6" stainless steel legs
BaseSpace Saver Oven
Gas TypeLP
HeatGas
Range Configuration(1) 24" Griddle
Width (in)24
Height (in)45.38
Depth (in)34.5
Weight367.00

Additional Information on Garland US Range GFE24-G24L

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Garland US Range GFE24-G24L Certifications

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Garland US Range GFE24-G24L Description

GFE Starfire Pro Series Restaurant Range, gas, 24", griddle, 5/8" smooth steel plate, snap action & modulating thermostat control 175° - 425°F, electric pilot ignition, flame failure, space saver oven, 3 position rack guides, (1) oven rack, stainless steel front, sides, plate rail and 10" low profile back guard, 6" stainless steel legs with adjustable feet, 68,000 BTU, CSA Flame, CSA Star, cCSAus, CE, NSF (Garland)GFE Starfire Pro Series Restaurant Range, gas, 24", griddle, 5/8" smooth steel plate, snap action controls, electric pilot ignition, flame failure, space saver oven, 3 position rack guides, (1) oven rack, stainless steel front, sides, plate rail and 10" low profile back guard, 6" stainless steel legs with adjustable feet, 68,000 BTU, CSA Flame, CSA Star, cCSAus, CE, NSF (Garland)

Standard Features:
  • Gas regulator
  • Stainless steel front and sides
  • Large easy-to-use control knobs
  • 6" (152mm) adj. stainless steel legs
  • Flame failure protection: all burners
  • Stainless steel 5" (127mm) plate rail
  • Large 27" (686mm) work top surface
  • Stainless steel low profile back guard
  • 12" (305mm) section stamped drip trays w/ dimpled bottom
  • Spark ignition on all concealed burners (open top burners manual ignition)
Standard on Applicable Models:
  • 4 1/4" (108mm) wide grease trough
  • Ergonomic split cast iron ring grates
  • Strong, keep-cool oven door handle
  • Space saver oven w/porcelain interior
  • 32,000 Btuh/9.38 kW cast iron "H" style oven burner
  • Snap action modulating oven thermostat low to 500° F (260°C)
  • Nickel plated oven rack and 3-position removable oven rack guide
  • 26,000 Btuh/7.61 kW 2 piece cast iron Starfire-Pro open top burner
  • Modular top models (suffix "T") with 4” (102mm) adjustable metal legs
  • 18,000 Btuh/5.27 kW cast iron style griddle burner per 12" (305mm) width of griddle
  • Electric spark ignition on all burners, requiring single phase 115V 60Hz or 240V 50Hz (specify) prefix GFE models
  • 5/8" (15mm) thick steel griddle plate with snap action modulating griddle control 175° to 425° F ( 79° to 218°C), 23” (584mm) working depth surface, on right; optional on left
Optional Features:
  • Additional oven racks
  • Flanged deck mount legs
  • Celsius temperature dials
  • 6” (152mm) leveling swivel casters (4), w/ front locking
  • Stainless steel backguard, with removable stainless shelf
  • Stainless steel stands, with or without non-levelling casters, (specify), w/shelf for modular models, suffix T
  • 12" (305mm) plate hot top in lieu of two open burners, manual valve controlled w/ 18,000 Btuh/5.27 kW cast iron "H" style burner standard on left side
Specifications:
Gas restaurant series range with space saver oven. 23 5/8" (600mm) wide and 27" (686mm) deep work top surfaces. Total flame failure protection on all burners. Stainless steel front, sides and 5" (127mm) wide front rail. 6" (152mm) legs with adjustable feet. Four Starfire-Pro 2 piece, 26.000 Btuh/7.61 kW, cast open burners set in split cast iron ergonomic grates. Griddle or optional hot top with cast iron "H" style burners. Porcelain oven interior with ribbed oven bottom and door. "Keep cool" oven door handle. Heavy cast iron "H" 32,000 Btuh/ 9.38kW (natural gas) oven burner controlled by even bake, fast recovery snap action modulating oven thermostat. Modular top available in lieu of oven base model. Electrical Supply: GF models with 115V 60 Hz 1 phase, 0.1 amps; 6 ft. (1.8m) power cord with NEMA 5-15P plug. Power cord not supplied with 240V 50 Hz 1 phase 0.05 amps models. Gas input ratings shown for installations up to 2000 ft. (610m) above sea level. Please specify altitudes over 2000 ft. This product is not approved for residential use. NOTE: Ranges supplied with casters must be installed with an approved restraining device.

Options for Garland US Range GFE24-G24L

Electronic ignition voltage
Backguard and shelf options
Griddle control options
Oven options
Extended warranty
Gas type
Mounting options
What is included
  • Standard parts/labor warranty: One year limited parts and labor warranty, covers products purchased and installed in the USA only, standard
