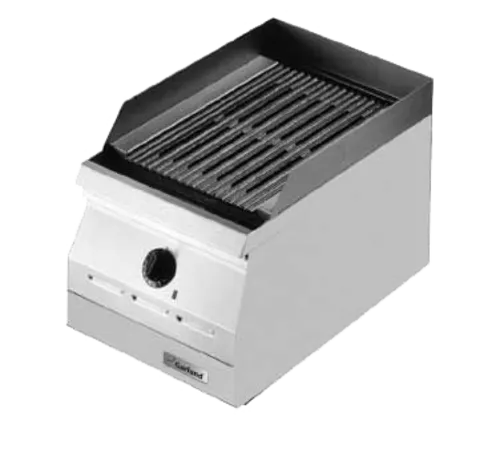

Garland US Range ED-30B Designer Series Charbroiler
MPN#: ED-30B
Free Freight?
Quick Ship
$5,435.00 /
Contact us for details
Calculate
Product Protection
Starting at
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range ED-30B Specifications
| Installation Type | Countertop |
|---|---|
| With Griddle | No |
| Heating Source | Radiant |
| Control Type | Recessed |
| Brand | Garland/US Range |
| Number of Burners | 2 |
| Certifications | NSF |
| Power Type | Electric |
| Controls | Infinite |
| Heat | Electric |
| Usage | Standard Duty |
| Voltage | 208 Volts |
| Width (in) | 30 |
| Height (in) | 13.75 |
| Depth (in) | 24 |
| Weight | 100.00 |
Additional Information on Garland US Range ED-30B
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range ED-30B Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range ED-30B Description
Designer Series Charbroiler, electric, 30" x 17-1/4" cooking area countertop, grate lift handle, infinite controls, grease drawer, stainless steel front and sides, 4" legs, 5.4kW, NSF, CSA (Garland)
Designer Series Charbroiler, electric, 30" x 17-1/4" cooking area countertop, grate lift handle, infinite controls, grease drawer, stainless steel front and sides, 4" legs, 5.4 kW, NSF, CSA, CE (Garland)
Standard Features:
Electric designer series broilers in three widths: models ED-15B, 15" (381mm) wide; ED-30B, 30" (706mm) wide and ED-42B, 42" (1067mm) wide. Each 12" (305mm)section controlled by an infinite switch. Designed as free standing or to be banked with other ED series equipment. 24" (610mm) deep x 13- 3/4" (349mm) high, easy clean design with stainless steel front and sides, concealed grease drawer behind lower hinged panel, grate lift handle and optional broiler splatter shield. Ribs in grate give distinct
Standard Features:
- Grate lift handle
- Heat-On indicator lamps
- Concealed grease drawer
- Stainless steel front and sides
- "CE" approved models have prefix EDU
- One-Year limited parts & labor warranty (USA & Canada only)
- Infinite switch controlled; one on ED-15B; two on ED-30B and three on ED-42B model
- Easy-clean design with recessed protected controls and ample space between elements and side splash walls
- Stainless steel back and bottom
- Broiler splatter guard, 15" (381mm), 30" (705mm) and 42" (1067mm) wide. S/S comes in 3 pieces which adds 10" to top section of broiler.
- 24" (610mm) wide nickel plated shelf to fit 30" (705mm) splatterguard or 36" (914mm) shelf to fit 42" (1067mm) splatter guard, please specify. Note : Stands are available see form # CS24/CSD
Electric designer series broilers in three widths: models ED-15B, 15" (381mm) wide; ED-30B, 30" (706mm) wide and ED-42B, 42" (1067mm) wide. Each 12" (305mm)section controlled by an infinite switch. Designed as free standing or to be banked with other ED series equipment. 24" (610mm) deep x 13- 3/4" (349mm) high, easy clean design with stainless steel front and sides, concealed grease drawer behind lower hinged panel, grate lift handle and optional broiler splatter shield. Ribs in grate give distinct
Garland US Range ED-30B Accessories
Garland US Range ED-30B Reviews
There are no reviews yet for this product.
Questions and Answers
