Beverage Air UCRD93AHC-4 93'' 3 Section Undercounter Refrigerator with 1 Right Hinged Solid Door 4 Drawers and Side / Rear Breathing Compressor
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air UCRD93AHC-4 Specifications
Access Type | Doors and Drawers |
---|---|
Hinge Location | Right |
Door Hinge | Right Hinged |
Compressor Style | Side / Rear Breathing |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Number of Doors | 1 |
Made in | USA |
Certifications | cULus |
Number of Shelves | 2 |
Refrigeration System | Self-contained |
Capacity | 31 - 46 cu. ft. |
Door Type | Solid |
Number of Drawers | 4 |
Sections | 3 |
Style | Counter Height |
Voltage | 115 Volts |
Width (in) | 93 |
Height (in) | 34.5 |
Depth (in) | 32 |
Weight | 442.00 |
Additional Information on Beverage Air UCRD93AHC-4
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air UCRD93AHC-4 Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air UCRD93AHC-4 Description
The Beverage Air UCRD93AHC-4 Undercounter Refrigerator provides restaurant owners with a space-saving solution that will make full use of undercounter space.The 29.7 cu. ft. this refrigerator offers is plenty of capacity for a unit of its size.
The drawers feature painted aluminum handles for quick access. Stainless steel drawer frames add to durability while telescoping drawer slides allow for effortless gliding. In a busy commercial environment, you can expect the drawers to be accessed quite aggressively. To make sure drawers don’t pull out completely and spill items onto the floor, the drawer slides feature a locking mechanism. The drawers maintain a tight seal to keep in the cold thanks to magnetic gaskets.
This reach-in section is easy to access through a stainless steel door with a self-closing feature that saves on electrical costs. Inside, two epoxy-coated wire shelves are included to maximize the usable space. To keep the door’s seal airtight a magnetic door gasket is included. When workers need to access multiple items the door can be opened to 120˚ to activate the stay-open feature. This allows users to use both hands.
On the right side of this unit is a self-contained refrigeration system featuring a ⅓ HP compressor producing 2629 BTU/hr of cooling. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Full electric controls keep the temperature between 36ºF and 38ºF while consuming as little electricity as possible. This unit defrosts automatically with a non-electric system to eliminate downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.
6” casters are standard equipment and provide the unit with versatility for easy mobility when it needs to be moved for cleaning or maintenance. An eight-foot power cord with a NEMA 5-15P plug set is wired at the factory to connect this unit to a standard outlet providing 115v/60/1-ph power at 5.0 amps.
Standard Features:
- UCRD Series - 32” Depth
- Versatile, compact (32” depth) models for under the counter refrigerated storage of food products. Working height is 34 1/2”.
- Cabinet Construction
- Cabinet back and bottom are galvanized steel.
- A plug-in type vinyl magnetic gasket is attached to each door for positive seal.
- Interior liner is made of corrosion resistant aluminum. Interior thermometer is standard.
- Heavy duty construction includes exterior stainless steel on front, sides, door(s) and grille.
- Cabinet insulation is CFC and HCFC-free foamed-in-place polyurethane of two-inch minimum thickness. 6” high casters are standard, 2 include brakes.
- In cabinets with doors and drawers, doors are mounted to face of cabinet on cartridge-style hinges permitting them to self close under their own weight. Hinges also allow doors to stay open 120° and permit easy door removal for service and cleaning if required.
- Drawer Construction
- Heavy-duty pan divider supports are supplied.
- Foodservice pans for drawers are not included.
- Slides have locking mechanism to prevent from drawers being pulled off of cabinets.

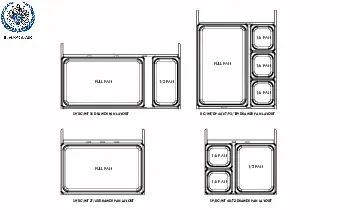

- Upper pull-out drawers accommodate 6” deep pans. Lower pull-out drawers accommodate two 4” deep pans.
- Snap-type vinyl magnetic gasket is attached to each drawer for positive seal. Drawers extend 23” (when opened).
- Drawer frames are constructed of heavy-duty stainless steel and are supported on heavy-duty telescoping drawer slides for maximum support of stored food products.
- Refrigeration System
- Automatic (non-electric) condensate evaporator is provided.
- Refrigeration system utilizes R134a refrigerant governed by a capillary tube system.
- Interior forced-air system with high humidity evaporator coils, provides the ideal environment for food preservation.
