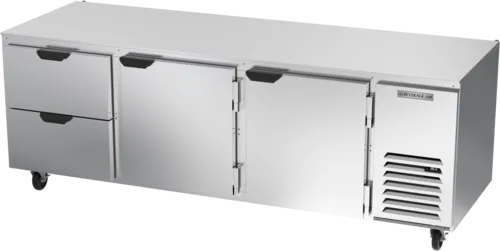

Beverage Air UCRD93AHC-2 93'' 3 Section Undercounter Refrigerator with 2 Right Hinged Solid Doors 2 Drawers and Side / Rear Breathing Compressor
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air UCRD93AHC-2 Specifications
| Access Type | Doors and Drawers |
|---|---|
| Hinge Location | Right |
| Door Hinge | Right Hinged |
| Compressor Style | Side / Rear Breathing |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Certifications | cULus |
| Number of Doors | 2 |
| Number of Shelves | 4 |
| Refrigeration System | Self-contained |
| Capacity | 31 - 46 cu. ft. |
| Door Type | Solid |
| Number of Drawers | 2 |
| Sections | 3 |
| Style | Counter Height |
| Voltage | 115 Volts |
| Width (in) | 93 |
| Height (in) | 34.5 |
| Depth (in) | 32.88 |
| Weight | 442.00 |
Additional Information on Beverage Air UCRD93AHC-2
manual.pdf
warranty-sheet.pdf
caster-template.pdf
pan-configurations.pdf
warranty-update.pdf
beverage-air-ucrd93ahc-2.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air UCRD93AHC-2 Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air UCRD93AHC-2 Description
A compact refrigerator like the UCRD93AHC-2 Undercounter Refrigerator from Beverage Air provides an easy place to access items that are needed quickly while freeing up users from needing to walk all the way to a large back-of-house refrigerator. The 29.7 cu. ft. provided by this refrigerator is easy to access and stays out of the way.
The reach-in cabinets each have two epoxy-coated shelves to organize items and maximize the usability of the space. Two sturdy stainless steel doors provide convenient access and are self-closing to reduce power consumption. Users can use both hands when pulling multiple items out of the refrigerator thanks to the stay-open feature that is activated when the doors are opened to 120˚. To save on power costs, the doors are self-closing and feature magnetic gaskets to provide a secure seal.
With two drawers this refrigerator allows users to quickly access items with easy to grasp painted aluminum handles. The drawers are supported by stainless steel drawer frames and telescoping slides. To make sure drawers aren’t inadvertently pulled out of the cabinet, Beverage Air includes a locking mechanism on their drawer slides. Each drawer has a magnetic gasket to make sure it is closed securely to keep cool air in.
On the right side of this unit is a self-contained refrigeration system featuring a ⅓ HP compressor producing 2629 BTU/hr of cooling. The epoxy-coated evaporator in this model makes sure that a temperature between 36ºF and 38ºF efficiently and reliably maintained. Full electronic controls keep power consumption and stress on the refrigeration system to a minimum. To keep the refrigeration system running as efficiently as possible while minimizing downtime an automatic non-electric defrost cycle is used by this unit. R290 Hydrocarbon refrigerant is used for efficient cooling that has a minimal negative impact on the environment.
The unit can be configured with 3” casters or 6” legs at no extra cost but come standard with 6” casters allowing it to be easily moved into and out of place for cleaning. An 8-foot power cable comes from the factory prewired with a NEMA 5-15P plug set for use with standard 115v/60/1-ph power.
Standard Features:
- Cabinet Construction
- Full electronic control
- 6” Casters, two (2) with brakes standard
- Easy door removal for service and cleaning
- Painted aluminum door and drawer handle(s)
- Durable sub-top 1/2” insulated for added durability
- Interior liner is made of corrosion resistant aluminum
- Two epoxy-coated steel wire shelves standard per section
- Door openings include low wattage, anti-condensate heaters
- Self-closing doors with 120˚ Stay-open feature, on cam-lift hinges
- Refrigerators operates at 36º-38ºF for optimum food preservation
- Magnetic gasket attached to each door and drawer for positive seal
- Stainless steel drawer frames supported on telescoping drawer slides
- Stainless steel front, sides, top, door(s) and drawer(s), (galvanized back & bottom)
- Drawer slides include locking mechanism that prevents drawer from being inadvertently pulled off cabinet
- Refrigeration System
- Epoxy coated evaporator coil
- System is serviceable from front
- Automatic, non-electric evaporator
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- 6” Legs
- Remote
- 3” Casters
- Low profile casters
- Stainless steel interior
- Stainless steel back and grille
- Door and combination models available
