Beverage Air SPE36HC-15M-STL 36'' 2 Door Counter Height Mega Top Refrigerated Sandwich / Salad Prep Table
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air SPE36HC-15M-STL Specifications
Refrigerator Capacity | 10.01 cu. ft |
---|---|
Nominal Width | 36 Inches |
Access Type | Doors |
Top Type | Mega Top |
Compressor Style | Side / Rear Breathing |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Certifications | cULus |
Number of Doors | 2 |
Capacity | 4 - 11 cu. ft. |
Sections | 2 |
Style | Counter Height |
Voltage | 115 Volts |
Width (in) | 36 |
Height (in) | 59.75 |
Depth (in) | 38.38 |
Weight | 274.00 |

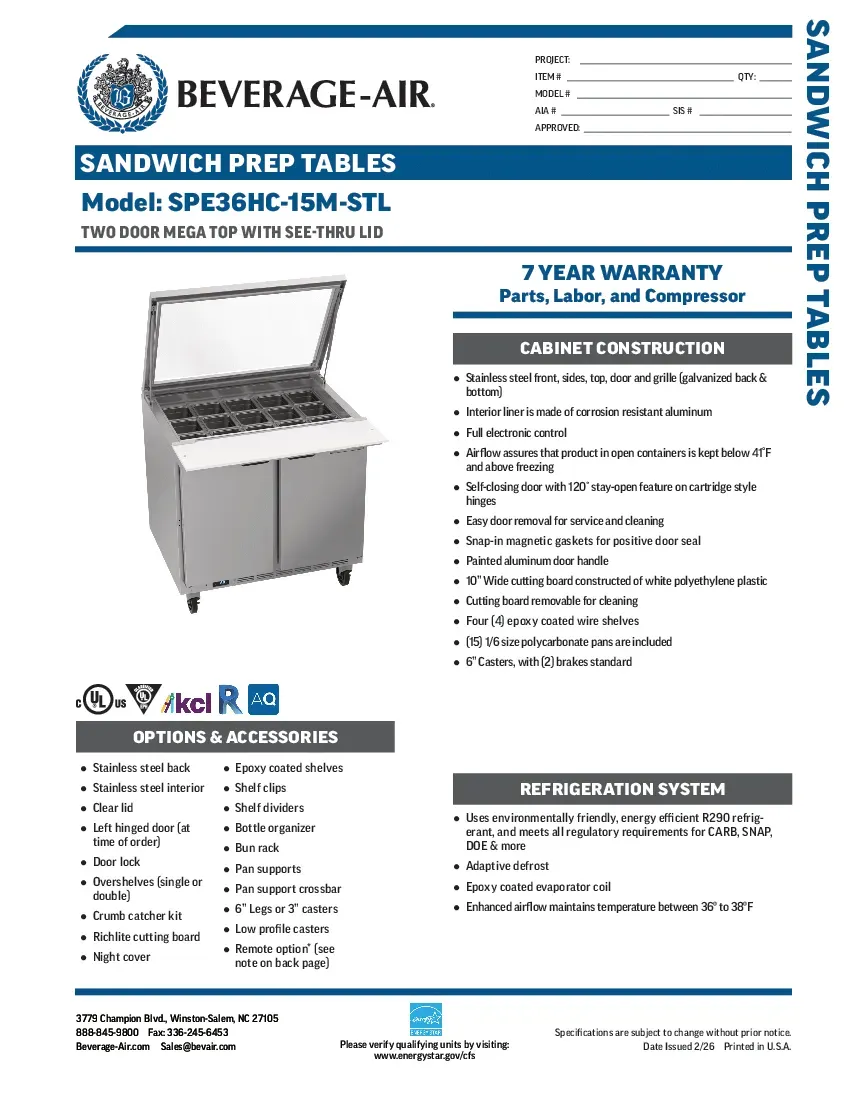

Additional Information on Beverage Air SPE36HC-15M-STL
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air SPE36HC-15M-STL Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air SPE36HC-15M-STL Description
Mega Top Refrigerated Counter, with see thru-lids, two-section, 36"W, 10.01 cu. ft., (2) doors, (4) epoxy-coated wire shelves (2 per door), stainless steel top with opening for (15) 1/6 size pans, 10" cutting board, stainless steel exterior, aluminum interior, rear-mounted self-contained refrigeration, (pans furnished are 4" deep, tops will accommodate 6" deep pans) R290 Hydrocarbon refrigerant, 1/6 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAThe Beverage Air SPE36HC-15M-STL Elite Series™ Mega Top Refrigerated Counter is a spacious prep table featuring a clear lid that allows customers to see the ingredients kept inside the 15 1/6 pans. This unit's reach-in sections 10.01 cu. ft. of refrigeration that is conveniently within arms reach. Salads and sandwiches are easy to work on thanks to this prep table’s polyethylene cutting board. The cutting board is 10” deep and is as wide as the unit itself to provide plenty of space. Fifteen 4" deep 1/6 size pans are included for ingredients in the cold bunker.
This refrigerator has self-closing doors to prevent excessive power draw while maintaining the temperature inside. Four epoxy-coated shelves are included with the unit to provide users with storage options. In a busy kitchen, users will often need to access multiple items from a refrigerator. To simplify this the doors can be opened to 120˚ to remain open. When the doors are closed magnetic gaskets make sure the seal is completely airtight.
This refrigerated prep station features a bottom-mounted self-contained refrigeration system with a ⅙ HP compressor producing 1140 BTU/hr of cooling. The refrigeration system features an epoxy-coated evaporator coil to make sure this unit will provide efficient cooling for many years. A temperature between 36ºF and 38ºF is maintained efficiently thanks to the full electronic controls on this model. A non-electric automatic defrost cycle keeps the refrigerator system running efficiently and reliably without downtime. Eco-friendly R290 refrigerant is used by this unit to meet all environmental regulations.
This refrigerator is easy to move into and out of place thanks to the 6” casters. When in use the locking casters at the front prevent it from moving about. The unit comes prewired from the factory with an 8-foot power cord with a NEMA 5-15P plug set to easily connect it to a standard outlet with 115v/60/1-ph power.
This Beverage Air SPE36HC-15M-STL Elite Series? Mega Top Refrigerated Counter gives you easy access to your commonly used refrigerated items. This worktable is 37.63 inches tall, 36 inches wide, and 37.88 inches deep.
- SPE Elite Series - Mega Top with See-Thru Lid
- Fifty percent greater pan capacity than the all around standard prep table.
- Features enhanced refrigeration system and new and improved grille system for better airflow and less temperature gradient.
- Improved design provides better airflow management and uniform temperature distribution throughout the cabinet. Pans are cooled from the bottom, eliminating the necessity of air blanket.
- Airflow assures that product in open containers is kept below 41°F and above freezing. This translates into increased product shelf life, higher quality food, better food appearance, fresher product and a reduction of bacteria build-up to combat food-borne illnesses.
- Cabinet Construction
- Cabinet back and bottom are constructed of galvanized steel.
- Interior liner is made of aluminum for superior resistance to corrosion.
- Six-inch casters, 2 with brakes, are standard. Legs are available as an option.
- A plug in type vinyl magnetic gasket is attached to each door for positive seal.
- Removable hoods and insulated lid assemblies are made of matching stainless steel.
- Cabinet insulation is CFC free foamed-in-place polyurethane of two-inch minimum thickness.
- Exterior construction includes heavy-duty stainless steel finish on front, sides, top, door(s) and grille.
- Cutting board supplied with cabinet is 10” wide constructed of high-density white polyethylene plastic. It is readily removable for cleaning.
- Two epoxy-coated steel wire shelves per section are supplied as standard. Pans furnished are 4” deep and made of polycarbonate plastic.
- Doors are mounted to face of cabinet on cartridge style hinges permitting them to self close under their own weight. Hinges also allow doors to stay open 120° and permit easy door removal for service and cleaning if required.
- Door handle is made from extruded aluminum with a black anodized finish. It is contoured to permit easy opening of doors with fingers from both top and bottom of handle.
- See-Thru Lid Construction
- Features 1-piece hinge with hydraulic lift. Self-closing lid features variable set points for height variations.
- Note: If sides are exposed to customer, side guards are required.
- Refrigeration System
- More robust refrigeration system provides added capacity and efficiency.
- Automatic condensate evaporator is provided to eliminate the need of floor drains.
- Recirculated, forced air from evaporator is moved under pans, which are recessed 2” from top of cabinet.
- Forced air over the condenser is drawn through grille under door as well as the back and bottom of cabinet.
- Systems are designed using CFC free R134a refrigerant and capillary tube between condenser and evaporator.
- Available Options
- Night covers
- Shelf dividers
- Dressing holder
- Crumb catchers
- Solid/tubular tray slides
- Composite cutting boards
- Overshelf-side guard kit with LED lighting
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
