Beverage Air HF1HC-1HS 26'' 24.0 cu. ft. Top Mounted 1 Section Solid Half Door Reach-In Freezer
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air HF1HC-1HS Specifications
Freezer Capacity | 24 cu. ft. |
---|---|
Door Size | Half |
Hinge Location | Right |
Construction | Stainless Steel and Aluminum |
Half Doors | Yes |
Brand | Beverage Air |
Refrigerant Type | R-290 |
Made in | USA |
Certifications | cULus |
Number of Doors | 2 |
Refrigeration System | Self-contained |
Capacity | 11 - 30 cu. ft. |
Compressor Location | Top Mounted |
Door Type | Solid |
Sections | 1 |
Temperature Range | 0 Degrees F |
Voltage | 115 Volts |
Width (in) | 26 |
Height (in) | 85 |
Depth (in) | 33.63 |
Weight | 346.00 |

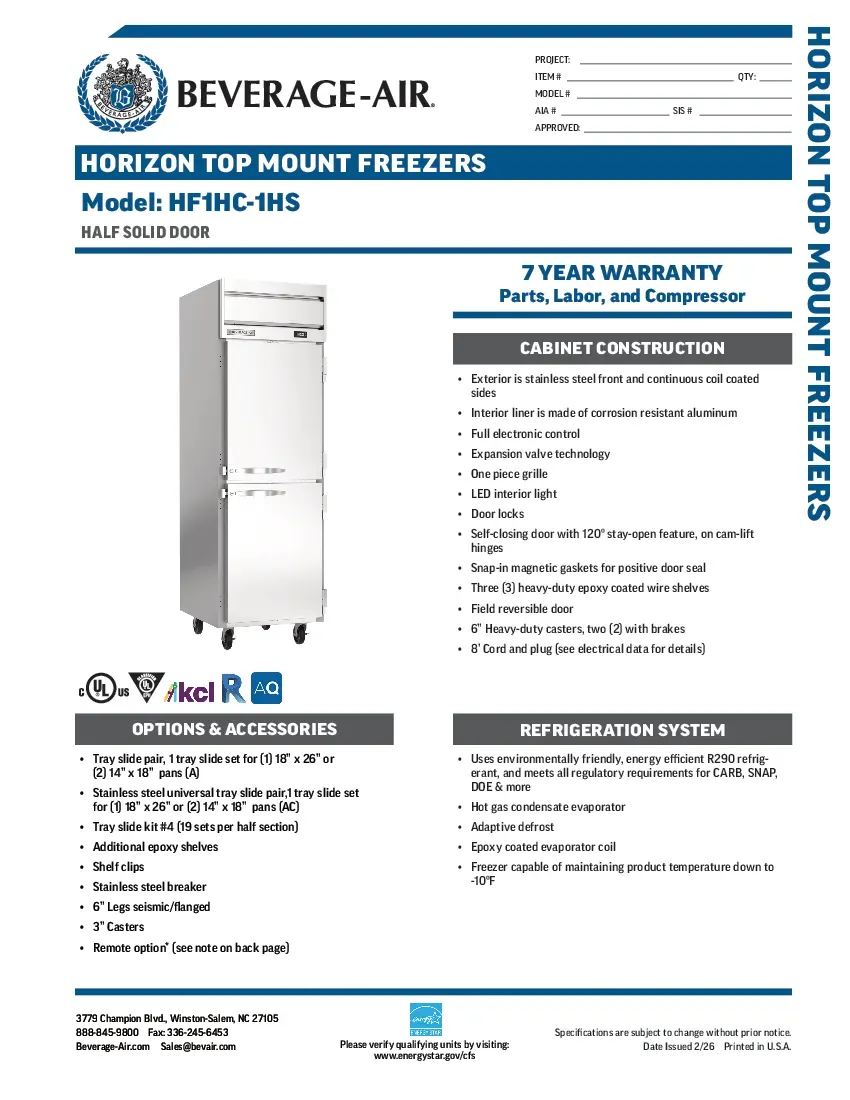

Additional Information on Beverage Air HF1HC-1HS
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air HF1HC-1HS Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air HF1HC-1HS Description
Horizon Series Freezer, reach-in, one-section, 21.06 cu. ft., (2) right-hand hinged half solid doors with locks, (3) adjustable shelves, electronic control, LED interior lighting, digital display, expansion valve technology, automatic defrost, top-mounted self-contained refrigeration, stainless steel front, gray painted sides, aluminum interior, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USAThe Beverage Air HF1HC-1HS Horizon Series Freezer is a highly dependable freezer with two doors designed for back-of-house storage. WIth 21.06 cu. ft. of frozen storage, this unit has a lot to offer.
Three heavy-duty shelves made from epoxy-coated wire offer plenty of space for storing multiple items. The interiors are lit with LED lighting that lasts longer than other forms of lighting and emits little to no heat. The aluminum interior distributes the light evenly and provides a corrosion-resistant surface that is easy to clean and maintain. The doors on this unit provide easy access to items with anti-microbial handles that provide an additional layer of sanitary protection. Doors are self-closing to make sure they are always completely closed which saves on power costs. The doors also have a stay-open feature that is activated when they are opened to 120º and allows users to easily handle multiple items with both their hands.
The top-mounted refrigeration system keeps components far from dust and debris on the floor and allows heat to naturally exit the unit through convection. At the heart of the refrigeration unit is a ¾ HP compressor providing 1927 BTU/hr of cooling. Beverage Air includes an epoxy coated-coated evaporator coil for durability and reliability while reducing downtime due to maintenance. The temperature inside the sections is maintained below 0ºF efficiently by fully electronic controls. Environmentally-friendly R290 refrigerant provides efficient cooling while meeting all environmental regulations. Automatic electric defrosting makes sure there’s no downtime while keeping the inside from frosting over.
The unit conveniently comes with 6” casters from the factory, this allows it to be easily moved into and out of place. The front casters are locking which keeps it in place when it’s in use. Power is supplied to the unit with a factory wired 8-foot power cord with a NEMA 5-15P plug set to connect it to a standard outlet that provides 115v/60/1-ph power at 11.0 amps.
The Beverage Air HF1HC-1HS Horizon Series Freezer is an essential asset for any busy kitchen. This item is 78.50 inches tall, 26 inches wide, and 32 inches deep.
- Cabinet Construction
- Interior - Aluminum interior with curved corners standard.
- Insulation - 2” foamed-in-place CFC and HCFC-free polyurethane insulation.
- Exterior - Stainless steel exterior front and gray painted sides standard (Additional exterior finish options available - see right).
- Electronic Control
- Electronic thermostat with manual defrost button provides a digital display of cabinet temperatures, which includes status indicators and key pad for any necessary temperature adjustments.
- Refrigeration System
- Expansion Valve technology.
- Automatic evaporation system for energy efficiency.
- Automatic defrost system is fully automatic, time-initiated and temperature terminated operation.
- Top mount balanced refrigeration system with evaporator positioned out of the food zone to maximize capacity.
- Factory engineered, self-contained refrigeration system uses environmentally friendly (CFC and HCFC-free) R404A refrigerant.
- Unique down draft airflow system ensures uniform distribution of airflow throughout the entire cabinet to ensure even product temperatures; maintains product temperatures at or near –10°F.
- Doors
- Choose from solid door or half-solid door configuration.
- Anti-microbial door handles and door locks are standard.
- Plug-in magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Field reversible doors and cam lift hinges standard. Positive seal self-closing door(s) with 120° stay open feature.
- Shelving
- Shelves are adjustable in ½” increments. Four (4) interior pan slide kits available for field installation (see catalog).
- Three (3) heavy duty epoxy coated wire shelves per section standard. Four (4) shelf clips included per shelf (field installed).
- Model Features
- Incandescent interior light.
- Certified to 100°F ambient.
- UL-EPH and CUL for open food product.
- ENERGY STAR® Qualified - See applicable model list at right.
- Epoxy coated evaporator to eliminate the potential of corrosion.
- 6” heavy-duty casters included, two with brakes. HFPS Spec Series standard with 6” legs.
- Cord and plug pre-wired – 115/60/1 phase. Freezers powered by 115/208-230 volts are designed for field wiring (requires 4-wire electrical circuit, hard-wired).
- 1 Great Design, 4 Finish Options
- HFP Series: S/S front, S/S sides, aluminum interior
- HFS Series: S/S front, gray painted sides, s/s interior
- HFPS Spec Series: Complete S/S exterior and interior
- HF Standard Series: S/S front, gray painted sides, aluminum interior
NOTE! This is a general product line video and does not necessarily reflect the listed model.
