Beverage Air FB23HC-1G 27.25'' 22.5 cu. ft. Bottom Mounted 1 Section Glass Door Reach-In Freezer

SKU#: FB23HC-1G
Made in USA
Free Freight?
Quick Ship
$6,321.65
$5,516.29
or enjoy small payments $118.55/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 6322
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air FB23HC-1G Specifications

Freezer Capacity22.5 cu. ft.
Half DoorsNo
Hinge LocationRight
ConstructionStainless Steel and Aluminum
BrandBeverage Air
Refrigerant TypeR-290
Number of Doors1
Made inUSA
CertificationscULus
Refrigeration SystemSelf-contained
Capacity11 - 30 cu. ft.
Compressor LocationBottom Mounted
Door TypeGlass
Sections1
Temperature Range0 Degrees F
Voltage115 Volts
Width (in)27.25
Height (in)84.25
Depth (in)33.75
Weight404.00

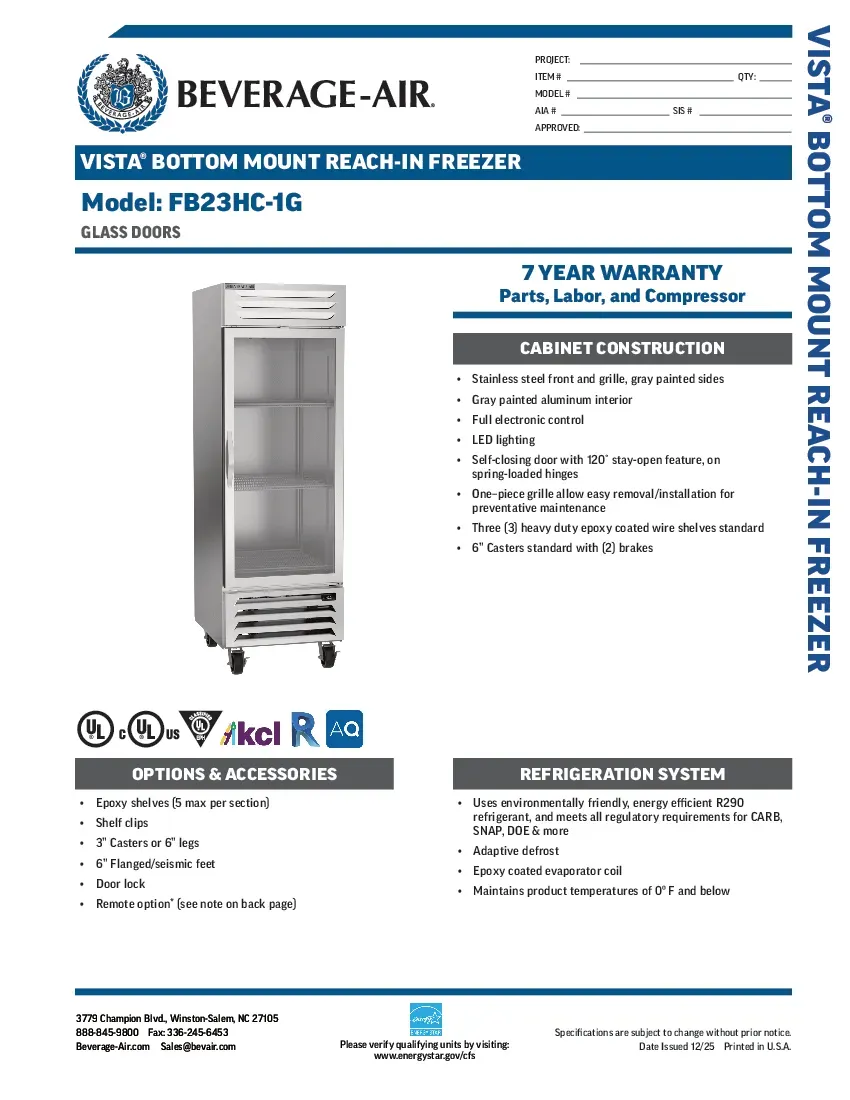

Additional Information on Beverage Air FB23HC-1G

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air FB23HC-1G Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air FB23HC-1G Description

Vista® Freezer, reach-in, one-section, 27-1/4"W, 84-1/8"H, 23.32 cu. ft., electronic control, (1) hinged glass door, (3) adjustable wire shelves, LED interior lighting, adaptive defrost, gray painted aluminum interior, stainless steel front, gray coated steel sides, bottom-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

Whether it's for back-of-house or merchandising, the Beverage Air FB23HC-1G Freezer is an excellent choice. With 7.5 cu. ft. of freezer storage, this unit will keep food safe with a minimal footprint.

Three heavy-duty shelves made from epoxy-coated wire offer plenty of space for storing multiple items. The interiors are lit with LED lighting that lasts longer than other forms of lighting and emits little to no heat. The painted aluminum interiors are painted grey to distribute the light evenly and provides a corrosion-resistant surface. The door is easily opened with an anti-microbial handle and is self-closing to prevent it from being left open accidentally. When accessing multiple items users can open the door to 120º and it will remain open allowing them to use both hands.

Cooling is provided by a bottom-mounted self-contained refrigeration system with a ¾ HP compressor offering 1927 BTU/hr of cooling potential. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided reliably with minimal downtime. Full electric control automatically maintains a temperature below 0ºF while consuming as little power as possible. The automatic electric defrost cycle keeps the unit running efficiently without downtime. R290 refrigerant is eco-friendly and provides efficient cooling while meeting all regulations.

The unit can be configured with 3” casters or 6” legs at no extra cost but come standard with 6” casters allowing it to be easily moved into and out of place for cleaning. An 8-foot power cable comes from the factory prewired with a NEMA 5-15P plug set for use with standard 115v/60/1-ph power.

Beverage Air FB23HC-1G 27.25'' 22.5 cu. ft. Bottom Mounted 1 Section Glass Door Stainless Steel and Aluminum Reach-In Freezer

Options for Beverage Air FB23HC-1G

Glass door lock
Refrigeration
Tray slides
What is included
  • Voltage: 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P
  • Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
Door hinging
Legs & casters

Beverage Air FB23HC-1G Accessories

Beverage Air 00C31-055A Legs 00C31-055A
$196.11
Beverage Air 403-900D-02 Shelf 403-900D-02
$78.51
Beverage Air 403-169A Shelf clip 403-169A
$1.97
