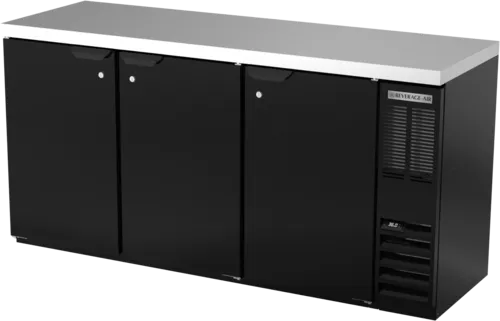

Beverage Air BB72HC-1-B-27 Black 3 Solid Door Refrigerated Back Bar Storage Cabinet, 115 Volts

Refrigerated Back Bar Storage Cabinet, three-section, 72"W, 36" H, 19.92 cu. ft. capacity, (3) solid doors with locks, snap-in door gasket, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, LED interior lighting with manual on/off switch, 2" stainless steel top, black exterior finish, galvanized interior with stainless steel floor, right-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The Beverage Air BB72HC-1-B-27 Refrigerated Back Bar Storage Cabinet features a black exterior finish giving it a classy look that is easy to maintain. This unit is designed for use in a commercial bar and will reliably serve for several years. This refrigerator offers 19.92 cu. ft. of cold storage and can hold three ½ kegs.

The reach-in sections each have two epoxy-coated shelves to organize items and maximize the usability of the space. The self-closing doors provide convenient access that can reduce power consumption. Users will find the stay-open feature handy since it will free up both their hands to access multiple items easily. Airtight seals are ensured by magnetic door gaskets. The interior is kept evenly cooled with the forced-air refrigeration system. This also allows items to be cooled down quickly if necessary.

This back bar refrigerator has a side-mounted self-contained refrigeration system that provides efficient cooling with a ⅓ HP compressor that produces 1942 BTU/hr of cooling. The refrigeration system can be on the left or right based on your installation needs. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Full electric control will keep the temperature between 36ºF and 38ºF while consuming as little power as possible. Defrosting is accomplished automatically with a non-electric system, this eliminates downtime while keeping the interior free of frost. The refrigerant used is R290, an environmentally-friendly hydrocarbon that meets all environmental regulations and has a minimal negative impact on the atmosphere.’

To connect this back bar refrigerator to a standard 115v/60/1-ph power outlet an 8’ power cable comes pre-wired from the factory with a NEMA 5-15P plug set.

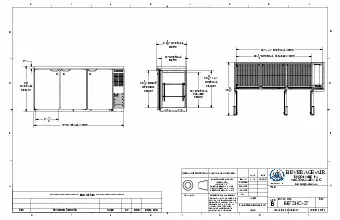

This convenient Beverage Air BB72HC-1-B-27 Refrigerated Back Bar Storage Cabinet provides the perfect place for all your bar essentials. This backbar storage cabinet is 36 inches tall, 72 inches wide, and 23.50 inches deep.

• BB 23” Base Series - Back Bar Refrigerator
  • Shallow depth, back bar, self-contained refrigerators come in two widths of 48” and 72.”
  • Two heights include 34” with standard galvanized steel top for under shelf application and 36” when adapted with a stainless steel top. Depth is 23” from face of door to back of cabinet. Handle projects 1/2.” Solid door models come standard with locks.
• Cabinet Construction
  • Interior, incandescent, lighting is standard with manual on/off switch.
  • Doors are self-closing and include magnetic gaskets for positive seal.
  • Standard interior construction utilizes galvanized steel walls and ceiling.
  • Reinforced floor and door sills are made from heavy-duty stainless steel to provide long lasting service.
  • Standard, cabinet exterior construction includes attractive, wear resistant vinyl on steel in black exterior finish.
  • Foamed-in-place CFC and HCFC-free polyurethane insulation enhances the structural strength of the cabinet and helps increase energy efficiency.
• Refrigeration System
  • Condensate elimination is automatic and non-electric.
  • Forced air is projected the length of cabinet across the ceiling.
  • Remote refrigeration models include expansion valve installed.
  • Refrigeration is fully accessible behind grille to right side of cabinet.
  • Evaporator located above condensing unit permits full use of interior spaces.
  • Refrigeration system uses R134a refrigerant, which is CFC and HCFC-free for compliance with environmental safety concerns.
• Special Features
  • Keg storage is maximized in lieu of shelf storage when required.
• Electrical Connection
  • Units wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. 8’ long cord and plug set included.
