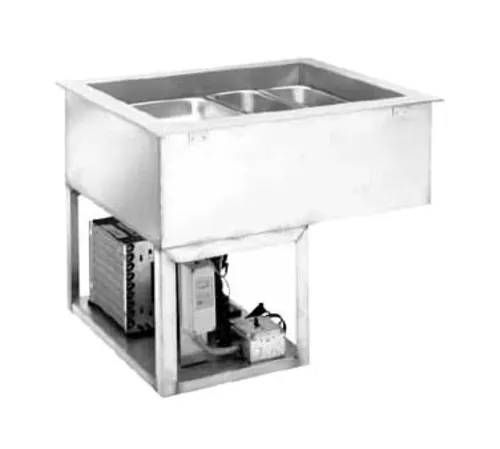

Wells RCP-7600 Cold Food Unit
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Wells RCP-7600 Specifications
| Number of Pans | 6 |
|---|---|
| Construction | Stainless Steel |
| Brand | Wells |
| Made in | USA |
| Certifications | 5-20P |
| Size | 6-pans |
| Compressor Location | Built-In |
| Style | Recessed |
| Voltage | 115 Volts |
| Width (in) | 87.75 |
| Height (in) | 26.13 |
| Depth (in) | 27.13 |
| Weight | 285 |
Additional Information on Wells RCP-7600
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Wells RCP-7600 Certifications
5-20P
Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Wells RCP-7600 Description
Drop-In Cold Food Well, self-contained refrigeration, (6) 12" x 20" pan capacity, on/off switch with individual thermostatic controls, insulated pan, 3" recessed top edge, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, 3/4 HP, NEMA 5-20P, NSF, cULus
- Self-contained drop-in design
- 1” drains for ease of cleaning
- Limited 1 year parts & labor warranty
- Type 134A or 404A CFC free refrigerant
- 3” recessed top edge to comply with NFS-7 requirements
- Recessed ledge for pan support and colder, fresher products
- Hold standard 12” by 20” food pans and fractional sized pans
- Stainless steel top and liner for maximum strength and durability
- On-off switch with 8 ft cord & plug for ease of installation and operation
- Quick & easy service with sight glass, service valves, filter/dryer and receiver
- Fully insulated, CFC free, foamed-in-place insulation keeps food cold while saving energy
- 50 cycle
- 220/230/240V
- Remote on/off switch
- 5-year compressor warranty
- 2nd year parts & labor warranty
- Adaptor bars for fractional sized pans
- Remote models without compressors or condensing units
- Special condenser orientation and compressor rack position
- Remote models (Includes compressor and condensing units and up to 20’ leads)
- Perforated bottom strainer plate conveniently holds ice above drain to prevent clogging
