Wells RCP-100 Cold Food Unit
MPN#: RCP-100
Free Freight?
Quick Ship
$7,384.00
Calculate
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
Wells RCP-100 Specifications
| Number of Pans | 1 |
|---|---|
| Construction | Stainless Steel |
| Brand | Wells |
| Made in | USA |
| Certifications | 5-15P |
| Size | 1-pan |
| Compressor Location | Built-In |
| Style | Recessed |
| Voltage | 115 Volts |
| Width (in) | 17.38 |
| Height (in) | 24.5 |
| Depth (in) | 25.38 |
| Weight | 89 |
Additional Information on Wells RCP-100
warrantysheet.pdf
installsheet.pdf
middlebyfinancialflyer.pdf

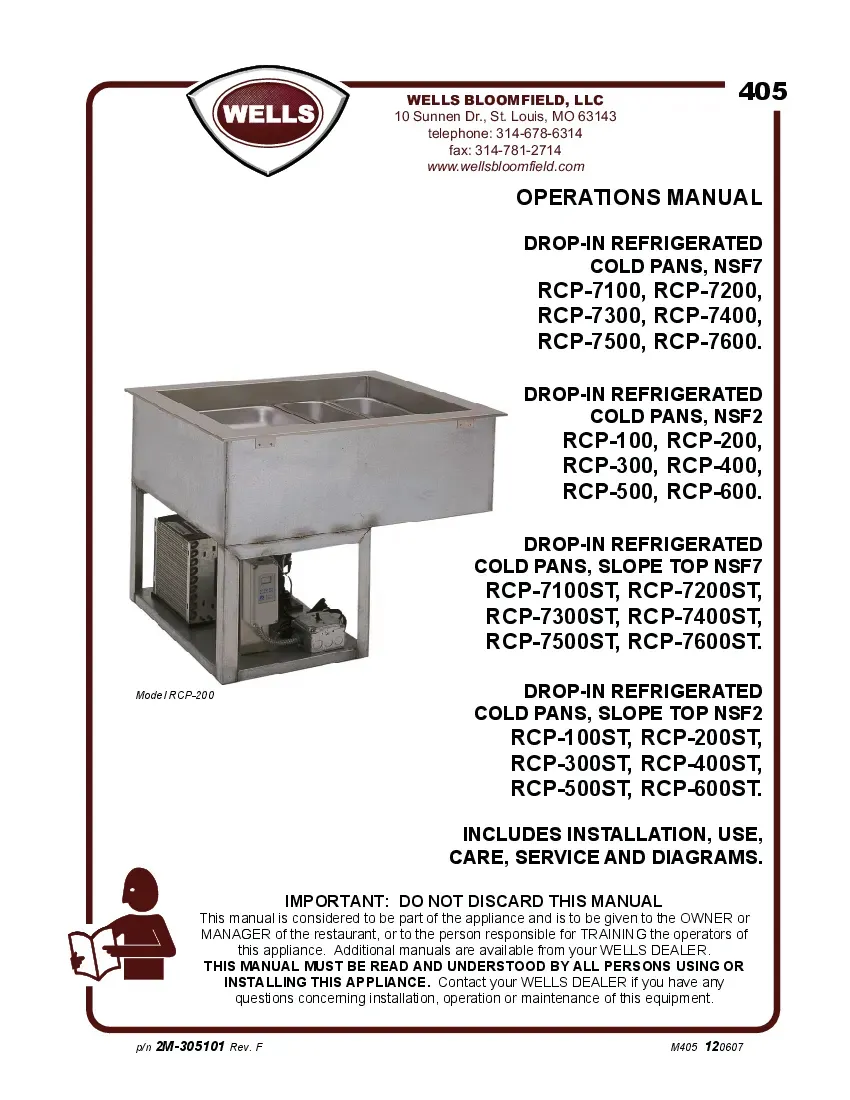

ownersmanual.pdf

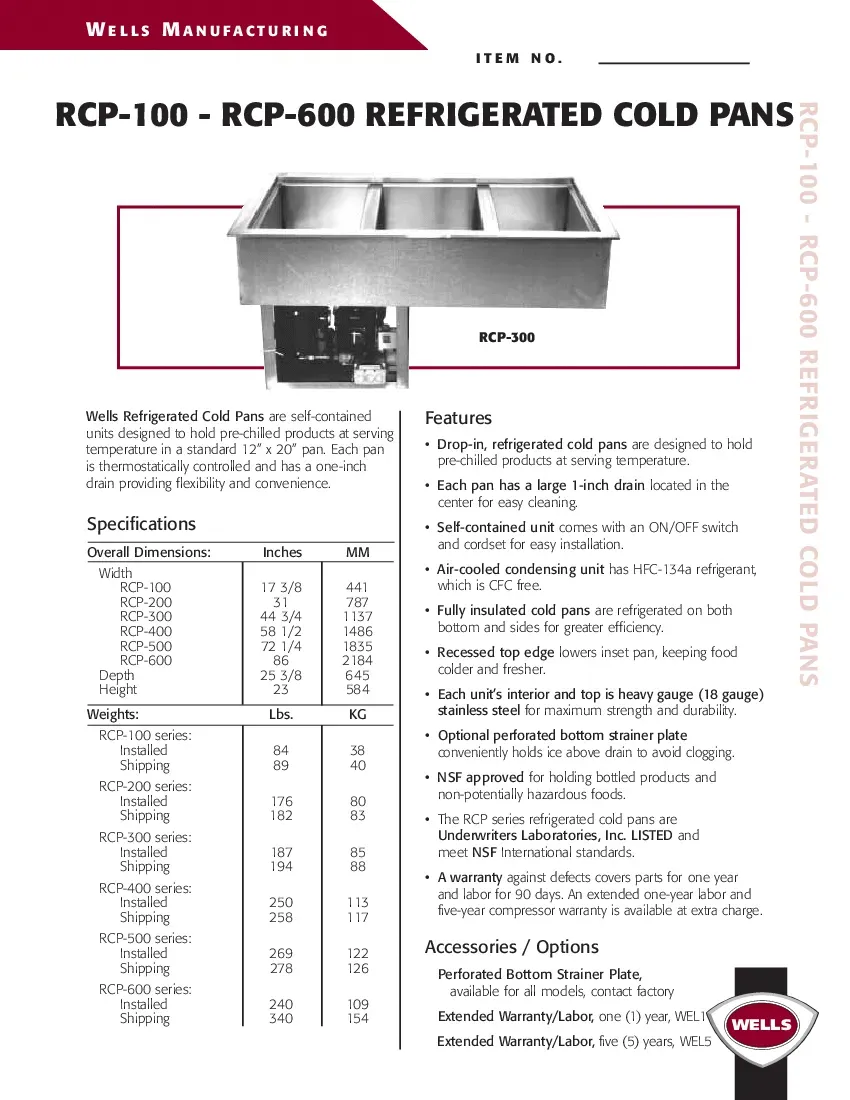

wells-rcp-100specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Wells RCP-100 Certifications
5-15P
Two-pole with ground pin plug
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Wells RCP-100 Description

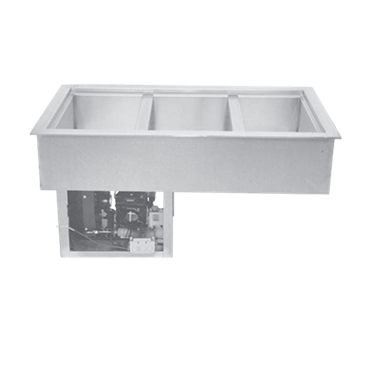

Cold Food Well Unit, drop-in, self-contained refrigeration, (1) 12" x 20" pan capacity, on/off switch with thermostatic controls, insulated pan, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-134A refrigerant, 1/4 HP, 115v/60/1-ph, 5.5 amps, NEMA 5-15P, NSF, cULus
Drop-In Cold Food Well, self-contained refrigeration, (1) 12" x 20" pan capacity, on/off switch with thermostatic controls, insulated pan, 1" drain, stainless steel inner liner, top & flange, steel exterior body, R-134A refrigerant, 115v/60/1-ph, 5.5 amps, 1/4 HP, NEMA 5-15P, NSF, cULus
Standard Features:
- Meets NSF Standard 2
- Self-contained drop-in design
- 1” drains for ease of cleaning
- Limited 1 year parts and labor warranty
- Type 134A or 404A CFC free refrigerant
- Recessed ledge for pan support and colder, fresher products
- Hold standard 12” by 20” food pans and fractional sized pans
- Stainless steel top and liner for maximum strength and durability
- On-off switch with 8 ft. cord & plug for ease of installation and operation
- Quick & easy service with sight glass, service valves, filter/dryer and receiver
- Fully insulated, CFC free, foamed-in-place insulation keeps food cold while saving energy
- 50 cycle
- 220/230/240V
- Remote on/off switch
- 5-year compressor warranty
- 2nd year parts & labor warranty
- Perforated bottom strainer plate
- Adaptor bars for fractional sized pans
- Remote models without compressors or condensing units
- Special condenser orientation and/or compressor rack position
- Remote models (Includes compressor and condensing units and up to 20’ leads)
