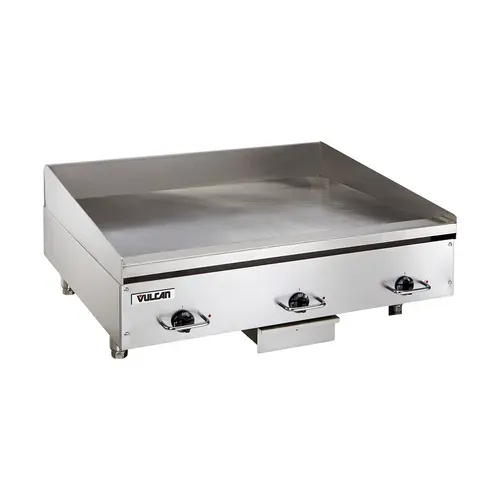

Vulcan HEG60E HEG-E Series 60'' Countertop Electric Griddle with Thermostatic Controls, 208 Volts
MPN#: HEG60E
1/2
Calculate
Vulcan HEG60E Specifications
| Installation Type | Countertop |
|---|---|
| Series | HEG-E Series |
| Construction | Stainless Steel |
| With Griddle | Yes |
| Brand | Vulcan |
| Griddle Plate Finish | Smooth Steel |
| Made in | USA |
| Certifications | NSF |
| Power Type | Electric |
| Number of Burners | 5 |
| Control Type | Thermostatic |
| Exterior Finish | Stainless Steel |
| Category | Griddle, Counter Unit, Electric |
| Controls | Thermostatic |
| Heat | Electric |
| Range Configuration | Griddle |
| Usage | Heavy Duty |
| Voltage | 208 Volts |
| Wattage | 27 Kilowatts |
| Width (in) | 60 |
| Height (in) | 15.3 |
| Depth (in) | 31.5 |
| Weight | 535.00 |
Additional Information on Vulcan HEG60E
owner-s-manual-french.pdf
service-manual.pdf
vulcan-heg60e.specsheet.pdf
parts-manual.pdf
warranty-sheet.pdf
owner-s-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan HEG60E Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan HEG60E Description
Heavy Duty Griddle, electric, countertop, 60" W x 24" D cooking surface, 3/4" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", (2) front grease trough, 4" back & tapered side splashes, 4" adjustable legs, CSAus, NSF
Heavy Duty Griddle, electric, countertop, 60" W x 24" D cooking surface, 3/4" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", (2) front grease trough, 4" back & tapered side splashes, 4" adjustable legs, CSAus, NSF, Flat Top Commercial grills & Griddles
Standard Features:
- 11" cooking height on 4" adjustable legs.
- One year limited parts and labor warranty.
- Heavy duty chromed thermostat knob guards
- Stainless steel 4" back and tapered side splashes.
- Stainless steel front, sides and 4" adjustable legs.
- 1⁄2" steel plate for 24", 36" and 48" units; 3⁄4" steel plate for 60" and 72" units.
- Available in 208V or 240V, 50/60 Hz, 1 or 3 phase power supply. 480V, 50/60 Hz 3 phase power supply.
- 3 1⁄2" wide front grease trough empties into a large capacity grease drawer. 60" and 72" models have two grease drawers.
- Two solid sheathed tubular incoloy heating elements, one snap action thermostat and cycling light per each 12" griddle width. Thermostats adjust from 200° to 450° F.
- Stainless steel stand with marine edges and casters.
- Cutting board, condiment rail, plate rail and banking strip accessories.
Heavy duty electric griddle. Stainless steel front and sides. 11" cooking height on 4" adjustable legs. 1⁄2" steel plate for 24", 36" and 48" units; 3⁄4" steel plate for 60" and 72" units. Tubular incoloy elements and one snap action thermostat for every 12" of griddle width. Thermostats adjust from 200° to 450° F. Stainless steel 4" back and tapered side splashes. 3 1⁄2" wide front grease trough empties into large capacity grease drawer. Available in 208V, 240V 50/60 Hz, 1 or 3 phase. 480V 50/60 Hz 3 phase. NSF Certified. UL Listed. UL Listed to Canadian safety standards.
