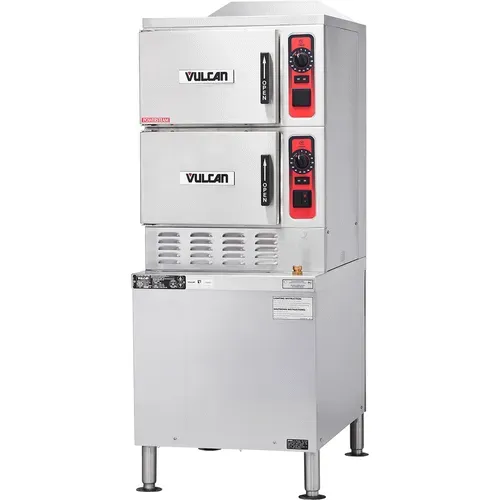

Vulcan C24GA10 Convection Steamer
Calculate
Vulcan C24GA10 Specifications
| Pan Capacity | 10 Pans |
|---|---|
| Steam Source | Boiler |
| Type | Convection Steamers |
| Boiler | Yes |
| Brand | Vulcan |
| Made in | USA |
| Number of Compartments | 2 |
| Certifications | UL |
| Power Type | Gas |
| BTU | 125,000 BTU |
| Controls | Adjustable |
| Heat | Gas |
| Style | Floor |
| Voltage | 120 Volts |
| Width (in) | 24 |
| Height (in) | 72 |
| Depth (in) | 35.4 |
| Weight | 675.00 |
Additional Information on Vulcan C24GA10
certifiedplusinstallation.pdf
parts-list.pdf
installation-operation.pdf
service-manual.pdf
warranty-sheet.pdf
vulcan-c24ga10.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan C24GA10 Certifications
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Vulcan C24GA10 Description
If your operations need a reliable steamer that runs on gas, the C24GA10 Convection Steamer from Vulcan is a great option. This system comes with steamers stacked vertically on a cabinet base and can hold a total of ten 12” x 20” pans.
Each compartment features its own timer that can be set for up to 60 minutes allowing two different items to be cooked in each of the compartments. The compartments are sealed securely with heavy-duty doors with tried and tested latch mechanisms for easy access. A gasket guard maintains the seal and prevents damage.
The cooking compartments are made from stainless steel and feature coved corners making cleaning as simple as possible. The exterior and cabinet base are also made from stainless steel to make sure the unit can stand up to daily commercial use for years to cume. The unit stands on 6” adjustable stainless steel legs with flanged feet to keep the unit level.
Steam is generated by a 125,000 BTU/hr steam generator and the unit creatures a ¾” rear gas connection with a pressure regulator. Connecting it to a standard 120v/60/1-ph power supply is simple with the included 6-foot power cord and 3-prong plug.
Standard Features:
- Stainless steel exterior.
- One year limited parts and labor warranty.
- Stainless steel water resistant cabinet base.
- Heavy duty doors and door latch mechanisms.
- Elevation from sea level to 8,999 feet standard.
- 6" adjustable stainless steel legs with flanged feet.
- 3⁄4" rear gas connection and gas pressure regulator.
- Requires 120/60/1 power supply, 2.0 amps maximum draw.
- 125,000 BTU/hr. stainless steel steam generator with staged water fill.
- Two stainless steel cooking compartments with curved interior corners.
- Separate 60 minute timer with constant steam feature for each compartment.
- Split water line connection. Treated and untreated water connections. 11⁄2" NPT drain connection.
- Professional Control Package includes:
- Superheated Steam System
- Second year extended limited parts and labor warranty contract.
- Steamer Security Package, includes controls protected by lockable cover, perforated flue cover, security fasteners & tack-welds.
- Removable sliding shelf.
- Water treatment system.
- Stainless steel pan cover.
- 12" x 20" stainless steel pans:
- 1" deep (solid)(perforated)
- 4" deep (solid)(perforated)
- 2 1⁄2" deep (solid)(perforated)
