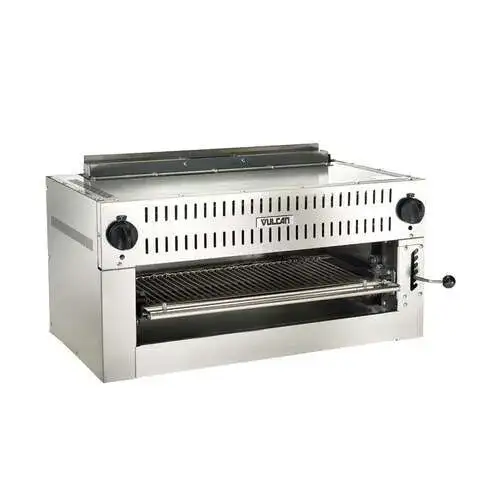

Vulcan 36IRB-P Salamander Broiler
Calculate
Vulcan 36IRB-P Specifications
| Total BTU | 30,000 BTU |
|---|---|
| Model | Heavy Duty |
| Power Type | Liquid Propane |
| Installation Type | Wall Mounted |
| Brand | Vulcan |
| Burner Type | Infrared |
| Made in | USA |
| Number of Burners | 2 |
| BTU | 30,000 BTU |
| BTU per Burner | 30,000 BTU |
| Heat | Gas |
| Width (in) | 36 |
| Height (in) | 17.63 |
| Depth (in) | 19 |
| Weight | 180.00 |
Additional Information on Vulcan 36IRB-P
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 36IRB-P Description
If you’re looking for a durable salamander for your restaurant that runs on propane gas, the Vulcan 36IRB-P Salamander Broiler is an excellent option. Salamander Broilers are a great addition to kitchens that need a compact solution to efficiently cook a variety of dishes.
This salamander is meant to be mounted onto a range with a reinforced back riser for size-efficient and easy to access layout. However, if you need it to be wall-mounted or placed on a countertop it is possible with optional hardware.
Two ceramic infrared burners inside the unit can be adjusted independently for dual-zone operation. A standing pilot adds convenience while two control knobs on either side can set temperatures between 250°F and 800°F at the rack.
The rack measures 27-½” wide and 13” deep featuring heavy-duty chrome plating. To catch crumbs and spills there’s a full-width pan under the grid that is easily removed. The grid’s height is easily adjusted to 6 positions for optimal results with a knob that remains cool to the touch.
The sides, front, and top are made from stainless steel making the unit easy to clean and maintain.
To fuel this salamander broiler 30,000 BTU/hr of total input is needed.
Standard Features:
- Standing pilot ignition system.
- Removable full width spillage pan.
- One year parts and labor warranty.
- Stainless steel front, top and sides.
- Dual heat controls for zone cooking.
- Heavy-duty chrome plated grid (27 1⁄2"w x 13"d).
- 3⁄4" top gas connection and gas pressure regulator.
- Two 15,000 BTU ceramic infrared burners. 30,000 BTU/hr. total input.
- Cool-to-the-touch knob on lever provide positive positioning of the broiler carriage (6 positions).
- Range inter-plumb kit.
- Stainless steel back panel.
- Set of 4" legs with adjustable feet.
- Set of stainless steel wall mount brackets.
- Stainless steel reinforced back riser for range mounting.
Gas salamander broiler, Vulcan Model No. 36IRB. Stainless steel front, top and sides. Two 15,000 BTU/hr. ceramic infrared burners. 30,000 BTU/hr. total input. Dual heat controls with improved temperature control (250°F-800°F at rack). Pilot ignition system. Cool-to-the-touch knob on lever provides positive positioning of the broiling carriage. Heavy-duty chrome plated broiling grid measures 27 1⁄2"w x 13"d. Removable full width spillage pan. 3⁄4" top gas connection and gas pressure regulator. Exterior Dimensions: 36"w x 19"d x 17 5⁄8"h (broiler dimensions only). CSA design certified. NSF listed.
