Vulcan 2GR45MF Hart Model (2) 45-50 lb. Fryers Gas Floor Fryer with Millivolt Thermostatic Controls and KleenScreen PLUS® Filtration System, 120 Volts - 240,000 BTU
Calculate
Vulcan 2GR45MF-QS-PLATINUM Specifications
| Series | Hart Model |
|---|---|
| Filtration System | KleenScreen PLUS® Filtration System |
| Control Type | Millivolt Thermostatic |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Made in | USA |
| Battery | 2 |
| Certifications | NSF |
| Basket | Twin |
| BTU | 240,000 BTU |
| Controls | Мillivolt thermostat |
| Capacity | (2) 45-50 lb. Fryers |
| Voltage | 120 Volts |
| Width (in) | 31 |
| Height (in) | 46.25 |
| Depth (in) | 30.13 |
| Weight | 512.00 |
Additional Information on Vulcan 2GR45MF-QS-PLATINUM
parts-catalog.pdf
fry-tank-warranty.pdf
sell-sheet.pdf
parts-list.pdf
warranty.pdf
service-manual.pdf
owner-s-manual.pdf

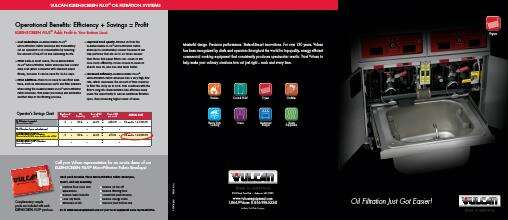

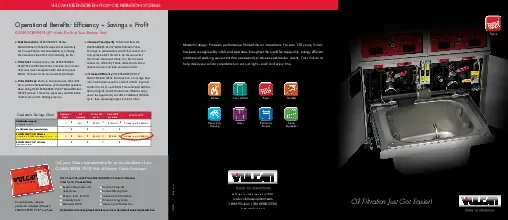

brochure.pdf
vulcan-2gr45mf.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 2GR45MF-QS-PLATINUM Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 2GR45MF-QS-PLATINUM Description
If your commercial kitchen needs a two fryer battery that won’t break the bank while still being dependable, the 2GR45MF Fryer from Vulcan is a great option with 45-50 lb capacity fry pots and built-in filtration.
With four heat exchanger tubes in each fry tank, oil is evenly heated. The heat exchanger tubes are simple to remove to make cleaning easy. To prevent the carbonization of crumbs, V-shaped cool zones in the fry tanks make sure oil can be used for longer while preserving flavor.
The temperature can be adjusted from 200°F to 400°F via a simple millivolt thermostat hidden behind the door.
With the KleenScreen PLUS®, this fryer system has a stainless steel mesh filter to remove larger particles. However, to filter out particles down to .5 microns the optional KleenScreen PLUS® filter envelopes must be ordered. The filtration system is held inside a seamless 18 gauge stainless steel filter vessel. A ⅓ HP filter motor makes sure filtration is quick to minimize downtime with a ⅓ HP pump.
The cabinet and fry tank of this fryer is made from stainless steel for durability ad ease of maintenance. This fryer comes standard with adjustable 6” casters to make it easy to move around for cleaning and maintenance. It also comes with a clean-out rod, stainless steel crumb scoop, twin fry baskets with plastic coated handles, and a tank brush.
This fryer requires a total input of 240,000 BTU/hr and comes with a NEMA 5-15P cord and plug.
Standard Features:
- Hi-limit shut-off.
- 150,000 BTU/hr. input.
- Stainless steel cabinet.
- 1 1⁄4" full port ball type drain valve.
- One year limited parts and labor warranty.
- Set of four 6" adjustable casters (2 locking).
- Twin fry baskets with plastic coated handles.
- Five heat exchanger tubes positioned for easy cleaning.
- Combination gas shut-off valve and pilot ignition system.
- Tank brush, stainless steel crumb scoop and clean-out rod.
- Stainless steel fry tank, 85 - 90 lb. capacity. Includes limited 10 year tank warranty.
- FRYMATE-VX21S add-on frymate.
- 3⁄4" Flexible gas hose with quick disconnect.
- Set of twin baskets - 8 3⁄4"w x 16 3⁄4"d x 6"h.
- Single large basket - 18 3⁄4"w x 17 1⁄4"d x 6"h.
- 10" high stainless steel removable splash guard.
- Stainless steel tank cover - doubles as a work surface top.
- Connecting Kit(s) - Connects two Commercial Deep Fryers together (brackets, grease strip and hardware included).
- Second year extended limited parts and labor warranty
70 - 85 lbs. capacity free standing gas fryer, Vulcan-Hart Model No. (1GR85M) (1GR85A) (1GR85D) (1GR85C). Stainless steel cabinet. Set of four 6" adjustable casters (2 locking). Stainless steel fry tank with five heat exchanger tubes and a “V” shaped cold zone. 1 1⁄4" full port ball type drain valve. Twin fry baskets with plastic coated handles. 150,000 BTU/hr. input. Millivolt (M), solid state analog knob control (A), solid state digital (D), or programmable computer (C) control system. Electronic ignition standard with solid state and computer control models. Tank brush, stainless steel crumb scoop and clean-out rod. CSA design certified. NSF listed.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
