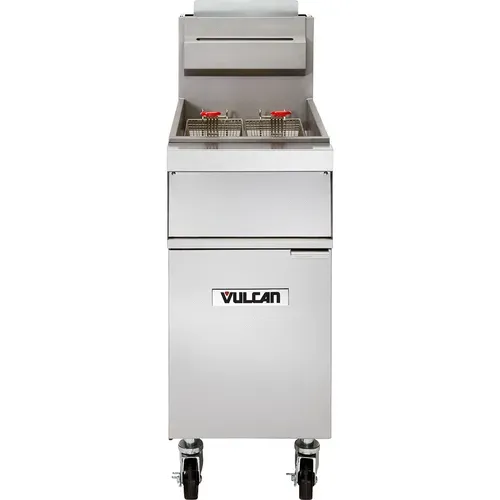

Vulcan 1GR45M 15 - 50 lb. Gas Floor Model Full Pot Fryer with Millivolt Thermostatic Controls - 120,000 BTU
Calculate
Vulcan 1GR45M-QS-PLATINUM Specifications
| Total BTU | 120,000 BTU |
|---|---|
| Installation Type | Freestanding |
| Series | GR SERIES |
| Construction | Stainless Steel |
| Burner Style | Tube |
| Brand | Vulcan |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Certifications | NSF |
| BTU | 120,000 BTU |
| Power Type | Gas |
| Model | Free Standing |
| Basket | Twin |
| Basket Lifts | No |
| Control Type | Thermostatic |
| Exterior Finish | Stainless Steel Front & Sides |
| Controls | Millivolt Thermostat |
| Capacity | 15 - 50 lb. |
| Heat | Natural or Propane Gas |
| Material | Stainless Steel |
| Width (in) | 15.5 |
| Height (in) | 47.13 |
| Depth (in) | 30.25 |
| Weight | 215.00 |
Additional Information on Vulcan 1GR45M-QS-PLATINUM
vulcan-1gr45mspecsheet.pdf
parts-manual.pdf
service-manual.pdf
guide-d-installation-et-d-utilisation.pdf
warranty.pdf
installation-operation.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 1GR45M-QS-PLATINUM Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 1GR45M-QS-PLATINUM Description
The Vulcan 1GR45M Fryer is a simple 45-50 lb capacity fryer designed to be durable and reliable for use in commercial kitchens. Floor Model Gas Fryers can make or break ticket times in a busy commercial kitchen. If you need to fill orders quickly and efficiently, Vulcan Commercial Deep Fryers are a great option.
Oil in the fry tank is evenly heated with four heat exchanger tubes that can be removed for cleaning. To trap crumbs and debris and prevent carbonization the fry tank features a V-shaped cool zone. This maintains the quality of the oil for longer periods.
To control the temperature this fryer uses a simple to use millivolt thermostat which can be set between 200°F and 400°F.
This fryer is designed to stand up to the rigors of daily commercial use with a stainless steel cabinet and fry tank. To make moving this fryer around for cleaning and maintenance as easy as possible it comes on adjustable 6” casters. For ease of use, it also comes with twin fry baskets with plastic coated handles, a tank brush, a clean-out rod, and stainless steel crumb scoop.
A NEMA 5-15P cord and plug are included to connect the fryer to a 120-volt outlet and in total 120,000 BTU/hr of gas input is required.
Standard Features:
- Hi-limit shut-off.
- Stainless steel cabinet.
- 120,000 BTU/hr. input.
- 1 1⁄4" full port ball type drain valve.
- Set of four 6" adjustable casters (2 locking).
- Twin fry baskets with plastic coated handles.
- Four heat exchanger tubes positioned for easy cleaning.
- Combination gas shut-off valve and pilot ignition system.
- Tank brush, stainless steel crumb scoop and clean-out rod.
- Stainless steel fry tank, 45 - 50 lb. capacity. Includes limited 10 year tank warranty.
- FRYMATE-VX15 add-on frymate.
- 3⁄4" Flexible gas hose with quick disconnect.
- Set of twin baskets - 6 1⁄2"w x 13 1⁄4"d x 6" h.
- 10" high stainless steel removable splash guard.
- Single large basket - 13"w x 13 1⁄4"d x 5 1⁄2" h.
- Stainless steel tank cover - doubles as a work surface top.
- Connecting Kit(s) - Connects two fryers together (brackets, grease strip and hardware included).
- Second year extended limited parts and labor warranty.
45 - 50 lbs. capacity free standing gas fryer, Vulcan-Hart Model No. (1GR45M) (1GR45A) (1GR45D) (1GR45C). Stainless steel cabinet. Set of four 6" adjustable casters (2 locking). Stainless steel fry tank with four heat exchanger tubes and a “V” shaped cold zone. 1 1⁄4" full port ball type drain valve. Twin fry baskets with plastic coated handles. 120,000 BTU/hr. input. Millivolt(M), solid state analog knob (A), solid state digital (D), or programmable computer (C) control system. Electronic ignition standard with solid state and computer control models. Tank brush, stainless steel crumb scoop and clean-out rod.
