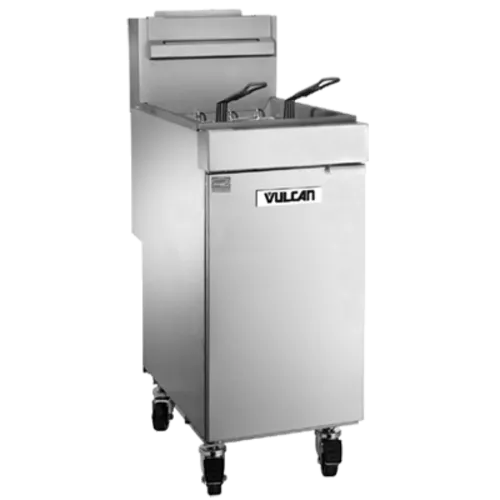

Vulcan 1VEG35M 15 - 50 lb. Gas Floor Model Full Pot Fryer with Millivolt Thermostatic Controls - 70,000 BTU

MPN#: 1VEG35M
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$1,585.00 /
Lowest Price Guarantee
Chat Now
$1,370.00 /
or enjoy small payments $29.44/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 1585

Vulcan 1VEG35M Specifications

Total BTU70,000 BTU
Installation TypeFloor Model
ConstructionGalvanized and Stainless Steel
Burner StyleTube
SeriesVEG Series
BrandVulcan
Energy EfficiencyEnergy Star
Made inUSA
CertificationsNSF
Power TypeGas
Control TypeThermostatic
BTU70,000 BTU
ControlsMillivolt Thermostat
Capacity15 - 50 lb.
HeatNatural Gas
Width (in)15.5
Height (in)46.63
Depth (in)29.75
Weight210.00

Additional Information on Vulcan 1VEG35M

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Vulcan 1VEG35M Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Vulcan 1VEG35M Description

Fryer, Natural gas, floor model, 15-1/2" W, single tank, 35-40 lbs. oil capacity, millivolt thermostat control with hi-limit shut-off, built-in flue deflector, includes: twin fry baskets, drain extension & nickel plated tube rack, stainless steel fry tank & front, galvanized sides & back, (4) nickel-plated adjustable legs, 70,000 BTU, NSF, CSA Star, CSA Flame, Energy StarĀ®

If your business needs a simple to use fryer with 35-40 lbs of oil capacity that you can rely on day after day the 1VEG35M Fryer from Vulcan is a great option. This fryer is extremely efficient and will save you on utility costs with its ENERGYSTAR® qualification. The Floor Model Gas Fryers offered by Vulcan are some of the most reliable units on the market with a wide array of features that make operation simple.

The three heat exchanger tubes in this fryer’s fry tank evenly heat oil and can be removed easily for simple cleaning and includes a built-in flue deflector. To extend the life of oil the fry tank features a large cool zone that traps crumbs and prevents carbonization.

The temperature can be adjusted from 200°F to 400°F via a simple millivolt thermostat hidden behind the door.

Cleaning and maintenance of the fryer are easy with stainless steel construction of the front, reinforced door, and fry tank. To reduce costs while keeping the construction robust, the sides and back feature a G90 high grade galvanized non-corrosive finish. Twin fry baskets with plastic coated handles and a drain extension are included for convenience.

This fryer requires a total input of 70,000 BTU/hr.

Vulcan 1VEG35M 35-40 lb. Galvanized and Stainless Steel Gas Floor Model Full Pot Fryer with Millivolt Thermostatic Controls - 70,000 BTU

Fryer, gas, floor model, 15-1/2" W, single tank, 35-40 lb. oil capacity, millivolt thermostat control with hi-limit shut-off, built-in flue deflector, includes: twin fry baskets, tank brush, drain extension & nickel plated tube rack, stainless steel fry tank & front, galvanized sides & back, (4) nickel-plated adjustable legs, 70,000 BTU, NSF, CSA Star, CSA Flame, Energy StarĀ®

Standard Features:
  • Large cold zone area.
  • 1 1⁄4" full port ball type drain valve.
  • Set of four nickel plated adjustable legs.
  • Stainless steel fry tank, 35-40 lb. capacity.
  • Twin fry baskets with plastic coated handles.
  • Easily removable stainless steel basket hanger for cleaning.
  • G90 high grade galvanized non corrosive finish sides and back.
  • Stainless steel reinforced door with Earth magnet to secure closed door.
  • Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
  • Behind the door snap action millivolt thermostat control adjusts from 200° to 400°F with standing pilot requires no electric hook-up.
  • Stainless steel fry tank has a five (5) year limited tank warranty. If during the first year only, the tank is found to have a leak and is verified by an authorized service agency, the entire VEG Series fryer will be replaced.
Accessories: (Packaged & Sold Separately)
  • Crumb screen mesh - with handles.
  • Flexible gas hose with quick disconnect.
  • Single large basket - 13"w x 13 1⁄4"d x 5 1⁄2"h
  • Casters 6" adjustable - 2 locking, 2 non-locking.
  • 10" high stainless steel removable splash guard.
  • FRYMATE-VX15 add-on Frymate™ Dump Station.
  • Extra set of twin baskets - 6 1⁄2"w x 13 1⁄4"d x 6"h
  • Stainless steel tank cover - doubles as a work surface top.
  • Connecting kit(s) - connect two Commercial Deep Fryers together (banking strip, brackets, and hardware).
Specifications
35-40 lb. capacity free standing model gas fryer, Vulcan Model No. 1VEG35M. 70,000 BTU/hr. input. ENERGY STAR® certified. Stainless steel front top and reinforced door. Stainless steel fry tank with three exchanger tubes for maximum heat transfer. 11⁄4" full port ball type drain valve. Includes twin fry baskets with plastic coated handles and drain extension. Behind the door snap action millivolt thermostat control adjust from 200° to 400°F. Tank brush and clean-out rod included.
