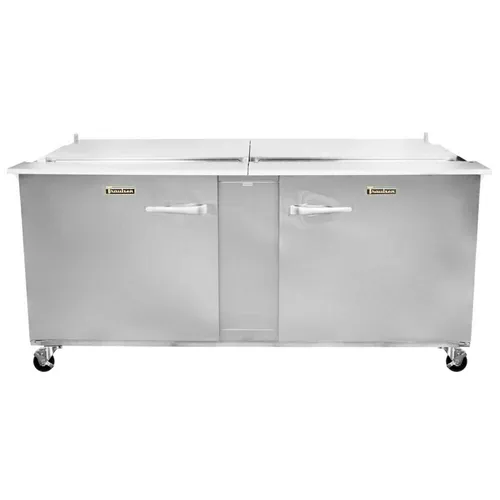

Traulsen UST7230-LR 72'' 2 Door Counter Height Refrigerated Sandwich / Salad Prep Table with Mega Top

Name: Traulsen UST7230-LR 72'' 2 Door Counter Height Refrigerated Sandwich / Salad Prep Table with Mega Top
Brand: Traulsen
SKU: UST7230-LR
Price: 7813.61 USD
Availability: InStock

MPN#: UST7230-LR

Traulsen UST7230-LR 72'' 2 Door Counter Height Refrigerated Sandwich / Salad Prep Table with Mega Top

Free Freight?

Quick Ship

$7,813.61 /

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

Product Protection

Starting at

2023 model, meets the newest EPA and DOE codes.

Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

View all Traulsen Sandwich and Salad Preparation Refrigerators

Traulsen UST7230-LR Specifications

Nominal Width	72 Inches
Access Type	Doors
Compressor Style	Front Breathing
Top Type	Mega Top
Construction	Stainless and Galvanized Steel
Brand	Traulsen
Refrigerant Type	R-134A
Made in	USA
Certifications	ETL
Number of Doors	2
Legs	6" adjustable legs
Capacity	19 - 32 cu. ft.
Compressor Location	Bottom Mounted
Door Type	Solid
Material	Anodized Aluminum
Sections	2
Style	Counter Height
Temperature Range	34 - 38 Degrees F
Voltage	115 Volts
Width (in)	72
Height (in)	36
Depth (in)	34.5

Additional Information on Traulsen UST7230-LR

warrantysheet.pdf

sellsheet.pdf

manual.pdf

oversize-equipment-quick-ref-guide.pdf

traulsen-ust7230-lr.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Traulsen UST7230-LR Certifications

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Traulsen UST7230-LR Description

Dealer's Choice Compact Prep Table Refrigerator with low profile flat cover, Reach-in, two-section, 72" wide, holds (30) 1/6 pans 4" deep (included) can accommodate up to 6" deep pans, stainless steel exterior top, sides & doors, hinged left/right, anodized aluminum interior, galvanized exterior back & bottom, rear mounted, self-contained refrigeration, R290 Hydrocarbon refrigerant, (6) 4" casters, 1/5 HP, cETLus, ETL-SanitationDealer's Choice Compact Prep Table Refrigerator with low profile flat cover, Reach-in, two-section, 72" wide, holds (30) 1/6 pans 4" deep (included) can accommodate up to 6" deep pans, stainless steel exterior top, sides & doors with Santoprene® EZ-Clean Gasket, hinged left/right, anodized aluminum interior, galvanized exterior back & bottom, rear mounted, self contained refrigeration, (6) 4" casters, 1/4 HP, cULus, NSF

Standard Features:

Traulsen's durable, high performance, sandwich prep tables provide a high quality/ high value alternative to the all too common commodity types in today's market. Any comparison between prep tables should start with performance, and Traulsen really does the job. Not only do they all meet the NSF 7 Standard, but do so under real world conditions, even when using 6" deep pans! A Traulsen exclusive. Truly front breathing, their design allows for "zero-clearance" installation. As a result they can be placed right up against the back wall and alongside other kitchen equipment, saving valuable floor space.

Metal Door Handles
8' Cord & Plug Attached
Interior Mounted Thermometer
Magnetic Snap-In Door Gaskets
Five Year Compressor Warranty
Three Year Parts And Labor Warranty
Anodized Aluminum Interior Door Liners
Environmentally Friendly R-134a Refrigerant
Automatic Non-Electric Condensate Evaporator
Reversible, Full Length White Nylon Cutting Board
Front Breathing Self-Contained Refrigeration System
High Quality Stainless Steel Exterior Top, Sides & Door(s)
Durable, Corrosion Resistant Anodized Aluminum Interior
Stainless Steel Insulated Pan Lid with Two Open Positions
Set of Four (4) 6" High Adjustable Legs (6 for 60" & 72" models)
Reinforced Pan Ledge (holds pans securely leveled, year after year)
Two (2) Powder Coated Steel Shelves Per Door, Mounted On Adjustable Pilasters
Self-Closing Stainless Steel Doors With Convenient Stay Open Feature @ 105 Degrees
Provides NSF Standard 7 Performance, Even When Using 6" Deep Pans - A Traulsen Exclusive
Top Cut-Outs Accommodate Sixth Size Pans (divider bars and 4" deep plastic sixth size pans provided)
Standard Work Height 36-1/4" (see "optional accessory kits for lower height casters to meet ADA requirements or provide lower work heights).

Optional Accessory Kits:

SHELF CPW1 (additional shelf for all 27" models)
SHELF CPW2 (additional shelf for all 32" models)
SHELF48 UPPER (upper shelf for all 48" models)
SHELF48 LOWER (lower shelf for all 48" models)
SHELF60 UPPER (upper shelf for all 60" models)
SHELF60 LOWER (lower shelf for all 60" models)
SHELF72 UPPER (upper shelf for all 72" models)
SHELF72 LOWER (lower shelf for all 72" models)
CASTER SET2IN (four 2-1/2" high casters for 27" models)
CASTER 5SET6 (six 6" high casters for 60" & 72" models)
CASTER 60SET3 (six 4" high casters for 60" & 72" models)
CASTER SET4 (six 3-1/2" high casters for 60" & 72" models)
CASTER 5SET4 (four 6" high casters for 27", 32" & 48" models)
CASTER SET4IN (four 4" high casters for 27", 32" & 48" models)
CASTER SET3IN (four 3-1/2" high casters for 27", 32" & 48" models)
**All optional accessory kits are shipped separately for field installation.**

Factory Installed Options:

Other Door Hingings
Stainless Steel Finished Back

Specifications:
Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, pan lid, and doors are constructed of 22 gauge stainless steel. Cabinet interior and door liners are constructed of anodized aluminum. The exterior cabinet back and bottom are constructed of galvanized steel. Doors self close at less than 90 degrees and also includes a stay open feature at 105 degrees. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Both the cabinet and doors are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. A 3/4" thick, full-length, reversible white nylon cutting board is supplied standard.

Pans & Cover

Each model is supplied standard with its full compliment of 4" deep plastic 1/6 size pans and stainless steel pan dividers. The insulated lift-up pan cover is constructed of stainless steel, and is easily removable for cleaning.

Refrigeration System

A balanced, rear mounted, front breathing, self-contained refrigeration system using R-134a refrigerant is provided. It features a capillary tube metering device, air-cooled hermetic compressor, a forced air evaporator coil and a non-electric condensate evaporator. An 8' cord and plug is provided. Standard operating temperature of the refrigerated base is 34 to 38°F.

Interior

Standard interior arrangements include two (2) powder coated wire shelves per door, mounted on pilasters. These are adjustable in 1/2" increments, allowing for a minimum of 1-1/2" spacing between shelves.

Warranties

Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.

Options for Traulsen UST7230-LR

Additional shelves

Additional Powder Coated Upper Shelf, for 72" models +$105.37 Additional Powder Coated Lower Shelf, for 72" models +$105.37

What is included

Voltage: 115v/60/1-ph, 7.2 amps, 8' cord, NEMA 5-15P
Warranty: 6-year parts & labor and 7 year compressor, standard. Visit www.traulsen.com for details
Oversize Note: Oversized units with crated shipping dimensions greater or equal to 72" in length and/or 90" in height. If delivery is to a facility without a standard height dock, additional shipping charges will apply, depending on the service requested (consult factory for details)
