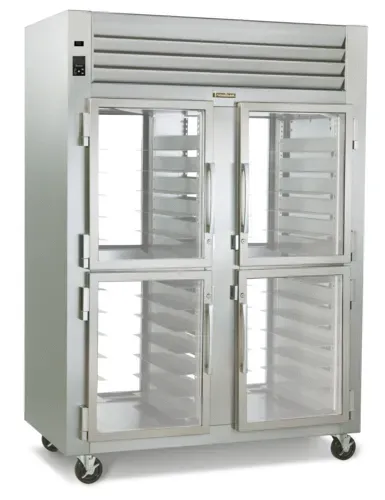

Traulsen RHT232NPUT-HHG 52.13'' 48.3 cu. ft. 2 Section Glass Half Door Pass-Thru Refrigerator

MPN#: RHT232NPUT-HHG
Traulsen RHT232NPUT-HHG 52.13'' 48.3 cu. ft. 2 Section Glass Half Door Pass-Thru Refrigerator
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$30,066.30 /

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

$28,699.65 /

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

or enjoy small payments $616.76/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 30066
  • 2023 model, meets the newest EPA and DOE codes.
  • Usually ships in 4-6 weeks
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Traulsen RHT232NPUT-HHG Specifications

Amps11 Amps
Refrigerator Capacity48.3 cu. ft.
Door SizeHalf
Hinge LocationLeft/Right
Door HingeLeft/Right Hinged
ConstructionStainless Steel
Half DoorsYes
BrandTraulsen
Refrigerant TypeR-134A
Energy EfficiencyEnergy Star
CertificationsETL
Split DoorsYes
Number of Shelves6
Number of Doors8
Refrigeration SystemSelf-contained
Capacity47 - 70 cu. ft.
Compressor LocationTop Mounted
Door TypeGlass
MaterialStainless Steel
Sections2
Temperature Range34 - 38 Degrees F
Voltage115 Volts
Width (in)52.13
Height (in)83.25
Depth (in)37.94
Weight780

Traulsen RHT232NPUT-HHG Certifications

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Traulsen RHT232NPUT-HHG Description

Spec-Line Refrigerator, Pass-thru Display, two-section, self-contained refrigeration, StayClear™ Condenser, variable speed compressor, stainless steel exterior and interior, standard depth, narrow half-height glass door or doors with EZ-Clean Gaskets, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, R-290 Hydrocarbon refrigerant, 1/2 HP, cETLus, ETL-Sanitation, ENERGY STAR®
Spec-Line Display Pass-Through Refrigerator, two-section, self-contained refrigeration, stainless steel exterior and interior, standard depth, narrow half-height glass door or doors with Santoprene® EZ-Clean Gaskets, interior lights, (3) adjustable wire shelves per section, INTELA-TRAUL™ microprocessor controls, 6" adjustable stainless steel legs, 1/2 HP, cULus, NSF (more pass-thru refrigerators and freezers and other commercial refrigerators and freezers available)

Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. These “N-Width” pass-thru refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
  • Biased Return Air Duct
  • 9' Cord & Plug Attached
  • Stainless Steel Breaker Caps
  • Five-Year Compressor Warranty
  • Scroll Blower Type Evaporator Fan
  • Guaranteed For Life Cam-Lift Hinges
  • Three-Year Parts And Labor Warranty
  • Incandescent Lights With Exterior Switch
  • Stainless Steel Vertical Door Handleserior
  • R-Series: Stainless Steel Exterior & Interior
  • Stainless Steel One-Piece Louver Assembly
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • Thermostatic Expansion Valve Metering Device
  • Automatic Non-Electric Condensate Evaporator
  • INTELA-TRAUL® Microprocessor Control System
  • Controllable Anti-Condensate Door Perimeter Heaters
  • Set of Four (4) 6" High Adjustable Stainless Steel Legs
  • Self-Closing Doors With Stay-Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Balanced, Self-Contained Refrigeration System Using R-134a
  • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
  • Full or Half-Length Hinged Glass Doors With Locks (full-length doors n/a for three-section models)
  • Standard Door Hinging F & R: 232N = Left/Right, 332N = Left/Right/Right (other hingings available)
Options & Accessories:
  • Fluorescent Lights
  • Stainless Steel Shelves
  • Additional Wire Shelves
  • Export 220/50/1 Voltage
  • Bare Tube Coil (232NP only)
  • Re-Hinging Feature For Door(s)
  • Kool Klad Exterior Laminate Decor
  • Set of Four (4) 6" High Casters In Lieu of Legs
  • 4-1/2" High Stainless Steel Base In Lieu of Legs
  • Set of Four (4) 4-5/8" High Casters In Lieu of Legs
  • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
  • 6" High Stainless Steel Kickplate (for use with standard legs)
  • Remote Applications (see spec sheet TR35837 for more details)
  • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
  • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
  • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
  • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. (see notes below)
Specifications:
Construction, Hardware, and Insulation
  • Cabinet exterior front, one-piece sides, and louver assembly are constructed of 20-gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs is included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
Refrigeration System
  • A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
Controller
  • The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Interior
  • Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
Warranties
  • Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.

Options for Traulsen RHT232NPUT-HHG

Tray slides & shelves
Glycol system option
Locking devices
Correctional options
Rear door hinging
Front door hinging
Options & accessories
Mounting options
What is included
  • Warranty: 6-year parts & labor and 7 year compressor, standard. Visit www.traulsen.com for details
Voltages
