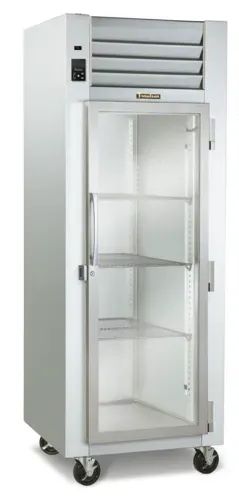

Traulsen RHT132NUT-FHG 26.38'' 21.9 cu. ft. Top Mounted 1 Section Glass Door Reach-In Refrigerator

Standard Features:

The R & A Series represent Traulsen's Top-of-the-Line product offering. The one section “N-Width” reach-in refrigerator models are all designed to offer maximum interior storage capacity within a narrow 24" left to right footprint. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.

• 9' Cord & Plug Attached
• Five-Year Compressor Warranty
• Magnetic Snap-In Door Gaskets
• Automatic Condensate Evaporator
• Gasket Protecting Metal Door Liner
• One-Year Parts And Labor Warranty
• R-Series: Stainless Steel Exterior & Interior
• Automatically Activated Incandescent Lights
• Two-Year Control Warranty (parts and labor)
• Thermostatic Expansion Valve Metering Device
• Balanced, Self-Contained Refrigeration Systems
• INTELA-TRAUL® Microprocessor Control System
• Full or Half-Length Stainless Steel Doors With Locks
• Three Chrome-Plated Adjustable Shelves Per Section
• Guaranteed For Life Cam-Lift Hinges & Door Handles
• Controllable Anti-Condensate Door Perimeter Heaters
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• Self-Closing Doors With Stay-Open Feature At 120 Degrees
• Stainless Steel Breaker Caps & One-Piece Louver Assembly
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• Standard Door Hinging: 132N = Right, 232N = Left/Right (other hingings available)

Options & Accessories:

• Re-Hinging Feature For Doors
• Additional Chrome-Plated Shelves
• Kool Klad Exterior Laminate Decor
• Two Year Service/Labor Warranty Available
• Set of Four (4) 6" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• Stainless Steel Finished Back With Rear Louvers
• Set of Four (4) 4-7/16" High Casters In Lieu of Legs
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Remote Applications (see spec sheet 12-2 for more details)
• 6" High Stainless Steel Kickplate (for use with standard legs)
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans, Adjustable To 2" O.C.
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

Specifications:
Construction, Hardware, and Insulation

• Cabinet exterior front, one-piece sides, louver assembly, and doors are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy-gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks, and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Anti-condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane.

Refrigeration System - Refrigerator Models

• A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.

Refrigeration System - Freezer Models

• A top-mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, interior mounted evaporator coil and a bottom-mounted electric condensate evaporator. A 9' cord and plug is provided. Standard operating temperature is 0 to -5°F.

Controller

• The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third-party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, Defrost Lockouts (freezer models only), and an RS485 data port. In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.

Interior

• Standard interior arrangements include three (3) chrome-plated wire shelves per section. Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and optional interior arrangements are completely installed at the factory.

Warranties

• Both a one-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition, the INTELA-TRAUL® control is warranted by a two-year parts and labor warranty.
