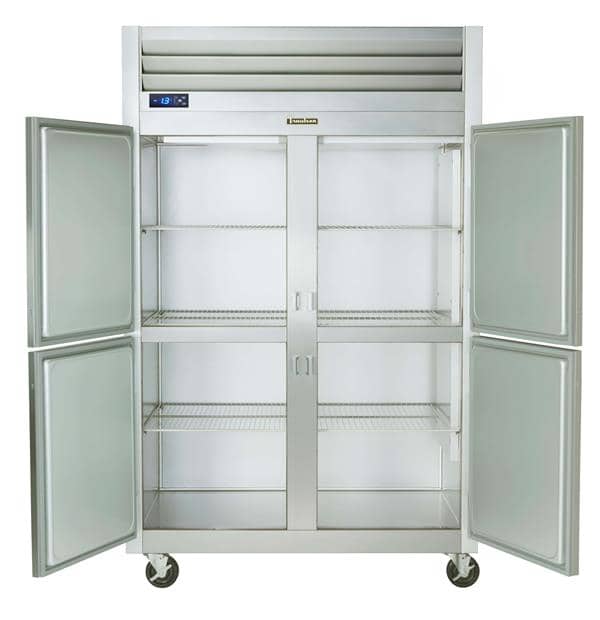

Traulsen G22000 52.13'' 46.0 cu. ft. Top Mounted 2 Section Solid Half Door Reach-In Freezer

Standard Features:

Traulsen’s G-Series "Dealer's Choice" models meet or exceed the standard specifications and performance of most other brands top tier product offerings. Reliable, energy-efficient, and durable, with large individual storage capacities, the high-quality G-Series lineup includes a wide range of one, two, and three-section reach-in refrigerator and freezer models built in our most popular footprints. They are available with either full or half height doors, and the added convenience of a variety of different door hingings to choose from. In addition, each also includes a number of user-friendly features, making them one of the best overall equipment values in Foodservice today, and the right fit for nearly any commercial application.

• 9' Cord & Plug Attached
• Minus 10 Degree F Capable
• Five-Year Compressor Warranty
• Durable Anodized Aluminum Interior
• Guaranteed For Life Cam-Lift Hinges
• Three-Year Parts And Labor Warranty
• Anti-Condensate Door Perimeter Heaters
• Magnetic Snap-In EZ-Clean Door Gaskets
• Set of Four (4) 6" High Casters With Locks
• Automatically Activated Incandescent Lights
• Stainless Steel One-Piece Louver Assembly
• Damage-Resistant Stainless Steel Breaker Caps
• Gasket-Protecting Anodized Aluminum Door Liner
• Full or Half-Length Stainless Steel Doors With Locks
• Load-Sure Guard Protects Against Improper Loading
• High-Quality Stainless Steel Exterior Front and Door(s)
• Microprocessor Control With LED Temperature Readout
• Corrosion-Resistant Anodized Aluminum One-Piece Sides
• Guaranteed For Life Horizontal Work Flow Door Handle(s)
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Large High-Humidity Evaporator Coil Outside The Food Zone
• Top-Mounted, Balanced, Self-Contained Refrigeration System
• Energy-Saving Automatic Non-Electric Condensate Evaporator
• Thermostatic Expansion Valve Metering Device Provides Quick Refrigeration Recovery Times
• Three (3) Adjustable Epoxy-Coated Shelves Per Section, Supported On Shelf Pins (installed at the factory)

Optional Accessory Kits:

• Additional Epoxy-Coated Shelves
• Plated Shelves* (for use in lieu of standard shelving)
• 6" High Adjustable Legs (for use in lieu of standard casters)
• EZ-Change Interiors (#1, universals, universal heavy-duty tray slides and shelves)
• No. 4 Type Tray Slides* To Accommodate (1) 18" x 26" Sheet Pans (equips one full section)
• No. 1 Type Tray Slides* To Accommodate either: (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• Universal Type Tray Slides* To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C.
  • Please refer to spec sheet TR35872 for optional accessory kit details.
  • All optional accessory kits are shipped separately for later installation by others at the jobsite.

Specifications:
Construction, Hardware, and Insulation

• Cabinet exterior front, louver assembly, and doors are constructed of 20 gauge stainless steel. Cabinet sides (including returns), interior and door liners are constructed of anodized aluminum. The exterior cabinet top, back, and bottom are constructed of heavy gauge aluminized steel. A set of four (4) 6" high casters are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks, and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.

Refrigeration System

•  A top-mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled, hermetic compressor, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. A 9' cord and plug are provided. Standard operating temperature is 0 to -5°F (all models are -10 degree F capable in up to 90-degree ambient.

Controller

• The easy-to-use water-resistant microprocessor control system is supplied standard. It ­includes a 3-Digit LED Display, and a Fahrenheit or Celsius Temperature Scale Display Capability.

Interior

• Standard interior arrangements include three (3) epoxy-coated wire shelves per section, mounted on shelf pins, installed at the factory. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs.

Warranties

• Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
