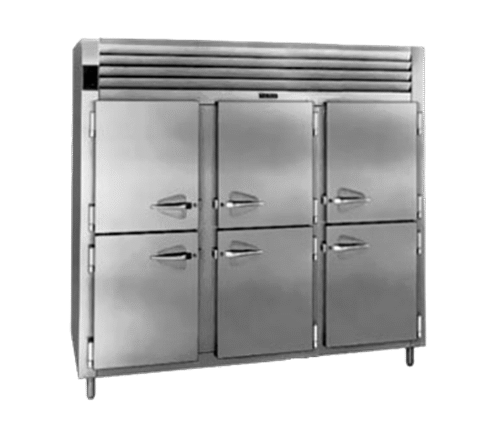

Traulsen AHT332WUT-HHS 86.13'' 79 cu. ft. Top Mounted 3 Section Solid Half Door Reach-In Refrigerator
MPN#: AHT332WUT-HHS
Free Freight?
Quick Ship
Energy Star ?Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$27,826.43 /
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Calculate
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
Traulsen AHT332WUT-HHS Specifications
| Amps | 11.8 Amps |
|---|---|
| Refrigerator Capacity | 79 cu. ft. |
| Door Size | Half |
| Hinge Location | Left/Right |
| Construction | Stainless Steel and Aluminum |
| Half Doors | Yes |
| Brand | Traulsen |
| Refrigerant Type | R-134A |
| Energy Efficiency | Energy Star |
| Certifications | ETL |
| Interior Finish | Aluminum |
| Number of Doors | 6 |
| Type | Reach In |
| Refrigeration System | Self-contained |
| Capacity | 71 - 121 cu. ft. |
| Compressor Location | Top Mounted |
| Door Type | Solid |
| Sections | 3 |
| Temperature Range | 34 - 38 Degrees F |
| Voltage | 115 Volts |
| Width (in) | 86.13 |
| Height (in) | 83.25 |
| Depth (in) | 35 |
| Weight | 940 |
Additional Information on Traulsen AHT332WUT-HHS
warrantysheet.pdf
trayracks.pdf
accessorykits.pdf
exteriorlaminates.pdf
traulsensmartconnect.pdf
remotemodels.pdf
sellsheet.pdf
quick-start-guide.pdf
shipping-dimensions-product-weights.pdf
traulsen-aht332wut-hhs.specsheet.pdf
owner-s-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen AHT332WUT-HHS Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen AHT332WUT-HHS Description
Spec-Line Refrigerator, Reach-in, three-section, 79.0 cu. ft., self-contained refrigeration, StayClear™ Condenser, stainless steel exterior, aluminum interior, standard depth, wide half-height door or doors with EZ-Clean Gaskets, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, 3/4 hP, cETLus, ETL-Sanitation, ENERGY STAR®
Looking for a spacious reach-in refrigerator that offers storage flexibility to meet your needs? This unit from Traulsen may be for you. This commercial refrigerator has a storage capacity of 79 cubic feet split into three sections. Each section comes with solid half-height doors, which means you can separately access the top and bottom portions. With the tough stainless steel exterior and aluminum interior, this unit is no doubt built for heavy work. It is an innovative piece of equipment too with its innovative design elements on board. You've got the microprocessor controls that help you make the proper adjustments with excellent precision to tailor the results. The StayClear condenser keeps grease and dirt build-up under control to maintain the coils and compressor without frequent cleanings.
CKitchen is your top source for state-of-the-art commercial refrigerators and freezers. We have everything you need right here to build the kitchen of your dreams!
CKitchen is your top source for state-of-the-art commercial refrigerators and freezers. We have everything you need right here to build the kitchen of your dreams!
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. The “W-Width” reach-in refrigerator models are all designed to offer maximum interior storage capacity. Each is supplied standard with such high quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware, and Insulation
- Biased Return Air Duct
- 9' Cord & Plug Attached
- Stainless Steel Breaker Caps
- Five Year Compressor Warranty
- Scroll Blower Type Evaporator Fan
- Gasket-Protecting Metal Door Liner
- Guaranteed For Life Cam-Lift Hinges
- Three Year Parts And Labor Warranty
- R-Series: Stainless Steel Exterior & Interior
- Stainless Steel One-Piece Louver Assembly
- Magnetic Snap-In EZ-Clean Door Gasket(s)
- Automatically Activated Incandescent Lights
- Thermostatic Expansion Valve Metering Device
- Automatic Non-Electric Condensate Evaporator
- INTELA-TRAUL® Microprocessor Control System
- Full or Half Length Stainless Steel Doors With Locks
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Guaranteed For Life Horizontal Work Flow Door Handle
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Balanced, Self-Contained Refrigeration System Using R-134a
- Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
- Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available)
- Kool Klad Exterior Laminate Decor
- Bare Tube Coil (132W & 232W only)
- Remote For Use With 20°F Glycol System
- Optional 220/50/1 or 208/115/60/1 Voltages
- EZ-Open Foot Pedal (full height doors only)
- Locking Hasps (padlocks supplied by others)
- Stainless Steel Finished Back With Rear Louvers
- Remote Monitoring (monitoring supplied by E-Control)
- Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs
- Remote Applications (see form TR35837 for more details)
- Additional Wire Shelves or Optional Stainless Steel Shelves
- Clear Glass Door(s) In Place Of One Or More Solid Door(s)
- Other Support Options: 4-1/2" High Base or 6" High Kickplate
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
- EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
- No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
- Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans
Construction, Hardware, and Insulation
- Cabinet exterior front, one-piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
- Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
| Features | |
|---|---|
| Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
| Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
| Warranties: | Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. |
| Options & Accessories: | • Stainless Steel Finished Back With Rear Louvers • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans • Additional Wire Shelves or Optional Stainless Steel Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Bare Tube Coil (132W & 232W only) • Locking Hasps (padlocks supplied by others) • Optional 220/50/1 or 208/115/60/1 Voltages • Kool Klad Exterior Laminate Decor • Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs • Other Support Options: 4-1/2" High Base or 6" High Kickplate • Remote Applications (see form TR35837 for more details) • Remote For Use With 20°F Glycol System • Clear Glass Door(s) In Place Of One Or More Solid Door(s) • Remote Monitoring (monitoring supplied by E-Control) |
| Refrigeration System: | A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F. |
| Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handle • Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available) • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty |
| Interior: | Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed. |
