Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.

Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans • Additional Wire Shelves or Optional Stainless Steel Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Bare Tube Coil (132W & 232W only) • Locking Hasps (padlocks supplied by others) • Optional 220/50/1 or 208/115/60/1 Voltages • Kool Klad Exterior Laminate Decor • Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs • Other Support Options: 4-1/2" High Base or 6" High Kickplate • Remote Applications (see form TR35837 for more details) • Remote For Use With 20°F Glycol System • Clear Glass Door(s) In Place Of One Or More Solid Door(s) • Remote Monitoring (monitoring supplied by E-Control)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handle • Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available) • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty

A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.

The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.

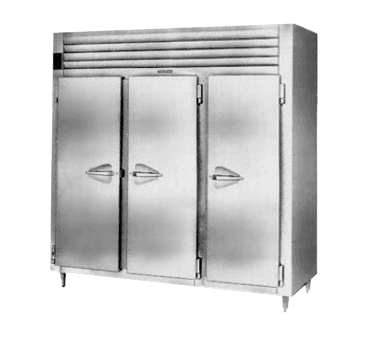

Traulsen AHT332WUT-FHS 86.13'' 79 cu. ft. Top Mounted 3 Section Solid Door Reach-In Refrigerator

Name: Traulsen AHT332WUT-FHS 86.13'' 79 cu. ft. Top Mounted 3 Section Solid Door Reach-In Refrigerator
Brand: Traulsen
SKU: AHT332WUT-FHS
Price: 26926.52 USD
Availability: InStock

MPN#: AHT332WUT-FHS

Traulsen AHT332WUT-FHS 86.13'' 79 cu. ft. Top Mounted 3 Section Solid Door Reach-In Refrigerator

Free Freight?

Quick Ship

Energy Star ?

Products with Energy Star certification are designed to be more energy-efficient to maximize savings.

$26,926.52 /

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

Product Protection

Starting at

2023 model, meets the newest EPA and DOE codes.
Usually ships in 4-6 weeks

Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

View all Traulsen Reach-In Refrigerators

Traulsen AHT332WUT-FHS Specifications

Amps	11.8 Amps
Refrigerator Capacity	79 cu. ft.
Door Size	Full
Hinge Location	Left/Right
Half Doors	No
Construction	Stainless Steel and Aluminum
Brand	Traulsen
Refrigerant Type	R-134A
Energy Efficiency	Energy Star
Certifications	ETL
Interior Finish	Aluminum
Number of Doors	3
Type	Reach In
Refrigeration System	Self-contained
Capacity	71 - 121 cu. ft.
Compressor Location	Top Mounted
Door Type	Solid
Sections	3
Temperature Range	34 - 38 Degrees F
Voltage	115 Volts
Width (in)	86.13
Height (in)	83.25
Depth (in)	35
Weight	940

Additional Information on Traulsen AHT332WUT-FHS

warrantysheet.pdf

sellsheet.pdf

trayracks.pdf

traulsensmartconnect.pdf

remotemodels.pdf

exteriorlaminates.pdf

accessorykits.pdf

quick-start-guide.pdf

traulsen-aht332wut-fhs.specsheet.pdf

shipping-dimensions-product-weights.pdf

owner-s-manual.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Traulsen AHT332WUT-FHS Certifications

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Features
Interior:	Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory and EZ-Change interior slides (only) are field installed.
Warranties:	Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.
Options & Accessories:	• Stainless Steel Finished Back With Rear Louvers • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans • Additional Wire Shelves or Optional Stainless Steel Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Bare Tube Coil (132W & 232W only) • Locking Hasps (padlocks supplied by others) • Optional 220/50/1 or 208/115/60/1 Voltages • Kool Klad Exterior Laminate Decor • Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs • Other Support Options: 4-1/2" High Base or 6" High Kickplate • Remote Applications (see form TR35837 for more details) • Remote For Use With 20°F Glycol System • Clear Glass Door(s) In Place Of One Or More Solid Door(s) • Remote Monitoring (monitoring supplied by E-Control)
Standard Product Features:	• R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handle • Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available) • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty
Refrigeration System:	A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
Controller:	The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Construction, Hardware and Insulation:	Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
