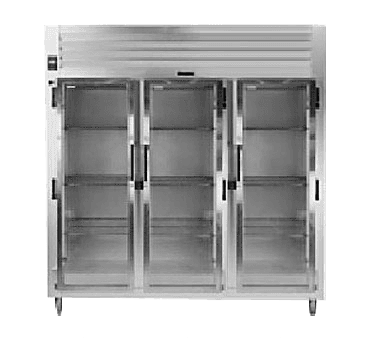

Traulsen AHT332W-FHG 86.13'' 79 cu. ft. Top Mounted 3 Section Glass Door Reach-In Refrigerator
MPN#: AHT332W-FHG
Free Freight?
Quick Ship
$28,952.55
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Calculate
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
- NOTE! Requires remote refrigeration system (not included)
Traulsen AHT332W-FHG Specifications
| Refrigerator Capacity | 79 cu. ft. |
|---|---|
| Door Size | Full |
| Hinge Location | Left/Right |
| Half Doors | No |
| Construction | Steel |
| Brand | Traulsen |
| Refrigerant Type | R-134A |
| Certifications | ETL |
| Interior Finish | Aluminum |
| Number of Doors | 3 |
| Type | Reach In |
| Capacity | 71 - 121 cu. ft. |
| Compressor Location | Top Mounted |
| Door Type | Glass |
| Sections | 3 |
| Temperature Range | 34 - 38 Degrees F |
| Voltage | 115 Volts |
| Width (in) | 86.13 |
| Height (in) | 83.25 |
| Depth (in) | 35.5 |
| Weight | 850 |
Additional Information on Traulsen AHT332W-FHG
warrantysheet.pdf
traulsensmartconnect.pdf
sellsheet.pdf
trayracks.pdf
ownersmanual.pdf
exteriorlaminates.pdf
shippingdimensionsproductweights.pdf
accessorykits.pdf
quickstartguide.pdf
remotemodels.pdf
traulsen-aht332w-fhgspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen AHT332W-FHG Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen AHT332W-FHG Description
Spec-Line Refrigerator, Reach-in Display, three-section, 79.0 cu. ft., designed for remote refrigeration, stainless steel exterior, aluminum interior, standard depth, wide full-height glass door or doors with EZ-Clean Gaskets, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, cETLus, ETL-Sanitation
With a spacious 79-cubic-foot aluminum interior, this reach-in refrigerator from Traulsen is a supersized cold storage solution for operators looking to place their products directly in front of customers. Made of stainless steel on the outside and aluminum on the inside, this unit is well-equipped to perform in the most demanding environments while still looking effortlessly sleek. The full-height glass doors put all the arrangement of merchandise in view while interior lights brightly illuminate the interior for added presentation and easier product identification. The microprocessor controls offer enhanced precision to ensure desired cooling performance. This commercial refrigerator is used with a remote refrigeration system.
Build the ultimate kitchen for your operation with our premium-quality commercial refrigerators and freezers.
Build the ultimate kitchen for your operation with our premium-quality commercial refrigerators and freezers.
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. These “W-Width” reach-in refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware, and Insulation
- Biased Return Air Duct
- 9' Cord & Plug Attached
- Stainless Steel Breaker Caps
- Five Year Compressor Warranty
- Magnetic Snap-In Door Gaskets
- Scroll Blower Type Evaporator Fan
- One Year Parts And Labor Warranty
- Guaranteed For Life Cam-Lift Hinges
- Stainless Steel Vertical Door Handle(s)
- Incandescent Lights With Exterior Switch
- R-Series: Stainless Steel Exterior & Interior
- Stainless Steel One-Piece Louver Assembly
- Two Year Control Warranty (parts and labor)
- Thermostatic Expansion Valve Metering Device
- Automatic Non-Electric Condensate Evaporator
- INTELA-TRAUL® Microprocessor Control System
- Full or Half Length Hinged Glass Doors With Locks
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Balanced, Self-Contained Refrigeration System Using R-134a
- Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
- Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available)
- Fluorescent Lights
- Additional Wire Shelves
- Re-Hinging Feature For Door(s)
- Two Year Service/Labor Warranty Available
- Stainless Steel Finished Back With Rear Louvers
- 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
- Set of Four (4) 6" High Casters or 4-5/8" In Lieu of Legs
- Remote Applications (see spec sheet TR35837 for details)
- No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans, Adjustable To 2" O.C.
- No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam Table Pans, Adjustable To 2" O.C.
- No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
- Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C.
Construction, Hardware, and Insulation
- Cabinet exterior front, one-piece sides, and louver assembly are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against the introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 34 to 38°F.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third-party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, and an RS485 data port. In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and optional interior arrangements are completely installed at the factory.
- Both a one-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition, the INTELA-TRAUL® control is warranted by a two-year parts and labor warranty.
| Features | |
|---|---|
| Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides and louver assembly are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
| Warranties: | Both a one year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition the INTELA-TRAUL® control is warranted by a two year parts and labor warranty |
| Options & Accessories: | • Stainless Steel Finished Back With Rear Louvers • Fluorescent Lights • Re-Hinging Feature For Door(s) • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C. • No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans, Adjustable To 2" O.C. • No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam Table Pans, Adjustable To 2" O.C. • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. • Additional Wire Shelves • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1 • Set of Four (4) 6" High Casters or 4-5/8" In Lieu of Legs • Remote Applications (see spec sheet TR35837 for details) • Two Year Service/Labor Warranty Available |
| Interior: | Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and optional interior arrangements are completely installed at the factory |
| Refrigeration System: | A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F. |
| Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, and an RS485 data port. In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
| Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Hinged Glass Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Stainless Steel Vertical Door Handle(s) • Standard Door Hinging: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available) • Incandescent Lights With Exterior Switch • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In Door Gaskets • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • One Year Parts And Labor Warranty • Two Year Control Warranty (parts and labor) • Five Year Compressor Warranty |
