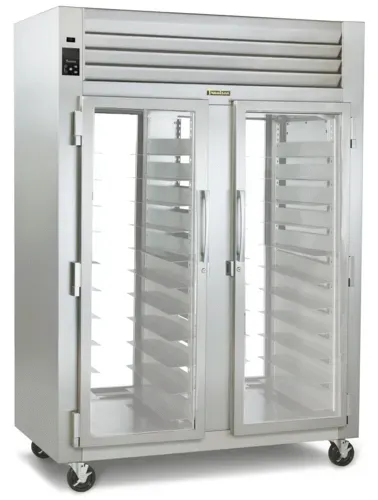

Traulsen AHT232WPUT-FHG 58'' 54.2 cu. ft. 2 Section Glass Door Pass-Thru Refrigerator
MPN#: AHT232WPUT-FHG
Free Freight?
Quick Ship
Energy Star ?Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$28,354.10
Contact us for your price
Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
Calculate
Product Protection
Starting at
- 2023 model, meets the newest EPA and DOE codes.
- Usually ships in 4-6 weeks
Traulsen AHT232WPUT-FHG Specifications
| Amps | 11 Amps |
|---|---|
| Refrigerator Capacity | 54.2 cu. ft. |
| Door Size | Full |
| Half Doors | No |
| Hinge Location | Right |
| Door Hinge | Right Hinged |
| Construction | Stainless Steel and Aluminum |
| Brand | Traulsen |
| Refrigerant Type | R-134A |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | ETL |
| Number of Doors | 4 |
| Refrigeration System | Self-contained |
| Capacity | 47 - 70 cu. ft. |
| Compressor Location | Top Mounted |
| Door Type | Glass |
| Sections | 2 |
| Temperature Range | 34 - 38 Degrees F |
| Voltage | 115 Volts |
| Width (in) | 58 |
| Height (in) | 83.25 |
| Depth (in) | 37.94 |
| Weight | 745 |
Additional Information on Traulsen AHT232WPUT-FHG
warrantysheet.pdf
ownersmanual.pdf
exteriorlaminates.pdf
sellsheet.pdf
accessorykits.pdf
quickstartguide.pdf
remotemodels.pdf
trayracks.pdf
traulsensmartconnect.pdf
shippingdimensionsproductweights.pdf
traulsen-aht232wput-fhgspecsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Traulsen AHT232WPUT-FHG Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Traulsen AHT232WPUT-FHG Description
Spec-Line Refrigerator, Pass-thru Display, two-section, self-contained refrigeration, StayClear™ Condenser,variable speed compressor, stainless steel exterior, aluminum interior, standard depth, wide full-height glass door or doors with EZ-Clean Gaskets, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, R-290 Hydrocarbon refrigerant, 1/2 hP, cETLus, ETL-Sanitation, ENERGY STAR®
With wide full-height glass doors and interior lighting, this pass-through refrigerator from Traulsen provides a bright view of the contents, making it easy for kitchen staff or servers to find what they need. The unit provides front and back access, so products can simply move from one station to another swiftly and seamlessly. This commercial refrigerator maintains optimal performance using advanced technology including the StayClear condenser, which reduces regular cleanings by keeping grease and dirt from clogging up the coils. The microprocessor controls offer excellent precision to ensure the desired operating temperature at all times.
Equip your kitchen with only the best pass-thru refrigerators and freezers available at amazing prices only here at CKitchen! Planning your entire cold storage setup? Browse our full line of commercial refrigerators and freezers to find the most suitable units for your specific needs.
Equip your kitchen with only the best pass-thru refrigerators and freezers available at amazing prices only here at CKitchen! Planning your entire cold storage setup? Browse our full line of commercial refrigerators and freezers to find the most suitable units for your specific needs.
Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. These “W-Width” pass-thru refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high quality features as balanced refrigeration systems, microprocessor controls, communications ability and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
Construction, Hardware, and Insulation
- Biased Return Air Duct
- 9' Cord & Plug Attached
- Stainless Steel Breaker Caps
- Five Year Compressor Warranty
- Scroll Blower Type Evaporator Fan
- Stainless Steel Vertical Door Handles
- Guaranteed For Life Cam-Lift Hinges
- Three Year Parts And Labor Warranty
- Incandescent Lights With Exterior Switch
- R-Series: Stainless Steel Exterior & Interior
- Magnetic Snap-In EZ-Clean Door Gasket(s)
- Stainless Steel One-Piece Louver Assembly
- Thermostatic Expansion Valve Metering Device
- Automatic Non-Electric Condensate Evaporator
- INTELA-TRAUL® Microprocessor Control System
- Controllable Anti-Condensate Door Perimeter Heaters
- Set of Four (4) 6" High Adjustable Stainless Steel Legs
- Self-Closing Doors With Stay Open Feature At 120 Degrees
- A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
- Balanced, Self-Contained Refrigeration System Using R-134a
- Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
- Full or Half Length Hinged Glass Doors With Locks (full-length doors n/a for three-section models)
- Standard Door Hinging F & R: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available)
- Fluorescent Lights
- Additional Wire Shelves
- Re-Hinging Feature For Door(s)
- Kool Klad Exterior Laminate Decor
- Bare Tube Coil (132WP & 232WP only)
- Set of Four (4) 6" High Casters In Lieu of Legs
- 4-1/2" High Stainless Steel Base In Lieu of Legs
- 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
- Set of Four (4) 4-5/8" High Casters In Lieu of Legs
- Remote Monitoring (monitoring supplied by E-Control)
- Remote Applications (see spec sheet TR35837 for details)
- 6" High Stainless Steel Kickplate (for use with standard legs)
- No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Pans
- EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
- No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
- Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C.
Construction, Hardware, and Insulation
- Cabinet exterior front, one-piece sides, and louver assembly are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
- A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
- The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems®, and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
- Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory.
- Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.
| Features | |
|---|---|
| Construction, Hardware and Insulation: | Cabinet exterior front, one piece sides and louver assembly are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane. |
| Interior: | Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory |
| Options & Accessories: | • Fluorescent Lights • Re-Hinging Feature For Door(s) • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Pans • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. • Additional Wire Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • Bare Tube Coil (132WP & 232WP only) • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1 • Kool Klad Exterior Laminate Decor • Set of Four (4) 6" High Casters In Lieu of Legs • Set of Four (4) 4-5/8" High Casters In Lieu of Legs • 4-1/2" High Stainless Steel Base In Lieu of Legs • 6" High Stainless Steel Kickplate (for use with standard legs) • Remote Applications (see spec sheet TR35837 for details) • Remote Monitoring (monitoring supplied by E-Control) |
| Warranties: | Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard. |
| Refrigeration System: | A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F. |
| Controller: | The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption. |
| Standard Product Features: | • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Hinged Glass Doors With Locks (full length doors n/a for three-section models) • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Stainless Steel Vertical Door Handles • Standard Door Hinging F & R: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available) • Incandescent Lights With Exterior Switch • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty |
