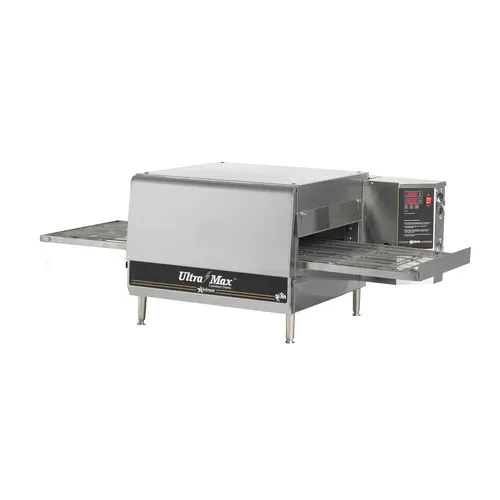

Star UM1850A Ultra-Max® Electric 6.4 kW 50" Wide Countertop Impingement Conveyor Oven
MPN#: UM1850A
1/2
Free Freight?
Quick Ship
$12,400.00 /
Sign-In here for more information
Calculate
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Star UM1850A Specifications
| Total BTU | 40000 - 110000 BTU |
|---|---|
| Control Type | Dials / Buttons |
| Heating Style | Impingement |
| Belt Length | Medium |
| Deck | Single |
| Belt Width | Standard |
| Production | Standard |
| Oven Interior Style | Standard Depth |
| Brand | Star |
| Certifications | cULus |
| Power Type | Electric |
| Size | Half |
| BTU | 40,000 BTU |
| Heat | Electric |
| Number of Belts | 1 |
| Voltage | 208 Volts |
| Wattage | 6300 - 20000 Watts |
| Width (in) | 50 |
| Height (in) | 20 |
| Depth (in) | 30.4 |
| Weight | 290.00 |
Additional Information on Star UM1850A
middleby-financial-flyer.pdf
warranty-sheet.pdf
startup-checklist.pdf
star-um1850a.specsheet.pdf
installation-operation.pdf
oven-belt-reversing-instructions.pdf
stacking-details.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Star UM1850A Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
Star UM1850A Description
Ultra-Max® Impingement Conveyor Oven, electric, countertop, single deck, 50" conveyor length, 18" wide x 24" length cook chamber, programmable controls for (6) menu presets, conveyor left-to-right standard, field convertible for right-to left, stainless steel bake chamber with easy-to-clean impingement fingers, stainless steel construction, cULus, UL EPH (Includes factory paid start-up, contact factory for details)
Standard Features:
- 6-50 NEMA plug and a 6’ cord with oil resistant cover
- Integrated fan pulls in outside air to cool control box keeping key components cooler resulting in longer life
- Removable Countertop Oven front panel for easy cleaning the baking chamber and changing nozzle plates
- Easy-to-use electronic controls with LED display and six (6) factory presets for products from pizza to cookies
- Powerful 6000 watt metal sheath elements, conveyor belt motor and centrifugal fan motor provide years of reliable operation
- Includes Factory Paid Start-up! Contact Star Manufacturing for details. Note: Start-up by factory approved service agent affects warranty policy
- 18” Wide stainless steel conveyor oven belt available in 33 or 50” lengths, 24” baking chamber and adjustable 1.5-4” product opening accommodate a variety of products
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Ovens are available.
Options & Accessories
- UMEXIT11 - Conveyor Exit Shelf
- UMEXIT8 - Conveyor Exit Shelf 3 85
- UMENTRY6 - Conveyor Entry Shelf 3 85
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
