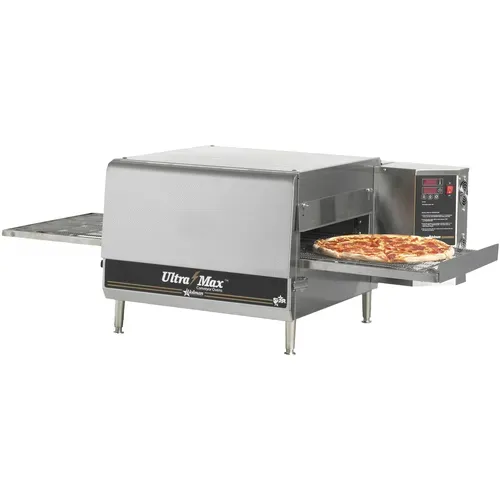

Star UM1833A Ultra-Max® Electric 6.4 kW 37.2" Wide Countertop Impingement Conveyor Oven
MPN#: UM1833A
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
- Please see specification sheet for installation clearance requirements
Star UM1833A Accessories
Description
Star UM1833A Description
Ultra-Max® Impingement Conveyor Oven, electric, countertop, single deck, 33" conveyor length, 18" wide x 24" length cook chamber, programmable controls for (6) menu presets, conveyor left-to-right standard, field convertible for right-to left, stainless steel bake chamber with easy-to-clean impingement fingers, stainless steel construction, cULus, UL EPH (Includes factory paid start-up, contact factory for details)
Standard Features:
- 6-50 NEMA plug and a 6’ cord with oil resistant cover
- Integrated fan pulls in outside air to cool control box keeping key components cooler resulting in longer life
- Removable Countertop Oven front panel for easy cleaning the baking chamber and changing nozzle plates
- Easy-to-use electronic controls with LED display and six (6) factory presets for products from pizza to cookies
- Powerful 6000 watt metal sheath elements, conveyor belt motor and centrifugal fan motor provide years of reliable operation
- Includes Factory Paid Start-up! Contact Star Manufacturing for details. Note: Start-up by factory approved service agent affects warranty policy
- 18” Wide stainless steel conveyor oven belt available in 33 or 50” lengths, 24” baking chamber and adjustable 1.5-4” product opening accommodate a variety of products
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Ovens are available.
Options & Accessories
- UMEXIT11 - Conveyor Exit Shelf
- UMEXIT8 - Conveyor Exit Shelf 3 85
- UMENTRY6 - Conveyor Entry Shelf 3 85
Options
Q & A
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
Star UM1833A Specifications
| Total BTU | 40000 - 110000 BTU |
|---|---|
| BTU | 54,000 BTU |
| Control Type | Dials / Buttons |
| Heating Style | Impingement |
| Deck | Single |
| Belt Width | Standard |
| Belt Length | Standard |
| Production | Standard |
| Oven Interior Style | Standard Depth |
| Brand | Star |
| Certifications | cULus |
| Power Type | Electric |
| Size | Half |
| Heat | Electric |
| Number of Belts | 1 |
| Voltage | 208 Volts |
| Wattage | 6300 - 20000 Watts |
| Width (in) | 37.2 |
| Height (in) | 20 |
| Depth (in) | 30.4 |
| Weight | 272.00 |
