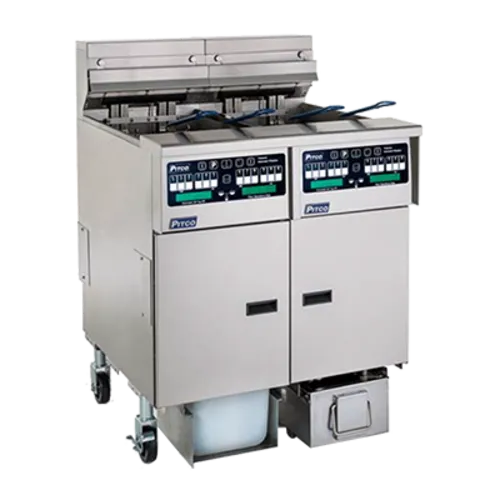

Pitco SELV14C-2/FD (2) 30 lb. Fry Tanks Electric Floor Fryer with Computer Controls and Solstice Filter Drawer System, 208 Volts
Calculate
Pitco SELV14C-2/FD Specifications
| Number of Fry Pots | 2 |
|---|---|
| Control Type | Computer |
| Burner Style | Grates |
| Plug Type | NEMA 15-60PВ |
| Filtration System | Solstice Filter Drawer System |
| Cabinet | Stainless Steel |
| Brand | Pitco Frialator |
| Certifications | CE |
| Capacity | (2) 30 lb. Frypots |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 34.0 Kilowatts |
| Width (in) | 31.25 |
| Height (in) | 45.75 |
| Depth (in) | 30 |
Additional Information on Pitco SELV14C-2/FD
middleby-financial-flyer.pdf
installation-operation.pdf
pitco-selv14c-2-fd.specsheet.pdf
brochure.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Pitco SELV14C-2/FD Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Pitco SELV14C-2/FD Description
Operations that require a reliable and efficient dual electrical fryer system can’t go wrong with a Frialator SELV14C-2/FD Solstice Reduced Oil Volume Electric Multi-Battery Fryer System from Pitco. With a total of 30 lbs of capacity in each tank, this dual fryer configuration’s twin 13.5” x 14.8” tanks are easy to clean and maintain.
The Intellifry Computer that comes with this model makes sure that food cooked is always done consistently as easily as possible. This controller can be programmed by an operator to achieve the results they want for 12 cooking modes and users will only need to select the right mode to get the best results every time. To keep everyone in the kitchen safe this fryer has a high-temperature safety switch and a drain valve interlock. To make sure food is always removed from frying oil on time, an optional basket lift system is available for these fryers.
To extend the life of the oil and reduce operational costs, this fryer features the Solstice filtration system which is a quick two-step process that removes debris from the oil to preserve the taste of food fried in the oil. This filtration unit uses a stainless steel drawer at the bottom of one of the fryers that hold a 10” 20.5” filter envelop that traps debris. To make this process quick a ⅓ HP filter pump moves oil at a rate of 4.5 GPM.
To replace any oil lost to drag out, this unit comes with a Jug In Box (JIB) that holds 35 lbs of oil tucked underneath one of the fryers. Oil is added via a simple push-button. This large reservoir of oil reduces the need for workers to carry heavy jugs of oil through a busy kitchen just to top off a fryer. When the oil in the JIB is running low, the system will let users know.
This durable fryer features stainless steel construction on the door, tank, sides, and front making it easy to clean and maintain. The frying oil is efficiently heated by fixed immersion-type heating elements that feature high-temperature alloy sheathing and contactors that are free of mercury. Each of these fryers uses 17 kW/hr of power.
Standard Features:
- Intellifry Computer, 12 products.
- Mercury-free heating contractors.
- Tank - Stainless Steel Construction.
- Cabinet - stainless steel front, door, & sides.
- 9” (22.9 cm) adjustable legs for leveling fryer.
- 1-1/4” (3.2cm) full port drain valve for fast draining.
- Easy lift out immersion elements for easy clean up.
- Push button frypot oil replenishment system. 35 Lb JIB holder1 and low JIB indicator.
- Cooks like a 50 lb fryer with just 30 lbs of oil. Uses standard baskets. Provides full 4” cook depth.
- FILTER SOON production monitor, tracks cooking activity per frypot, and indicates when filtration is needed.
- 4.5 gpm (17.0 LPM) filter pump.
- Filter pan lid is self-storing and out of the way.
- Filtered oil return fitting assists cleaning frypot bottom.
- Filter pan is stainless steel. Rear wheels ease handling.
- Large, 10.0” x 20.5” filter envelope for fast filtering all day.
- Simple two step filtration process makes filtering easy and fast. Under 5 minutes in most circumstances.
- Extra large 3” (7.6 cm) drain lines with unique curved design drain spout virtually eliminates splashing. Spout swivels for ease of oil disposal.
- 1- Fryer crumb scoop
- 1- Filter shovel scoop
- 1- Drain clean out rod
- 1- Fryer cleaning brush
- X- twin size fry baskets (2 / frypot)
- 1- 10.0” x 20.5” Filter media starter pack
- X -Removable basket hangers (1 / frypot)
- Tank covers
- Automatic frypot oil level control system
- Computer controlled auto filtration system
- Work shelves, Consult factory for availability
- Assorted basket configurations, consult factory
- Automatic Basket Lifts, P6072145 Baskets Only
- BNB Dump Station, see BNB spec sheet for details
- 9” (22.8 cm) adjustable casters ease moving equipment for cleaning
- 6’ (183 cm) NEMA 15-60P cordset (14 KW and 17KW 208V &240V 3 phase only). 1 per fryer.
- Filter System Options: Paperless filter, Frypot flush hose and Waste Oil Management hook up.
- (Requires 2 or more fryers in a system for internal JIB storage. Assumes: Oil to be filtered is >180°F, that the filter media is not excessively covered with sediment, and is changed at recommended intervals.)
Pitco reduced oil volume/high output frying systems are designed and engineered for operators who need to reduce operating costs and maintain high production. Operators benefit immediately with a 40% reduction in oil on the first fill up, and at every oil change after that. Time between oil changes is significantly extended due to the low initial fill volume. As with all “low oil” fryers, oil filtration occasionally during operation is a key to maximizing oil life to the greatest degree possible. The FILTER SOON feature is production based and takes the guesswork out of when to filter, and it is easy to customize to your menu. Proven PITCO Solstice filter system is fast and simple to use. Whenever business levels permit, filtering and reheating can be accomplished in under 5 minutes*. A fast and easy push button frypot top off feature reduces the need for staff to carry heavy jugs through the kitchen. The top off feature integrates a typical 35 lb. oil JIB (Jug In Box) as an on board fresh oil supply1. A “jug low” warning indicator, and easy JIB changes are user friendly features. Add auto filtration option for additional operational benefits.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
