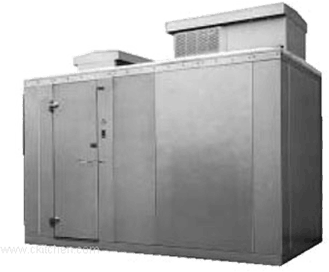

Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor

SKU#: KODF771014-C
Made in USA
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
Nor-Lake KODF771014-C 10' x 14' x 7'-7" H Kold Locker Outdoor Freezer with floor
1/17
Free Freight?
Quick Ship
$25,032.03

for more information

$20,726.52
or enjoy small payments $445.41/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 25032
$$$ View Nor-Lake Promos
  • A refrigeration Technician is not required.
  • 2023 model, meets the newest EPA and DOE codes.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Outdoor boxes may have special requirements from your state or municipality (building dept. etc.) Please enquire.
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666
Nor-Lake View all Nor-Lake Walk-In Freezers

Nor-Lake KODF771014-C Specifications

SeriesKold Locker
BrandNor-Lake
Made inUSA
Temperature-10
Gauge26 Gauge
CategoryWalk In Freezer, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloorless
UsageOutdoor
Width (in)120
Height (in)91
Depth (in)168
Weight2803.00

Additional Information on Nor-Lake KODF771014-C

nor-lake-kodf771014-c.specsheet.pdf nor-lake-kodf771014-c.specsheet.pdf capsule-pak-spec-sheet.pdf capsule-pak-spec-sheet.pdf capsule-pak-manual.pdf capsule-pak-manual.pdf warranty.pdf warranty.pdf owner-s-manual.pdf owner-s-manual.pdf nor-lake-kodf771014-c.specsheet.pdf nor-lake-kodf771014-c.specsheet.pdf flyer.pdf flyer.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Nor-Lake KODF771014-C Description

Kold Locker™, Outdoor -10°F Freezer, 10' x 14' x 7'-7" H, with floor, 26 gauage embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, membrane roof, CPF200JC-E-4-EV, R449 Capsule Pak Refrigeration, 208-230v/60/1-ph
Kold Locker *Walk-In Freezers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KODF771014-C

Door width
Celsius thermometer, lights & trim
Door rain hood
Door ramp & non-skid strips
Lift gate delivery
NOTE:
Freight
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • NOTE:: Outdoor walk-ins shipping to the state of Florida or any other area requiring hurricane wind load ratings are NOT INCLUDED in the Kold Locker™ program, please contact factory for pricing
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
