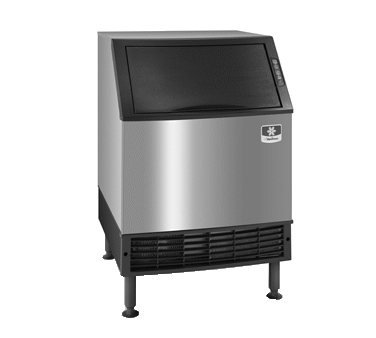

Manitowoc UYF0240A 26" Half-Dice Ice Maker With Bin, Cube-Style - 200-300 lbs/24 Hr Ice Production, Air-Cooled, 115 Volts
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Contact us for your price
Mon-Fri 9AM-8PM, Sun 12-6PM ET
Why don't we show the price for this item?
- Exclusive offer: 50% OFF (already discounted price) Manitowoc matching filter.
- 2023 model, meets the newest EPA and DOE codes.
Manitowoc UYF0240A Accessories
Packages
Description
Manitowoc UYF0240A Description
The UYF-0240A NEO™ air-cooled ice machine from Manitowoc Ice packs efficiency and convenience in a space-saving undercounter workhorse that can deliver up to 219 lbs of half-dice ice (or half size cubes). This 26" wide, 28" deep, and 38.5" tall commercial ice machine has a built-in bin that can store up to 90 lbs of ice. By simply sliding up the angled door, you can access and scoop up the ice cubes to chill drinks and fill buckets or pitchers.
As part of the line of Manitowoc NEO ice machines, this unit promises reliable performance you can control and monitor whenever you need to. The indicator panel, conveniently placed at the front of the bin where it will be easiest to access, features a set of display icons that correspond to ice-making and performance monitoring processes to make the operation much easier. With a quick look, you can immediately confirm when the unit is making ice, going through a cleaning cycle, when the ice bin is full, or when a problem has come up that needs immediate attention. This panel also features a delay button that lets you disrupt the production for a set number of hours to mitigate any waste or needless energy consumption.
This undercounter ice machine won't bog you down with endless cleaning sessions. The sealed foodzone is easy to scrub up with cleanable parts removable to allow for thorough washing and sanitizing. The internal components are molded with AlphaSan to guard against microbes. An air filter keeps away the lint, grease, and dirt to keep the condenser running smoothly. This air filter can also be easily removed and thrown into the dishwasher for cleaning. When it comes to servicing there is no need to remove the unit from its current place; it is as easy as sliding the storage bin forward to access the refrigeration components. This Manitowoc ice maker also has 6" adjustable legs with flanged feet painted gray to make setup and cleaning the floors much easier while ensuring the unit remains firm in its place.
The Manitowoc UYF-0240A NEO™ ice machine with bin meets NSF and cULus standards for health and safety. This model features a 1/3 hp compressor and is supplied with a 6' cord and NEMA 5-15P plug. Water filters and other convenient accessories can be availed below. Looking for an ice machine head only unit instead? Check out our Indigo Series ice machines.
Improved Performance and Energy Efficiency
- Produces more ice with less energy and water consumption
- Reduced ownership costs over the unit's service life
Easy-Setup Air-Cooled System and Compact Package
- No side vents to fit and function excellently under a countertop or next to another piece of equipment
- Air-cooled system reduces water expenses and is very easy to set up
- The refrigeration system is packed in the unit for immediate use upon delivery
Smart and User-Friendly Controls and On-the-Spot Feedback
- Control panel with illuminated icons
- POWER button to turn the unit on and off; indicates the machine is in ice-making mode when illuminated
- DELAY button halts ice production by 4, 12, or 24 hours to avoid unnecessary energy consumption and product waste
- CLEAN button indicates clean cycle is in progress
- FULL BIN indicator light tells operator there’s plenty of ice available for use without opening the door
- SERVICE icon illuminates in red to notify of potential problems
Simple Maintenance and Minimal Cleaning
- Dishwasher-safe air filter traps lint, grease, and dust
- Air filter can be removed with no tools needed
- Removable bin provides trouble-free access to refrigeration components to save time during service
- Water-trough, distribution tube, and damper door are all removable for proper cleaning
- AlphaSan® technology on select components guards against odors and discoloration from microbial contamination
- LuminIce® Growth Inhibitor is available separately to fight bacteria and yeast growth resulting in reduced cleanups
Half-Dice Ice Cube Features and Benefits:
- Dimensions: 3/8" x 1 1/8" x 7/8"
- 96 cubes per pound of ice
- Nearly 100% ice to water ratio for maximum cooling
- Inexpensive and quick to make
- Slow melt rate for reduced ice consumption
- Can be used in restaurants, convenience stores, schools, and majority of food establishments and institutions
- Excellent for ice bagging and bulk cooling
- Unique rhomboid shape improves appearance of drinks
- Easy to break down in blenders and crushers
Specifications:
- Production: Up to 219 lbs. of half-dice ice every 24 hours
- Ambient Temperature Range: 40-110 ̊F
- Refrigerant: CFC-Free R-404A
- Overall Dimensions: 26"W x 28"D x 38 1/2"H
- Electrical Connection: 115/60/1 (208-230/60/1 and 230/50/1 available)
- Total Amps: 115/60/1: 5 amps, 208-230/60/1: 2.5 amps
- Maximum Fuse Size: 15 amps
- BTUH: 2,150 (average) 2,600 (peak)
- Compressor Nominal Rating: .42 HP
- Safety Certifications: NSF, cULus, CE
- Performance Certification: AHRI at 90°/70°
NEO™ Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 219 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°70°), 90 lbs ice storage capacity, electronic controls, half dice size cubes, NSF, cULus, CE
- Cabinet volume 3.037 ft³ (0.086 m³)
- 90 lb. (40.0 Kg) ice storage capacity
- Up to 220 lbs (100 kg) of daily ice production
- Only 26" (66.04 cm) wide, 28.50" (72.4 cm) deep, and 38.50" (97.8 cm) high on 6" (15.24 cm) legs
- * Application capacity based on: 90% volume x 33lbs/ft3 average density of ice.
- Performance - NEO produces more ice than ever before while using less water and energy. The storage bin provides industry leading capacity.
- Intelligence - NEO provides feedback with full bin and service indicators. Delay function allows you to pause your machine for slow periods or days when you’re closed.
- Convenience - NEO offers a forward-sliding storage bin for easy access to refrigeration components without having to move the entire ice machine. Smooth, sealed food-zone with removable water trough, distribution tube, and damper door for faster cleaning. AlphaSan added to key internal components.
- Available LuminIce® Growth Inhibitor extends cleaning intervals by reducing yeast and bacteria growth keeping your ice machine cleaner, longer.
- Compressor: Nominal rating: .33 HP
- BTU Per Hour: 2,700 (average) 3,300 (peak)
- Cupra-Nickel Condenser: (Water-cooled models) Adds protection from corrosive water elements.
- Dice 7⁄8" x 7⁄8" x 7⁄8" (2.22 x 2.22 x 2.22 cm)
- Half Dice 3⁄8" x 1 1⁄8" x 7⁄8" (.95 x 2.86 x 2.22 cm)
- Regular 1 1⁄8" x 1 1⁄8" x 7⁄8" (2.86 x 2.86 x 2.22 cm)
- Removable Bin
- Air Filter - Simple, toolfree removal for quick access during routine cleaning and maintenance.
- Air Flow - Air in right, air out left, no side vents. Great for installation under countertops and next to other equipment.
Options
Reviews
Manitowoc UYF0240A Reviews
Victoria Q (Honolulu, HI)
I love this ice machine. It is super quiet and makes ice efficiently. The size is perfect for my space. Works flawlessly. No regrets. Would definitely recommend this ice machine.Recommended Product
Logan L (Chicago, IL)
Guests love the ice cubes! They're just the perfect size and keep the drinks cold for a while so they enjoy it to the last drop. It also makes things very easy for us, because it stops production on its own when the bin is full. Really keeps us moving quickly and efficiently.Recommended Product
Emily W (Denver, CO)
This ice machine produces perfect shape ice cubes. We get a lot of compliments from our customers on our cocktails with these ice cubes. The automatic system stops making ice when it's full and also this machine has a timer.Recommended Product
Pros: 2-5 year warranties
Josephine E (Anchorage, AK)
The ice machine is not loud and flawless. It would like it to have more storage for ice, but despite this it's still good. I also like the customer service.Recommended Product
Pros: 2-5 year warranties
Josephine E (Anchorage, AK)
Was looking for a new ice machine because our old one is just not cutting it anymore. CKitchen made it all super easy! Love the customer service, they go all out to help you find the right product for you. Unit was delivered on time and is working like a charm ever since! Will surely purchase here again!Recommended Product
Pros: Highest Quality Ice
Evelyn Y (Portland, ME)
Perfect size for our needs! Love how compact this ice machine is. It works reliably, and helps us out immensely day to day! Wholeheartedly recommend this one. Thanks very much Ckitchen!Recommended Product
Pros: Highest Quality Ice
Ryan D (Richmond, VA)
The unit makes ice efficiently and doesn't make a lot of noise. It's been great since day one! The only thing that would make it better is if it had larger storage space. Otherwise, it's awesome!Recommended Product
Sam S (Arkadelphia, Arkansas)
Great product, very happy with purchase, would Recommend, and buy again from Ckitchen. Use outdoorsman, ice down fish, deer meat, blach garden vegetables for freezing.
Q & A
- does it come with a one inch drain
- This has a 1/2" drain. Please let me know if you would like me to email you a quote/order cart. CKitchen Customer Solutions
- I see free shipping. No tax also?
- We have to collect tax from most states, some states are still clear of tax. CKitchen Customer Solutions
Manitowoc UYF0240A Specifications
| Type of Cooling | Air-Cooled |
|---|---|
| 24 Hr Production | 200-300 lbs |
| Type of Ice | Half-Dice |
| Bin Storage Capacity | 90 lb |
| Phase | 1 Phase |
| Water Usage | 16 Gallons per 100 lbs. |
| Amps | 3.5 Amps |
| Hertz | 60 Hertz |
| Power Usage | 7.8 kWh per 100 lbs. |
| Brand | Manitowoc |
| Certifications | cULus |
| Vendor | Manitowoc Ice |
| Voltage | 115 Volts |
| Width (in) | 26 |
| Height (in) | 38.5 |
| Depth (in) | 28.5 |
| Weight | 159.00 |
Additional Information on Manitowoc UYF0240A
Manitowoc UYF0240A Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
