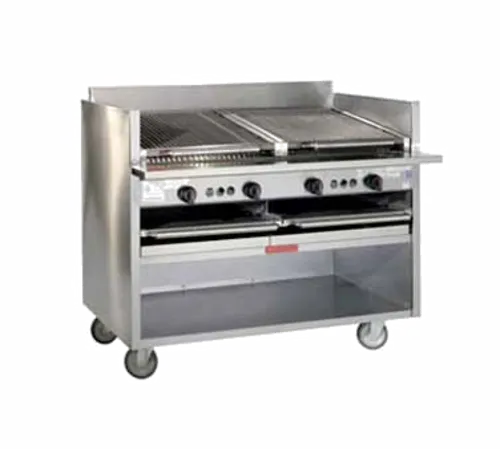

Magikitch'n FM-SMB-624 Coal Charbroiler
MPN#: FM-SMB-624
Free Freight?
Quick Ship
$9,654.00 /
Enter your email to receive the price!
Or contact us for pricing at Live Chat
Calculate
Product Protection
Starting at
Magikitch'n FM-SMB-624 Specifications
| Total BTU | 12000 - 55000 |
|---|---|
| BTU | 15,000 BTU |
| Power Type | Convertible Gas |
| Installation Type | Freestanding |
| Heating Source | Lava Rocks |
| Brand | Magikitch'n |
| Certifications | NSF |
| Number of Burners | 4 |
| Control Type | Manual |
| BTU per Burner | 15,000 BTU |
| Heat | Gas |
| Usage | Standard Duty |
| Width (in) | 24.00 |
| Height (in) | 39.5 |
| Depth (in) | 35.5 |
| Weight | 362.00 |
Additional Information on Magikitch'n FM-SMB-624
middleby-financial-flyer.pdf
brochure.pdf
installation-operation.pdf
magikitch-n-fm-smb-624.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Magikitch'n FM-SMB-624 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Magikitch'n FM-SMB-624 Description
Coal Charbroiler, floor model, gas, 24"W x 35-1/2"D x 39-1/2"H overall size, free floating round rod top grate with EZ tilt to front grease trough, ceramic briquettes, standing pilot, 6" service shelf with utility bar, water tubs, open cabinet base, top grid scraper, 6" adjustable legs, CSA Flame, CSA Star, NSF
Standard Features:
- Water Tubs
- Top Grid Scraper
- 6” adjustable legs
- Runner tube pilot system
- Single ¾” gas connection
- MEA Approved Charbroiler
- Towel bar for utensil storage
- Stainless steel on all four sides
- FM-SMB-600 - Ceramic coal screen
- 6” (15.2 cm) stainless service shelf
- All stainless steel burners for long life
- Convertible Radiant design to Coal style
- Fully Insulated double walled outer cabinet
- E-Z Tilt top grid drains grease into front trough
- FM-RMB-600 - V-shaped radiant for each burner
- Individual front burner controls for precise regulation
- Round top grid with standard spacing with quick lift handle
- Charbroiler Burners are 15Kbtu or optional High output 20Kbtu
- Free floating top grid ½” (1.3 cm) steel rods allows expansion and contraction without warping
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Options & Accessories: (Additional Cost)
- 6” casters
- Back Shelf
- Lower Rack
- Smoker Box
- Slip On Covers
- Fajita Rack Inserts
- Round Rod Top Grid
- MagiKrome Top Grids
- Divider for Pan cutouts
- Scround Rod Top Grids
- Cooking Mode Conversion Kits
- MagiGriddle (Replaces top grid)
- Service Shelf with towel bar towel bar
- Cutting Boards (10” or 12” shelves only)
- Quick Disconnect gas hose and lanyard kit
- Side and Back Extensions (N/A with back shelf)
- Pan Cutouts in Service Shelf (specify with order)
- Safety Pilot (supervised pilot system, see gas installation requirements)
- 6" Cast Iron Top Grids (3 independent adjustable positions with reversible wide and thin marking)
