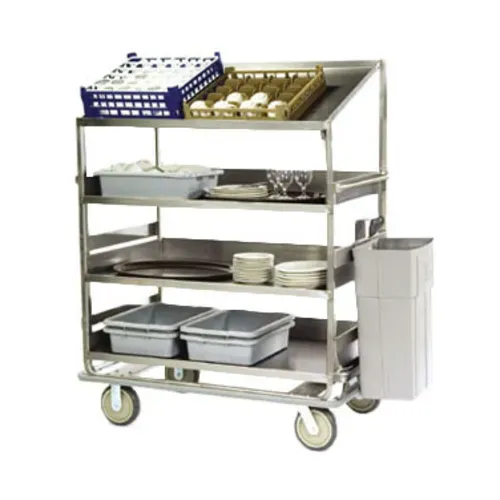

Lakeside Manufacturing B589 Soiled Dish Breakdown Cart
MPN#: B589
Free Freight?
Quick Ship
$6,162.00 /
Login or add to cart to see our price!
Calculate
Product Protection
Starting at
Lakeside Manufacturing B589 Specifications
| Cube | 99 |
|---|---|
| Brand | Lakeside Manufacturing |
| Made in | USA |
| Certifications | NSF |
| Gauge | 14 Gauge |
| Material | Stainless Steel |
| Width (in) | 67.75 |
| Height (in) | 69.25 |
| Depth (in) | 30.88 |
| Length (in) | 67 3/4 Inches |
| Weight | 243.00 |
Additional Information on Lakeside Manufacturing B589
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing B589 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Lakeside Manufacturing B589 Description
Soiled Dish Breakdown Cart, 67-3/4"W x 30-7/8"D x 69-1/4"H, (4) 14 gauge stainless steel shelves ( (3) flat, (1) angled), includes clear plastic drain tube, tubular push handles, (6) 8" casters, ( (2) fixed, (4) swivel), NSF, Made in USASoiled Dish Breakdown Cart, 67-3/4"W x 30-7/8"D x 69-1/4"H, (4) 14 gauge stainless steel shelves ( (3) flat, (1) angled), includes clear plastic drain tube, tubular push handles, (6) 8" casters, ( (2) fixed, (4) swivel), NSF, Made in USAStandard Features:
Save Labor and Reduce Breakage By Presorting Soiled Dinnerware Close To The Point Of Service.
- Bottom perimeter bumper protects walls and doorways.
- Slanted shelf drain system includes clear plastic drain tube.
- Large 8” non-marking casters, 2 ea. fixed, 2 or 4 ea. swivel.
- Built-in food scraper with plastic hanging waste bins available.
- Shelves are sturdy 14 gauge. Angled shelves are pitched at 20º.
- All-welded stainless steel U-frame construction is easy to clean and sanitize.
- Bottom shelf has slides to accommodate a 12” x 20” x 2” drain pan (not included).
- Flat shelves feature marine front edge, side and back rails to prevent drippage and accidents.
Options:
- Pneumatic wheels
- Extra hanging waste bin (models B951, B592, B593)
- Plate scraper (included on models B951, B592, B593)
- Swing-out waste bin (except models B951, B592, B593)
- Hanging waste bin(s) (1 included on models B951, B592, 593)
Specifications:
Unit shall be welded stainless steel, with U-frame leg construction. Shelves shall be 14 gauge, and shall be continuously bead welded to 1/8” thick angled legs. Shelves shall be configured in a combination of flat and slanted positions to accommodate trays, pans, dishes (flat) and glass/cup racks (slanted). Flat shelves shall feature marine front edge to prevent drippage, and edges turned up 4” on back and sides. Slanted shelves shall be pitched at 20º, and shall have a drain hole with drain hose to divert drippage from glass/cup racks. Hose shall drain into a 12” x 20” pan (not included) mounted under the bottom shelf. A full-perimeter bumper shall be mounted to frame bottom. An optional (included on models B591, B592, and B593) rubber plate scraper shall be mounted to unit side, and shall be removable for cleaning. Unit shall have six each extra-load plate type casters, two fixed center and four swivel, two each with brake (Model B591 shall have two each swivel and two each fixed casters). Swivel casters shall have shielded ball bearing races and zerk fittings for lubrication of swivel bearings. Caster wheels shall be 8” (203 mm) diameter with 2” wide, non-marking tread. Unit shall be NSF listed.
