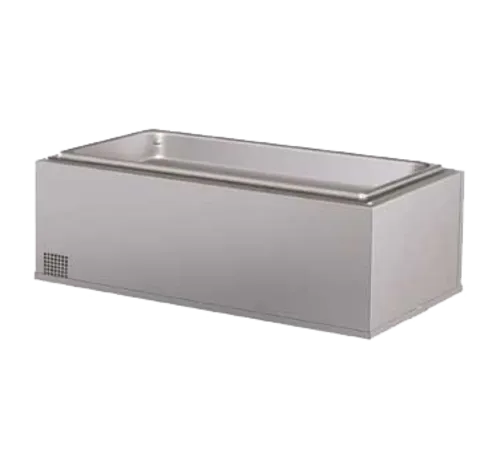

Hatco HWBIBRT-FULD Built-In Heated Well

MPN#: HWBIBRT-FULD
Made in USA

Description

Hatco HWBIBRT-FULD Description

(Fabricator component only) Built-In Heated Well, with drain, rectangular, insulated, bottom mounted, full size pan, thermostatic controls with lit rocker switch & leads, stainless steel & Aluminized construction (standard watt), cURus(Fabricator component only) Built-In Heated Well, with drain, rectangular, insulated, bottom mounted, full size pan, thermostatic controls with lit rocker switch & leads, stainless steel and Aluminized construction (standard watt), cURus

Standard Features:
Hatco's Built-In Full-Size Insulated UR and C-UR Heated Wells are recognized as having UL components that hold hot food products at safe serving temperatures, plus have the added benefit of allowing fabricators the freedom to design their own steam tables. The rugged, quality construction ensures that Hatco Heated Wells will last through the rigors of commercial use.
  • With or without drains
  • Thermostatic controls available
  • EZ locking hardware for quick installation
  • Low (120V only), Standard and High Watt
  • Without conduit and control box enclosure
  • Easy service access to heating elements and thermostats
  • Mounting kits for combustible or thicker countertops available
  • Accessory adapters to convert full-size wells to hold round pans
  • Rectangular Full-Size Insulated Heated Well in top or bottom mount
  • Thicker stainless steel construction and solid brazed joints for durability
  • 50% larger drain with flat screen simplifies cleaning and holds pans level
  • Superior thermostat controls that read the actual temperature of the well and add heat only if needed
  • Fully insulated wells on sides and bottom ensure better heat retention, and cooler surrounding surfaces for customer safety
  • Thermostatic controls feature a separate lighted ON/OFF switch and temperature dial, allowing preset temperatures to be maintained
Accessories:
  • Rectangular Full-Size Stainless Steel Food Pans:
    • Full-Size (4" [101 mm] H)
    • Full-Size (6" [152 mm] H)
    • Full-Size (2.5" [64 mm] H)
    • Half-Size (2.5" [64 mm] H)
    • Third-Size (2.5" [64 mm] H)
  • Round Food Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Hinged Lid for Round Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Notched Lid for Round Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Stainless Steel Wire Trivets:
    • Full-Size
    • Half-Size
  • Adapter to convert warmers to hold Round Pans
    • Holds two 7-Quart (7-Liter) Inserts
    • Holds three 4-Quart (4-Liter) Inserts
  • Support Bars:
    • 12" (305 mm)
    • 20" (508 mm)
  • Mounting Kit for:
    • Thicker countertops
    • Combustible countertops
  • ¾" Ball Valve for unit with Drains
  • ¾" Gate Valve for unit with Drains
  • Heated Well Remote Handle for ¾" Drains (requires a Ball or Gate Valve)

Options

Options for Hatco HWBIBRT-FULD

Corners
Controls & leads
What is included
  • Warranty: One year on-site parts & labor warranty, plus one additional year parts only warranty on the metal sheathed elements
  • Factory note: NOTE: Includes 24/7 parts & service assistance, call 414-671-6350
Voltage

Q & A

Hatco HWBIBRT-FULD Built-In Heated Well

Hatco HWBIBRT-FULD Specifications

BrandHatco
Made inUSA
Width (in)14
Height (in)10.26
Depth (in)22
Weight26.00

Additional Information on Hatco HWBIBRT-FULD

ownersmanual.pdf assemblyinstructions.pdf partslist.pdf colorchart.pdf catalogbrochure.pdf hatco-hwbibrt-fuldspecsheet.pdf
