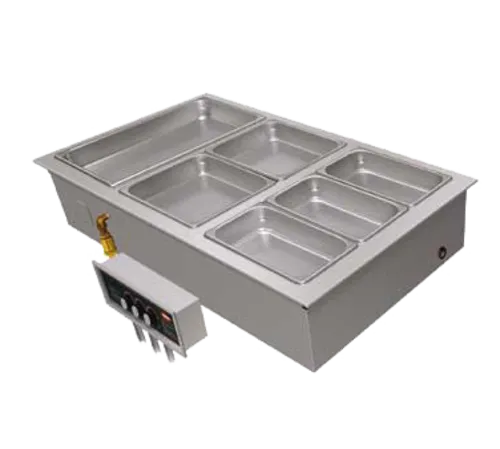

Hatco HWBI-3MA Built-In Heated Well

MPN#: HWBI-3MA
Made in USA
Free Freight?
Quick Ship
$3,005.75
$3,005.75
or enjoy small payments $64.59/mo.
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 3006

Hatco HWBI-3MA Accessories

Description

Hatco HWBI-3MA Description

Drop-In Modular/Ganged Heated Well, with manifold drains & auto-fill, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction (standard watt), CE, cULus, UL EPH Classified, Made in USADrop-In Modular Heated Well, with manifolded drains & auto-fill, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel and Aluminized construction (standard watt), cULus, UL EPH Classified, ANSI/NSF 4, Made in USA

Standard Features:
Hatco Modular/Ganged Heated Wells keep hot food at safe serving temperatures, with better quality construction, longer holding times and more accurate temperatures. They are full-sized wells, grouped together in a modular fashion to provide customers with a complete steam table contained within one piece of equipment. This means easy installation with a clean integrated look for your steam table. Choose the number of wells, from 1 to 6 unit configurations, as well as voltage, auto-fill, controls, drain, cord and mounting options. Each well has its own individual control to regulate the temperature of each separate food offering.
  • EZ locking hardware for quick installation
  • Longer holding times with more accurate temperatures
  • Unique design allows quick change of element or thermostat if needed
  • A 6' (1829 mm) conduit is included for convenient placement of controls
  • 50% larger drain with flat screen simplifies cleaning and holds pans level
  • Stainless steel construction and solid brazed drain fitting joints for durability
  • Separate lighted On/Off rocker switch and temperature dial for easy operation
Options: (Available at time of purchase only)
  • Stud Mounting to Countertop
  • Surface Hole Mounting to Countertop (Includes EZ Lock)
  • Three-Phase Wiring (not available on HWBI-1 series or export voltages)
  • 27" D (686 mm) Bezel for modular unit to match Hatco CWB models in a countertop display
  • Copper Drain Manifold with side exit (not available on 120V units, HWBI-1 or HWBLI-1 Series)
  • Copper Drain Manifold with bottom exit (not available on 120V units, HWBI-1 or HWBLI-1 Series)
  • Cord for HWBLI-2, -3 or HWBI-1, -2, -3, -4, -5, -6 (Single phase/single control box only, not for export voltages)
Accessories:
  • Rectangular Full-Size Stainless Steel Food Pans:
    • Full-Size (4" [101 mm] H)
    • Full-Size (6" [152 mm] H)
    • Full-Size (2.5" [64 mm] H)
    • Half-Size (2.5" [64 mm] H)
    • Third-Size (2.5" [64 mm] H)
  • Round Food Pans:
    • 4 Quart (4 Liter)
    • 7 Quart (7 Liter)
  • Hinged Lid for Round Pans:
    • 4 Quart (4 Liter)
    • 7 Quart (7 Liter)
  • Notched Lid for Round Pans:
    • 4 Quart (4 Liter)
    • 7 Quart (7 Liter)
  • Stainless Steel Wire Trivets:
    • Full-Size
    • Half-Size
  • Plated Wire Trivets:
    • Full-Size
    • Half-Size
  • Adapter to Convert Warmers to hold Round Pans:
    • Holds two 4-Quart (4-Liter) Rounds
    • Holds two 7-Quart (7-Liter) Rounds
  • Support Bars:
    • 12" (305 mm)
    • 20" (508 mm)
  • External Copper Drain Manifold with Individual Shut-Off Valves per Well (Only for units with individual drains):
    • 2-Pan Unit
    • 3-Pan Unit
    • 4-Pan Unit
    • 5-Pan Unit
    • 6-Pan Unit
  • Ball Valve for Unit with Drains:
    • 1"
    • ¾"
  • Gate Valve for Unit with Drains:
    • 1"
    • ¾"
  • Heated Well Remote Handle for ¾" drains

Options

Options for Hatco HWBI-3MA

Manifold drain location (1" female pipe thread)
Bezel depth
Mounting option
What is included
  • Warranty: One year on-site parts & labor warranty, plus one additional year parts only warranty on the metal sheathed elements
  • Control panels: Single remote control configuration
  • Factory note: NOTE: Includes 24/7 parts & service assistance, call 414-671-6350
Voltage

Q & A

Hatco HWBI-3MA Built-In Heated Well

Hatco HWBI-3MA Specifications

BrandHatco
Made inUSA
CertificationsCE
Width (in)43.5
Height (in)9.63
Depth (in)23.63
Weight112.00

Additional Information on Hatco HWBI-3MA

colorchart.pdf catalogbrochure.pdf ownersmanual.pdf restaurantsolutions.pdf assemblyinstructions.pdf supermarketin-storesolutions.pdf stadiumconcessionsolutions.pdf hatco-hwbli-2dspecsheet.pdf partslist.pdf
