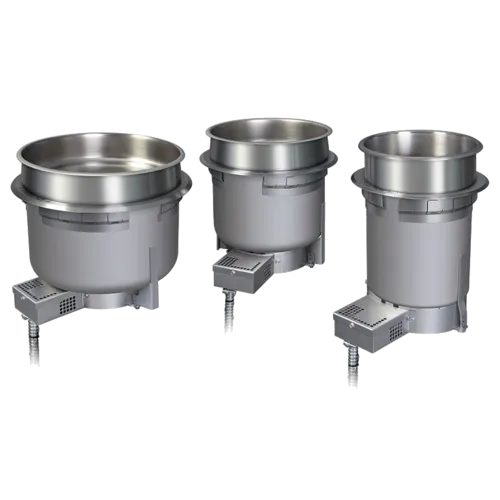

Hatco HWBH-7QTD Built-In Heated Well
![Hatco HWBH-7QTD Built-In Heated Well](https://cdn.ckitchen.com/pmidimages/hatco-hwbh-7qtd-built-in-heated-well.webp)
Free Freight?
Quick Ship
$523.60
Hatco HWBH-7QTD Specifications
Brand | Hatco |
---|---|
Made in | USA |
Certifications | cULus |
Width (in) | 10.31 |
Height (in) | 9.6 |
Depth (in) | 10.31 |
Weight | 12.00 |
Additional Information on Hatco HWBH-7QTD
![brochure.pdf](https://cdn.ckitchen.com/img/product/47/4765a1fe-bced-45fd-ac6b-082960e98ad8/preview-image/brochure-2211120kiowr-221112f8q9hp.jpg)
![parts-list.pdf](https://cdn.ckitchen.com/img/product/47/4765a1fe-bced-45fd-ac6b-082960e98ad8/preview-image/parts-list-221112xfa1q2-221112osmyqw.jpg)
![hatco-hwbh-7qtd.specsheet.pdf](https://cdn.ckitchen.com/img/product/47/4765a1fe-bced-45fd-ac6b-082960e98ad8/preview-image/hatco-hwbh-7qtd.specsheet-221104io638h-221104mgu9cu.jpg)
![color-chart.pdf](https://cdn.ckitchen.com/img/product/47/4765a1fe-bced-45fd-ac6b-082960e98ad8/preview-image/color-chart-221104b20x4x-221104xlyp17.jpg)
![installation-operation.pdf](https://cdn.ckitchen.com/img/product/47/4765a1fe-bced-45fd-ac6b-082960e98ad8/preview-image/installation-operation-221104aay3ep-221104tv6r0o.jpg)
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Hatco HWBH-7QTD Certifications
![cULus](/crm/userfiles/4571eadb-76f9-45bd-b37c-5f06370cc4e8-culus.png)
cULus
UL (Underwriters Laboratories) approval for the US and Canada
![UL](/crm/userfiles/c79b276c-55c0-4d38-a4b8-3586ad3cc36a-ul.jpg)
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
![UL EPH](/crm/userfiles/5bddd97a-1026-4e61-93ea-00b735a31bd2-ulephlisted.jpg)
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
![UL EPH Classified](/crm/userfiles/1dc9ce92-545c-46c3-b47c-5766b5b51bdd-ul_eph.png)
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Hatco HWBH-7QTD Description
Drop-In Heated Well, round, uninsulated, with drain, 7 quart, top mounted, remote thermostat with separate power switch, stainless steel construction (high wattage), cULus, UL EPH Classified, Made in USADrop-In Heated Well, round, with drain, 7 quart, top mounted, remote thermostat with separate power switch, stainless steel construction (high wattage), Made in USAStandard Features:
Hatco Drop-In Round Heated Wells provide flexibility and quality, with many options to choose from. These units hold steam table food hot and fresh with self-adjusting thermostats that read the actual temperatures and add heat only when needed.
- EZ locking hardware for quick installation
- Wells are designed for both WET or DRY operation
- Mounting kits for combustible countertops available
- Easy service access to heating elements and thermostats
- Standard or high watt (4-quart [4-liter] standard watt only)
- Available in 4-, 7- and 11-quart (4-, 7- and 10-liter) round wells
- Available with a 50% larger drain (¾" NPT) with flat screen simplifies cleaning and holds pans level
- Controls feature a separate lighted ON/OFF rocker switch and temperature dial, allowing preset temperatures to be maintained
- An optional WM Control Assembly is also available that will replace most existing controls on a customer’s Drop-In Heated Well unit
Options: (Available at time of purchase only)
- Control Box Assembly
- WM Control (Not for export voltages)
- Compact with Bezel (Standard [Not for export voltages])
- ITC Electronic Control (Not for 4-Quart [4-liter] Round Wells)
- Larger Recessed Thermostatic (Standard for export voltages)
- Control Box Bezel (Designer Colors - Nonstandard colors are non-returnable)
- Black
- Navy Blue
- Warm Red
- Gray Granite
- White Granite
- Hunter Green
- Antique Copper
- Thermostat with 6’ (1829 mm) Capillary
- Additional High Temp Power Supply Lead Wire available in one foot (305 mm) increments (Lead wire only - conduit not included) (Models are shipped with 1’ [305 mm] of lead wire - no conduit included)
Accessories:
- Round Pans
- 4-Quart (4-Liter)
- 7-Quart (7-Liter)
- 11-Quart (10-Liter)
- Notched Lids
- 4-Quart (4-Liter)
- 7-Quart (7-Liter)
- 11-Quart (10-Liter)
- Hinged Lids
- 4-Quart (4-Liter)
- 7-Quart (7-Liter)
- 11-Quart (10-Liter)
- Units with Drains
- ¾" NPT Ball
- ¾" Gate Valve
- Kit allows Mounting to Thick Countertops - 4 Brackets
- Mounting Kit for Combustible Countertops (All Models) - no conduit
