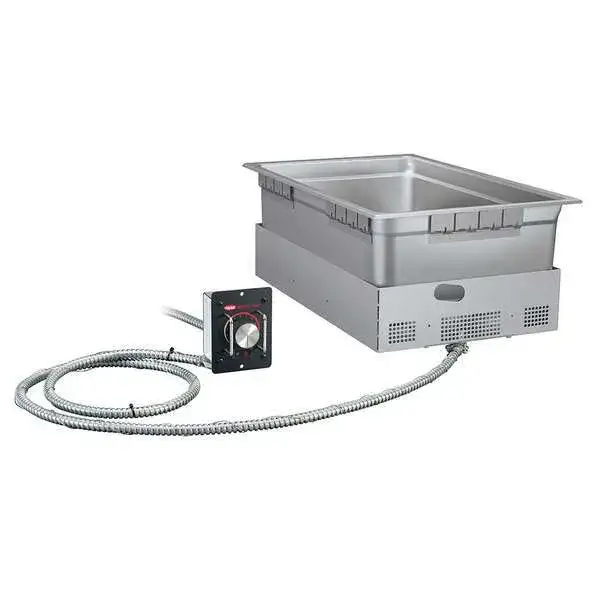

Hatco HWB-FUL Built-In Heated Well

Hatco HWB-FUL Description

Drop-In Heated Well, rectangular, non-insulated, full size pan, top or bottom mounted, remote thermostat with separate power switch, stainless steel construction (standard watt), CE, cUL, UL, UL EPH ClassifiedDrop-In Heated Well, rectangular, non-insulated, full size pan, top or bottom mounted, remote thermostat with separate power switch, stainless steel construction (standard watt), cUL, UL, UL EPH Classified, ANSI/NSF 4

• EZ locking hardware for quick installation
• Low (120V only), Standard and High Watt available
• Easy service access to heating elements and thermostats
• Uninsulated rectangular full-size well in top or bottom mount
• Accessory mounting kits for combustible countertops available

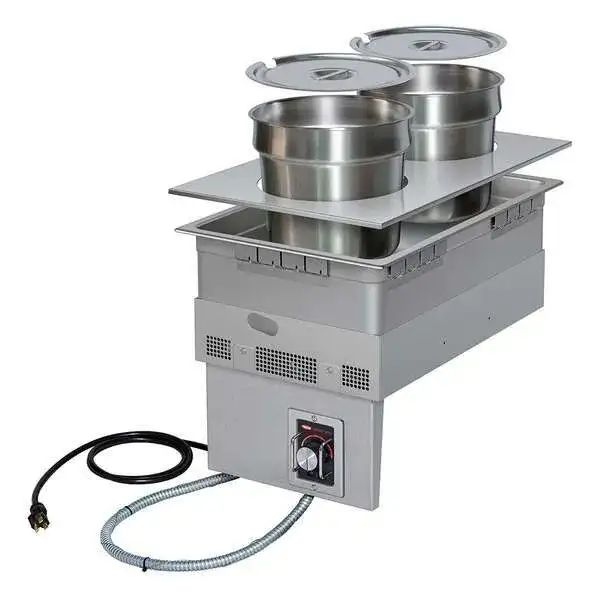

• Accessory adapters to convert full-size wells to hold round pans
• Available in a standard front or optional right or left autofill location
• Thicker stainless steel construction and solid brazed joints for durability
• Superior thermostat controls that read the actual temperature of the well and add heat only if needed
• Available with or without a drain (50% larger drain with flat screen simplifies cleaning and holds pans level)
• Controls feature a separate lighted ON/OFF rocker switch and temperature dial, allowing preset temperatures to be maintained

• Control Box (Options not available for Auto-fill):
  • Standard Thermostat with 6' (1829 mm) Capillary (Standard 120V)
  • WM Control Assembly Replacement (Not available for auto-fill or export models)
  • ITC Control with Large Control (Not available for low watt, auto-fill configurations or units without a drain)
  • Larger Recessed Thermostatic Control (Standard for 220/240V and not available for auto-fill configurations)
• Control Box Bezel in Designer Colors for WM Control Assembly or Flush Mount only: (not available for the HWB-FUL w/Cord, Non-standard colors are non-returnable)
  • Black
  • Navy Blue
  • Warm Red
  • Gray Granite
  • White Granite
  • Hunter Green
  • Antique Copper
• Left or Right Water Fill Hole for HWBL-, HWB-, HWBH-FULDA only (Front is standard)
  • Left
  • Right
• HWB-FUL with Optional Cord
• Additional Power Supply Lead Wire available in one foot (305 mm) increments (Lead wire only – conduit not included) (Models are shipped with 1’ [305 mm] of lead wire - no conduit included)

• Rectangular Full-Size Stainless Steel Food Pans:
  • Full-Size (4" [101 mm] H)
  • Full-Size (6" [152 mm] H)
  • Full-Size (2.5" [64 mm] H)
  • Half-Size (2.5" [64 mm] H)
  • Third-Size (2.5" [64 mm] H)
• Round Food Pans:
  • 4 Quart (4 Liter)
  • 7 Quart (7 Liter)
• Hinged Lid for Round Pans:
  • 4 Quart (4 Liter)
  • 7 Quart (7 Liter)
• Notched Lid for Round Pans:
  • 4 Quart (4 Liter)
  • 7 Quart (7 Liter)
• Stainless Steel Wire Trivets:
  • Full-Size
  • Half-Size
• Adapter to Convert Warmers to hold Round Pans:
  • Holds two 7-Quart (7-Liter) Inserts
  • Holds three 4-Quart (4-Liter) Inserts
• Support Bars:
  • 12" (305 mm)
  • 20" (508 mm)
• Mounting Kit for:
  • Thick Countertops
  • Combustible Countertops
• ¾" Ball Valve for Unit with Drains
• ¾" Gate Valve for Unit with Drains
• Heated Well Remote Handle for ¾" drains (Includes a Ball Valve)
