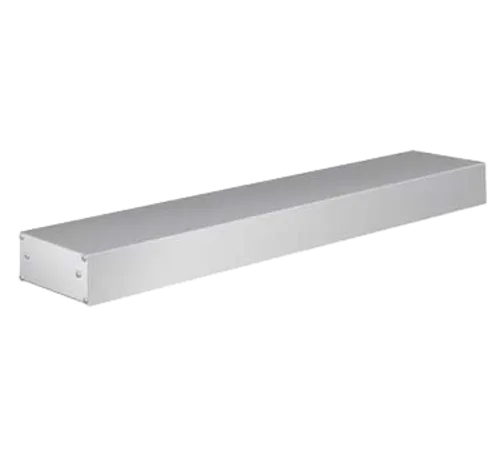

Hatco GRAH-48 Glo-Ray Infrared Foodwarmer

Name: Hatco GRAH-48 Glo-Ray Infrared Foodwarmer
Brand: Hatco
SKU: GRAH-48
Price: 265.1 USD
Availability: LimitedAvailability

MPN#: GRAH-48

1/4

Hatco GRAH-48 Glo-Ray Infrared Foodwarmer

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$265.10 /

Reward Points

You will earn 265

$$$ View Hatco Promos

View all Hatco Heat Lamps

Hatco GRAH-48 Specifications

Brand	Hatco
Made in	USA
Certifications	CE
Width (in)	48
Height (in)	2.5
Depth (in)	6
Weight	13.00

Additional Information on Hatco GRAH-48

ownersmanual.pdf

catalogbrochure.pdf

hatco-grah-48.specsheet.pdf

electrical-rating.pdf

parts-list.pdf

color-chart.pdf

hatco-grah-48.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Hatco GRAH-48 Certifications

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Hatco GRAH-48 Description

Glo-Ray® Infrared Strip Heater, 48" W, high wattage, tubular metal heater rod, single heater rod housing, aluminum construction, 1100 watts, NSF, CE, cULus, Made in USAGlo-Ray® Infrared Foodwarmer, high wattage, tubular metal heater rod, single heater rod housing, aluminum construction, 1100 watts, NSF, cUL, UL

Standard Features:

Safely hold the temperature of your product without drying out or further cooking food with Hatco’s Glo-Ray® Infrared Aluminum Strip Heaters. The end result is hot, fresh food that’s ready-to-serve. The continuous aluminum housing and heavy-duty mountings ensure the durability and quality of Hatco products.

All units single phase only
Insulation minimizes heat loss
Standard and high watt models available
Protective wire guards under heating element
Consistent holding temperatures with no "cold spots"
Pre-focused heat pattern covers the entire holding surface
Reflector does not blacken, maintaining a consistent heat pattern
Factory assembled with mounting tabs, ready to install quickly and easily
Sturdy extruded aluminum housings that do not sag, in widths from 18" to 144" (457 to 3658 mm)
Additional reflector styles and lower wattage elements also available, please consult factory for more information

Options: (Available at time of purchase only)

6" (152 mm) housing - Designer Color or Gloss Finish (Clear anodized standard)
- Black
- Navy Blue
- Warm Red
- Bold Black
- Brilliant Blue
- Glossy Gray
- Radiant Red
- Gray Granite
- White Granite
- Hunter Green
- Gleaming Gold
- Antique Copper
Leads - Extended beyond standard 3' (914 mm), conduit on 120V, 208V, 240V models only (must specify lead length)
- 1'-5' (305-1525 mm)
- 6'-10' (1829-3048 mm)
- 11'-15' (3352-4572 mm)
- 16'-20' (4877-6096 mm)
Sneeze Guard
- 14" (356 mm) - One side
- 14" (356 mm) - Two sides
- 9.375" (238 mm) - One side
- 9.375" (238 mm) - Two sides
Infinite Control (remote enclosure recommended), consult factory if element rating exceeds 12.2 amps
- Remote Infinite Switch (max. 12.2 amps)
- Built-in (max. of 12.2 amps) (remote installation recommended)
Remote Control Enclosure - Designer Color or Gloss Finish (clear anodized standard)
- Black
- Navy Blue
- Warm Red
- Bold Black
- Glossy Gray
- Radiant Red
- Brilliant Blue
- Gray Granite
- Hunter Green
- White Granite
- Gleaming Gold
- Antique Copper
Non-Adjustable Tubular Stands (choose clearance and color below)
- 10" (254 mm)
- 12" (305 mm)
- 14" (356 mm)
- 16" (406 mm)
Designer Color or Gloss Finish for Stands (clear anodized standard)
- Black
- Navy Blue
- Warm Red
- Bold Black
- Glossy Gray
- Radiant Red
- Brilliant Blue
- Gray Granite
- White Granite
- Hunter Green
- Gleaming Gold
- Antique Copper
C-Leg Stands - Portable, for cord & plug installation
- Standard Watt - 10" (254) clearance - for models up to 72" (1829 mm) wide
- High Watt - 13.5" (343 mm) clearance - for models up to 72"(1829 mm) wide
T-Leg Stands - for models up to 72" (1829 mm) wide, specify clearance - Portable, for cord & plug installation
- 16" (406 mm)
- 18" (457 mm)
- 13.5" (343 mm)
- 10" (254 mm) (Standard Watt)
No Control
Indicator Light (not available as Built-In with Tandem Element option)
Adjustable Tubular Stands 10"-14" (254-356 mm) - Permanent, for hardwired installation
Two S hooks with two 6" (153 mm) lengths of chain - Stationary, for cord & plug installation
Attached 6' (1829 mm) Cord & Plug Set on Export Price List models up to 96" (2438 mm) wide
Attached 6' (1829 mm) Cord & Plug Set on 120V models up to 72" (1829 mm) wide requires Standard Chain Mount Kit (two S hooks with two 6" (153 mm) lengths of chain), or add optional C-leg stands, or T-leg stands (see specific model for plug configuration)

Accessories:

Chain Suspension
Adjustable Angle Brackets (with clearance above unit)
- 1"-2" (25-51 mm)
- 7" (178 mm) - GRA models only

Options for Hatco GRAH-48

Tandem elements

No Tandem selection NOTE: For individually controlled tandem elements contact factory

Reflector & wattage note

NOTE: Additional reflector styles & lower wattage elements also available, please consult factory for more information

Additional lead

11'-15' Extended Electrical Leads (Available at time of purchase only) +$43.50 1'-5' Extended Electrical Leads (Available at time of purchase only) +$14.50 16'-20' Extended Electrical Leads (Available at time of purchase only) +$58.00 6'-10' Extended Electrical Leads (Available at time of purchase only) +$29.00 NOTE: Leads extended beyond standard with 3' conduit with leads

Sneeze guard

48" x 14" Sneeze guard one side (Available at time of purchase only) +$244.00 48" x 14" Sneeze guard two sides (Available at time of purchase only) +$488.00 48" x 9-3/8" Sneeze guard one side (Available at time of purchase only) +$154.00 48" x 9-3/8" Sneeze guard two sides (Available at time of purchase only) +$308.00

Color for lamp housing

Clear Anodized Aluminum housing, finish, standard (available at time of purchase only) Designer Colors for Strip Heater housing; 6" or 9" x 48" long housing (available at time of purchase only) aluminum models [GR5 family models will be 6"] +$70.00 Gloss Finish, for 6" or 9" dual housing for 48" long models (available at time of purchase only) [GR5 family models will be 6"] +$96.00

Mounting options

Standard chain mount kit, (2) "S" hooks, (2) 6" chains (Available at time of purchase only) +$7.50 Non-adjustable tubular stand, 14", pair, not available with cord (available at time of purchase only) +$65.50 Non-adjustable tubular stand, 16", pair, not available with cord (available at time of purchase only) +$65.50 Non-adjustable tubular stand, 10", pair, not available with cord (available at time of purchase only) +$61.00 Non-adjustable tubular stand, 12", pair, not available with cord (available at time of purchase only) +$61.00 T-Leg stands, #076-10" - 25cm clearance (priced per pair) for models up to 6'-0", only available with cord (available at time of purchase only) +$168.50 T-Leg stands, #075-13 1/2" - 34cm clearance (priced per pair) for models up to 6'-0", only available with cord (available at time of purchase only) +$186.00 T-Leg stands, #074-16" - 41cm clearance (priced per pair) for models up to 6'-0", only available with cord (available at time of purchase only) +$197.50 T-Leg stands, #073-18" - 46cm clearance (priced per pair) for models up to 6'-0", only available with cord (available at time of purchase only) +$212.00 Adjustable tubular stand, 10" - 14", pair, not available with cord (available at time of purchase only) +$132.50 C-Leg stands, 13-1/2" clearance, pair, requires cord & plug (available at time of purchase only) +$78.50

What is included

Warranty: One year on-site parts & labor warranty, plus one additional year parts only warranty on all Glo-Ray metal sheathed elements
Factory note: NOTE: Includes 24/7 parts & service assistance, call 414-671-6350

Voltages

120v/60/1-ph 208v/60/1-ph 220v/50/1-ph (Export) +$2.50 240v/50/1-ph (Export) +$2.50 240v/60/1-ph
