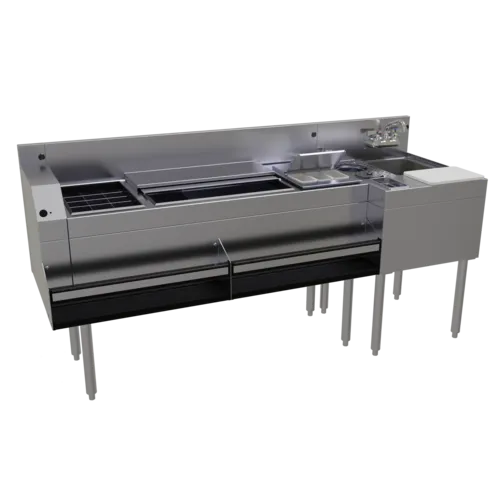

Glastender MXS72-CP10 Mixology Underbar Cocktail Station

Glastender MXS72-CP10 Description

Mixology Underbar Cocktail Station, 72 W” x 24” D, includes: SMHA-4 soda manifold housing, 48” combo ice bin with sliding cover & 10-circuit cold plate, ice bin divider, BRM15 elixir bottle well & 6-cup iced chilled condiment well, 52” single speed rail, MFT-20 mixology unit, low-lead compliant, stainless steel construction, stainless steel legs with adjustable bullet feet, ETL-Sanitation (NOTE: Made to order, not returnable)

The Glastender MXS72-CP10 Mixology Underbar Cocktail Station has all the features you need for a service ready well. Basically, this unit combines several different Glastender products into a lean, mean drink serving machine. These products include the Glastender CBA-48-CP10 Underbar Ice Bin/Cocktail Unit, the Glastender MFT-20 Underbar Mixology Unit, the Glastender SMHA-4 Soda Manifold Housing, the Glastender SSR-52 Single Speed Rail, the Glastender CCD6-12 Condiment dispenser, and the Glastender BRM15 Mixology bottle rack.

Starting from the right, the Glastender MFT-20 Underbar Mixology Unit provides all the sanitation and garnish prep tools. A backsplash mounted faucet provides hot and cold water for any general rinsing into a wet waste sink with a perforated plastic strainer. In front of the sink is an 8” x 11” cutting board fixed in place for easy garnish prep and easily removable for cleaning. Next to it is a convenient ice scoop well (ice scoop not included). In front of the ice scoop is a push-down rinser for quickly rinsing off shaker cans to make sure there isn’t any flavor swapping between drinks. Last but not least is the dipper well with an integrated cold water faucet for keeping all your mixology tools clean.

To the left is the heart of the service well, the Glastender CBA-48-CP10 Underbar Ice Bin/Cocktail Unit. Normally this unit has two bottle wells on either side for store-and-pour bottles, but in the Glastender MXS72-CP10 Mixology Underbar Cocktail Station, they’ve been repurposed to maximize their use. The bottle well on the right now has the Glastender CCD6-12 Condiment dispenser which holds six bins of garnishes kept fresh by the ice below. 2 covers for each row of bins for when they’re not being used. The bottle well on the right includes the Glastender BRM15 Mixology bottle rack for keeping 15 elixir bottles cold and ready for mixing.

The ice bin on the Glastender MXS72-CP10 Mixology Underbar Cocktail Station 67 lbs of potable ice and is accessed through a sliding stainless steel cover that glides over a PVC breaker strip for superior heat rejection. The bottom of the ice bin has an integrated ten circuit cold plate to chill drinks from your soda gun. In front of the ice bin is a 52” long single speed rail provides more than enough room for your liquor selection. The speed rail features PVC covers on the step and rail to keep bottles from rattling.

On the left-most end of the Glastender MXS72-CP10 Mixology Underbar Cocktail Station is the overhanging Glastender SMHA-4 Soda Manifold Housing which conceals your soda gun’s manifold and tubing while still providing easy access to it. This is an ideal location since you will be routing your beverages through the ten circuit cold plate below this unit.

The Glastender MXS72-CP10 Mixology Underbar Cocktail Station is predominantly made out of durable 20 gauge stainless steel, except for the speed rail ends which are made from tougher 14 gauge stainless steel and the legs which are made from 16 gauge stainless steel. Overall the unit is 72” wide, 24” front-to-back, and 37” high (including the backsplash). The unit is kept level with six stainless steel bullet feet. The unit requires three ⅜” cold water sink leads for the main faucet, the faucet on the dipper well, and the push-down rinser and a single ⅜” hot water sink lead for the main faucet. The sink and dipper well use 1-½” I.P.S. threaded drains, the elixir and condiment well use 1-½” tailpieces, and the ice bin uses a ¾” MPT fitting.

The Glastender MXS72-CP10 Mixology Underbar Cocktail Station is ETL-Sanitation certified and all faucets included are NSF/ANSI 61, Annex G compliant.
