Garland US Range ECG-48R Master 48'' Countertop Electric Griddle with Thermostatic Controls, 208 Volts
MPN#: ECG-48R
Free Freight?
Quick Ship
$14,677.00
Contact us for details
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Garland US Range ECG-48R Specifications
Installation Type | Countertop |
---|---|
Series | Master |
Construction | Stainless Steel |
With Griddle | Yes |
Brand | Garland/US Range |
Certifications | NSF |
Power Type | Electric |
Number of Burners | 4 |
Control Type | Thermostatic |
Exterior Finish | Stainless Steel |
Controls | Electronic thermostatic |
Heat | Electric |
Usage | Standard Duty |
Voltage | 208 Volts |
Wattage | 17.2 Kilowatts |
Width (in) | 48 |
Height (in) | 22.63 |
Depth (in) | 35.03 |
Weight | 500.00 |
Additional Information on Garland US Range ECG-48R

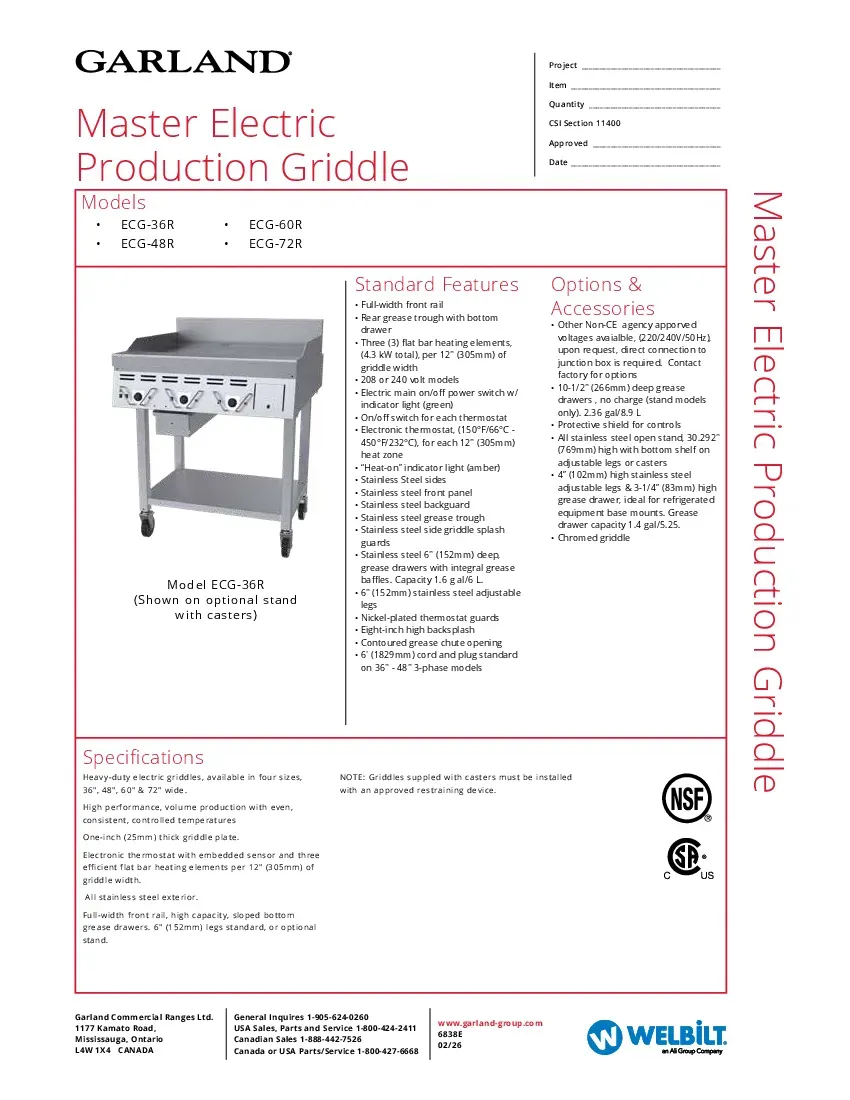

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range ECG-48R Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range ECG-48R Description
Master Griddle, countertop, electric, rear drain, 48" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, stainless steel side & rear splash, stainless steel exterior, 17.2 kW (Garland), CSA, NSF
Master Griddle, countertop, electric, rear drain, 48" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, stainless steel side & rear splash, stainless steel exterior, 17.2 kW (Garland), CSA, NSF
Heavy‑duty electric griddles, available in four sizes, 36", 48", 60" & 72" wide. High performance, volume production with even, consistent, controlled temperatures One‑inch (25mm) thick griddle plate. Electronic thermostat with embedded sensor and three efficient flat bar heating elements per 12" (305mm) of griddle width. All stainless steel exterior. Full‑width front rail, high capacity, sloped bottom grease drawers. 6" (152mm) legs standard, or optional stand.
Standard Features:
- Full‑width front rail
- Stainless Steel sides
- 208 or 240 volt models
- Stainless steel front panel
- Stainless steel backguard
- Eight‑inch high backsplash
- Stainless steel grease trough
- Nickel‑plated thermostat guards
- “Heat‑On” indicator light (amber)
- On/off switch for each thermostat
- Contoured grease chute opening
- Rear grease trough with bottom drawer
- Stainless steel side griddle splashguards
- 6" (152mm) stainless steel adjustable legs
- Electric main on/off power switch w/indicator light (green)
- 6' (1829mm) cord and plug standard on 36" - 48" 3‑phase models
- Three (3) flat bar heating elements, (4.3 kW total), per 12" (305mm) of griddle width
- Electronic thermostat, (150°F/66°C ‑ 450°F/232°C), for each 12" (305mm) heat zone
- Stainless steel 6" (152mm) deep, grease drawers with integral grease baffles. Capacity 1.4 gal/6 L.
- NOTE: Commercial Griddles supplied with casters must be installed with an approved restraining device.
- Protective shield for controls
- 10-1/2" (266mm) deep grease drawers, no charge (stand models only). 1.4 gal/5.25 L
- All stainless steel open stand, 30.292" (769mm) high with bottom shelf on adjustable legs or casters
- Export voltages, (220/240V/50Hz), available upon request, direct connection to junction box is required. No cord and plug are included, no charge
Heavy‑duty electric griddles, available in four sizes, 36", 48", 60" & 72" wide. High performance, volume production with even, consistent, controlled temperatures One‑inch (25mm) thick griddle plate. Electronic thermostat with embedded sensor and three efficient flat bar heating elements per 12" (305mm) of griddle width. All stainless steel exterior. Full‑width front rail, high capacity, sloped bottom grease drawers. 6" (152mm) legs standard, or optional stand.
