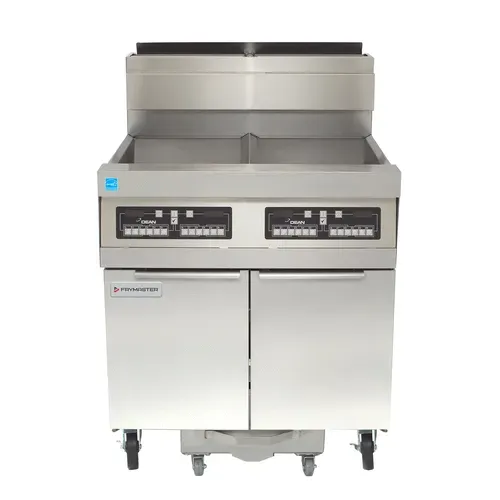

Frymaster SCFHD260G Decathlon HD (2) 80 lb. Frypots Gas Floor Fryer with Thermatron Controls and Built-In Filtration System, 120 Volts - 250,000 BTU
Contact us for details!!!
Frymaster SCFHD260G Specifications
BTU | 250,000 BTU |
---|---|
Filtration System | Built-In Filtration System |
Series | Decathlon HD |
Cabinet | Stainless Steel |
Control Type | Thermatron |
Brand | Frymaster |
Energy Efficiency | Energy Star |
Made in | USA |
Certifications | NSF |
Capacity | (2) 80 lb. Frypots |
Voltage | 120 Volts |
Width (in) | 40 |
Height (in) | 46.38 |
Depth (in) | 39.38 |
Weight | 677.00 |
Additional Information on Frymaster SCFHD260G
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Frymaster SCFHD260G Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Frymaster SCFHD260G Description
Packing two (2) 80-lb frypots that each measure 14" x 14" x 3.5", the Frymaster SCFHD260G gas multiple-battery fryer from the Decathlon HD Series is an excellent choice for food businesses requiring large-volume production and maximum efficiency. This is an ENERGY STAR and Enerlogic piece of cooking equipment with a total input of 200,000 BTU/hr that was improved to be 40% more efficient. This commercial deep fryer is stainless steel all around--from the front and door to the cabinet sides--making for a strong, long-lasting cooking companion that you can count on.
The Thermo-Tube heat transfer system on this commercial fryer uses five (5) 6" diameter tubes to cover 36% more surface area, easing the stress on the oil and in turn preserving its life. Plus, this unique design maximizes the heat so that the kitchen remains cooler and the energy use remains lower.
This commercial fryer features a Thermatron temperature controller that works to give you the most precise oil temperature readings! Since the response to changing cooking loads is instant, the gas consumption per pound of food cooked is much lower and so are the idle costs.
Sediment from fried food falls on the wide cold zone with a 1.25" full-port drain valve. The forward-sloping bottom and large 3" drain line move the oil and sediment out for disposal. A filtration system is installed right within the fryer battery so it won’t take up extra space in your kitchen. The gravity draining system helps drain all the residual oil into the filter pan for thorough cleaning.
The gas fryer takes four minutes to filter each frypot. The process is done on one frypot at a time, freeing up the other so you can still get orders out while you wait. This system is enhanced with a gravity draining system that allows residual oil to drain into the filter pan so that drain lines are always open. The filter can be filtered up to six Commercial Deep Fryers.
The Frymaster SCFHD260G fryer is an NSF and CSA certified for guaranteed quality and safe use. It ships with rack-type basket support and basket hanger.
- Casters
- Built-in filtration
- Electronic ignition
- Drain safety switch
- wo twin baskets per frypot
- Melt cycle and boil-out mode
- Gas connection - see chart on back
- Combination gas valve with regulator
- Thermatron® controller (120V required)
- High-efficiency Thermo-Tube frypot design
- Stainless steel frypot, front, door and sides
- Robust, RTD, 1° compensating temperature probe
- Wide cold zone, 1-1/4” to 1-1/2” full-port IPS ball-type drain valve
- Large capacity, high performance gas fryers suitable for volume frying
- Frying area: HD50 - 14” x 14” x 3-1/2” per frypot & HD60 - 18” x 18” x 3-3/4” per frypot
- Oil capacity: HD50 - 50-lb. (25-liter) per frypot - meets ENERGY STAR® guidelines & HD60 - 80-lb. (40-liter) per frypot
- Btu/hr input: HD50 - 100,000 (25,189 kcal/hr.) (29.3 kw/hr.) per frypot & HD60 - 125,000 (31,486 kcal/hr.) (36.6 kw/hr.) per frypot
- Filter starter kit
- 1/3 H.P. filter motor
- 50-lb (25 liter) oil capacity
- Stainless steel crumb catcher
- Filters up to 6 fryers in one battery
- 4 GPM standard on HD50 batteries
- 8 GPM standard on HD60 Batteries
- Large 3” (8.0 cm) round drain line allows oil to drain freely
- Filter pan designed on rails to clear floormats for easy cleaning
- Sloped drain pan leaves minimal residue oil behind after filtering
- Filter cycle is complete from start to finish in less than 5 minutes, while other frypots in the system are in use
- Space-saving filter which fits inside fryer cabinet housing two full or qualifying split frypots in two left most cabinets of the battery
- Casters
- Basket lifts
- Crisper tray
- Full baskets
- Frypot covers
- Splash shield
- Sediment tray
- Triplet baskets
- Foam deck basket banger
- Basket rack support (fine mesh)
- Chicken basket (HD60G models only)
- SMART4U® 3000 or CM3.5 controllers
- Front work shelf - must be requested with fryer order
- Spreader cabinet(s) - must fit within a 6-cabinet fryer battery
- External oil discharge - available on built-in filter batteries of 2 or more frypots - must specify front or rear connection. Front connection comes with 5 ft. washdown hose.
