Frymaster 31814GF (3) 63 lb. Frypots Gas Floor Fryer with SMART4U® Lane Controls and Built-In Filtration System, 120 Volts - 357,000 BTU

MPN#: 31814GF
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$42,886.46 /

Contact us for details!!!

$42,886.46 /
or enjoy small payments $921.63/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 42886
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Frymaster 31814GF Specifications

BTU 357,000 BTU
Filtration SystemBuilt-In Filtration System
Control TypeSMART4U® Lane
CabinetStainless Steel
BrandFrymaster
Energy EfficiencyEnergy Star
Made inUSA
CertificationsNSF
Capacity(3) 63 lb. Frypots
Voltage120 Volts
Width (in)60
Height (in)47.75
Depth (in)33.13
Weight900.00

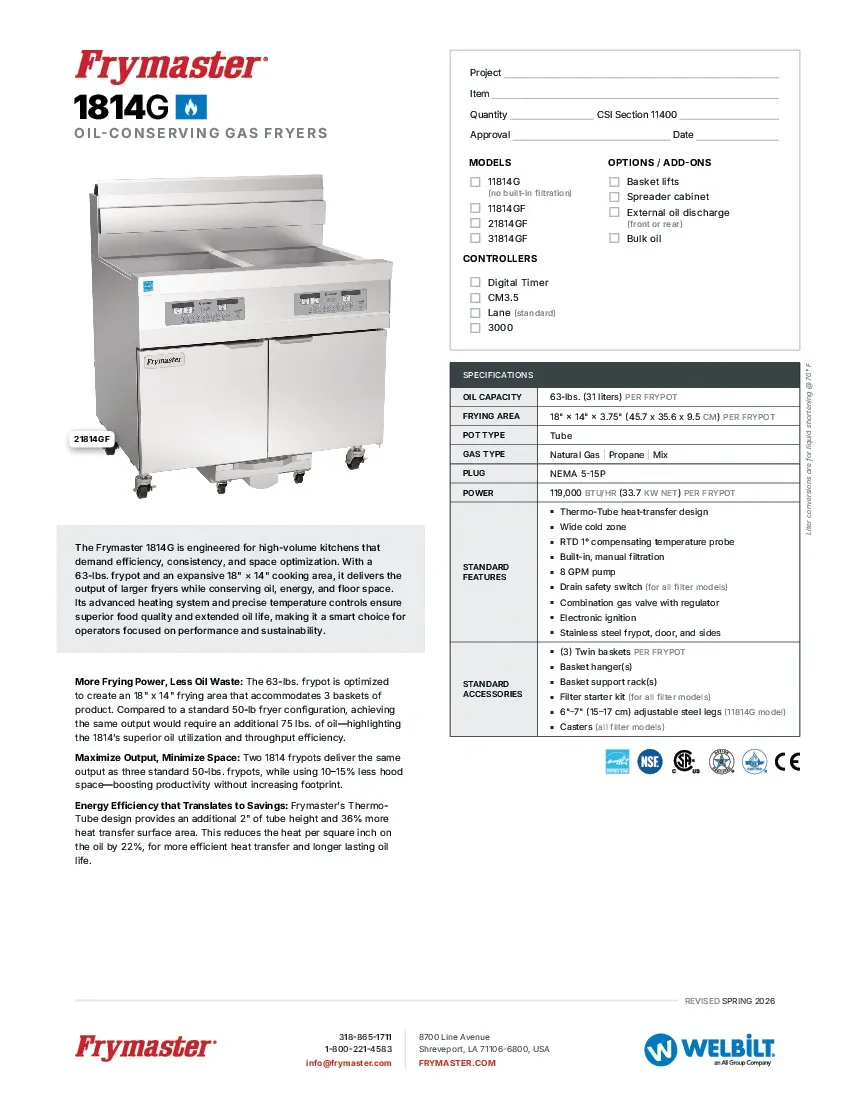

Additional Information on Frymaster 31814GF

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Frymaster 31814GF Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Frymaster 31814GF Description

Frymaster® Fryer Battery, gas, (3) 63 lb. capacity each, built-in filtration, oil conserving, tube-type design, electronic ignition, includes: rack-type basket supports, basket hangers & (9) twin baskets, drain safety switch, filter starter kit, 8 GPM pump, stainless steel frypot, door, & cabinet sides, 357,000 BTU, CSA, NSF, ENERGY STAR®, Enerlogic®

The 31814GF gas multiple-battery fryer with (3) 63-lb frypots and built-in filtration system is the perfect companion for busy kitchens with a large demand for fried foods daily! Oil consumption on this unit is 12-20% lower than standard 50-lb Commercial Deep Fryers! Each frypot running at 119,000 Btu/hr each offers up a generous cooking area measuring 18" x 14" x 3-3/4", and with a total of nine (9) twin baskets on this fryer, you can cook different types of food at the same time.

High-volume frying made more efficient

Capable of lowering your energy consumption by upwards of 50%, this ENERGY STAR-rated tube-type gas floor fryer has an electronic ignition and a Thermo-tube design with 6" diameter tubes that span the frypot surface. The stainless steel alloy flow baffles achieve maximum heating while extending the life of the oil.

A long-lasting construction that saves space

Even with the larger capacity, the 31814GF commercial deep fryer can fit in 11-15% less space than a conventional 50-lb fryer! Since this piece of equipment will be vital to your daily operations, the stainless steel construction on the frypots, door, cabinet sides, and over-the-flue basket hangers will make sure it stays tough through all of it.

Smart controls for reliable accuracy and performance

Perform vital cooking tasks and stay on top of the fryer’s performance using the SMART4U® Lane controller with programmable cook buttons as well as useful features like melt cycle and automatic cook time compensation to load size. To help you produce consistently high-quality fried foods, this deep fryer also packs an RTD 1° compensating temperature probe for accurate temperature readings!

Excellent oil protection and convenient filtration

A large cold zone and sloped bottom thoroughly clean out the sediment to ensure it doesn’t come in contact with the food, maintaining the flavor and quality in each batch. A large drain line with a safety switch swiftly delivers the sediment and used oil out of the fryer for staff members to easily dispose of. The built-in filtration system installed within the fryer optimizes the filtration process without using up additional space in your kitchen.

The 21814GF gas fryer is part of the Enerlogic family and comes standard with rack-type basket supports and basket hangers. It is also CSA and NSF-certified for guaranteed high quality and safe commercial applications. We have more superb-quality commercial deep fryers and cooking equipment to help you create the best cooking stations for your foodservice operation!

Standard Features:
  • Drain safety switch
  • Three twin baskets per frypot
  • Stainless steel frypot, door and cabinet sides
  • Robust, RTD, 1° compensating temperature probe
  • Sturdy stainless steel over-the-flue basket hangers
  • 21814GF, 31814GF, 41814GF come standard with filtration and casters
  • Wide cold zone traps sediment away from cooking area, safeguarding oil
  • Thermo-Tube heat-transfer system efficiently transfers energy into the oil, saving energy and extending oil life
  • 119,000 Btu/hr (29,975 kcal/hr.) (34.9 kw/hr.) input per frypot meets high production demands of a varied menu
  • 18” x 14” x 3-3/4” frying area per frypot uses 63 lbs of oil and cooks three twin baskets of food at the same time
  • SMART4U® Lane controller has programmable cook buttons and features that make it easy to produce consistent, great-tasting food.
11814/HD50G/11814 Has Standard Features of the Batteries Above Plus:
  • Two additional twin baskets
  • Built-in filter for 11814G model
  • Digital, CM3.5, and SMART4U® 3000 controllers
  • Spreader cabinet(s) - must fit within 4-cabinet fryer battery
  • Bulk oil (dispose and fresh fill) on batteries with built-in filtration
  • The HD50 frypot has a 2-Lane controller with all the features of the 3-Lane controller except that it  manages the cooking of 2-twin baskets instead of three
  • A high efficient HD50G frypot that exceeds ENERGY STAR® guidelines, with a 50-lb oil capacity, 100,000 Btu/hr. (25,189 kcal/hr.) (29.3 kw/hr.), and a 14” x 14” x 3-1/2”(35.6 x 35.6 x 8.9 cm) cooking area
  • External oil discharge (dispose only) available on built-in filter batteries of two or more frypots. Must specify front or rear connection. Front connection comes with 5’ washdown hose (precludes bulk rear oil discharge)
Options & Accessories
  • Fish plate
  • Full basket
  • Dual basket
  • Quad basket
  • Splash shield
  • Frypot covers
  • Sediment tray
  • Chicken basket
  • Foam deck basket banger
  • Casters (included on filter models)
  • Quick disconnect with gas line and adapter
    • 1” x 48”
    • 1” x 36”
    • 3/4” x 36” (11814 only)
    • 3/4” x 48” (11814 only)

Options for Frymaster 31814GF

Filtration & oil
External oil discharge options
Start-up program
Installation/Disposal
Gas types
Controls
Standard warranty
Mounting options
What is included
  • Manufacturer's note: Note: Prices listed are for within the USA only. Please contact the factory for pricing if quoting outside of the USA
  • Curb note: NOTE: Gas fryers CANNOT be curb mounted
