Description

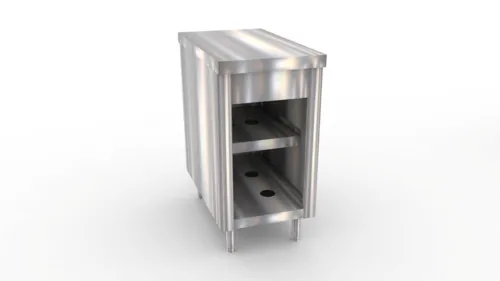

Duke TST-18PG Description Thurmaduke™ Solid Top Unit, utility counter, 18"W x 32"D x 36"H, 16ga stainless steel top, 20ga paint grip steel body & undershelves, 6"H stainless steel legs with adjustable feet (casters prohibited due to tipping), NSF
Close Description Options
Options for Duke TST-18PG Tray Slide - Operator's side Tray Slide on fixed brackets, (3) bar tubular, 1" dia. stainless, end caps, mounted 34"H (specify any other height), NSF +$313.20
Tray Slide, operator's side, (3) tubular Ø 1" bars, stainless steel, on hinged brackets, end caps, mounted 34"H (specify any other height) +$355.50
Tray Slide - Customer's side Tray Slide on fixed brackets, (3) bar tubular, 1" dia. stainless, end caps, mounted 34"H (specify any other height), NSF +$313.20
Tray Slide, customer's side, (3) tubular Ø 1" bars, stainless steel, on hinged brackets, end caps, mounted 34"H (specify any other height) +$355.50
Fabrication, electrical & special body modifications Push bar, stainless steel handle & brackets, mounted on operator's right end (specify if left end) +$164.70
Bumpers (3" x 3" rubber corners) (per set) +$139.50
Round cutout with raw edge, in counter top, body panel or a shelf (specify cutout diameter & location) +$66.60
Round cutout with grommet, in counter top, body panel or a shelf (specify cutout diameter & location) +$66.60
Rectangular cutout with raw edge, must be 12" or less, in counter top, body panel or a shelf (specify cutout size & location) +$66.60
Rectangular cutout with reinforced edges, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$165.60
Rectangular cutout with reinforced turn down edges & corners welded closed, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$513.90
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, not wired +$158.40
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, wired to existing power source +$250.20
Omission of shelves, open base +$738.00
Special Height Body, per unit
For special width body…per unit +$323.10
Filler panel for special length, mounted on end, enclosed both sides & end, includes longer counter top, longer tray slide if needed, no other equipment in filler +$323.10
L-shaped counters - inside or outside corner formed by lapping standard units +$495.90
Pedestal-type duplex outlet, mounted, not wired +$361.80
Pedestal-type duplex outlet, mounted, wired to existing power source +$492.30
Tier of stainless steel angle slides in base - to hold (4) trays, pans etc. +$673.20
For special length not listed (maximum one-piece length of 88"): To next longer standard unit price...ADD (for TST models) +$323.10
For pass-thru construction +$323.10
Kickplates Kick Plate, customer's side, powder coated steel, recessed, screw attached, 1/2" above floor for easy rolling +$134.10
Kick Plate, customer's side, stainless steel, recessed, screw attached, 1/2" above floor for easy rolling +$134.10
Kick Plate, operator's side, powder coated steel, recessed, screw attached, 1/2" above floor for easy rolling +$134.10
Kick Plate, operator's side, stainless steel, recessed, screw attached, 1/2" above floor for easy rolling +$134.10
Doors Single door, no lock, left hand hinge, paint grip steel, powder coated to match body, magnetic catch, and recessed stainless steel pull +$517.50
Single door, with lock and keys, left hand hinge, paint grip steel, powder coated to match body, magnetic catch, and recessed stainless steel pull +$591.30
Single door, no lock, right hand hinge, paint grip steel, powder coated to match body, magnetic catch, and recessed stainless steel pull +$517.50
Single door, with lock and keys, right hand hinge, paint grip steel, powder coated to match body, magnetic catch, and recessed stainless steel pull +$591.30
Close Options Duke TST-18PG Thurmaduke™ Solid Top Unit
