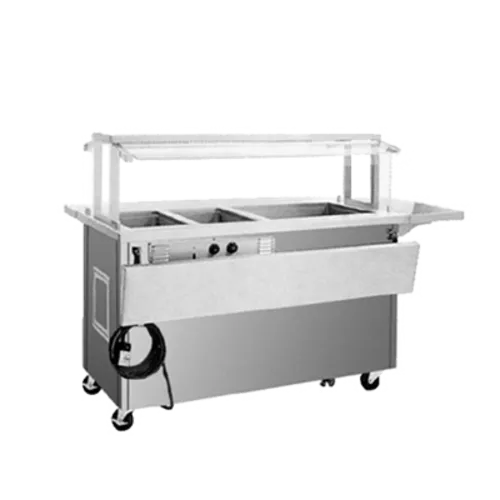

Name: Delfield SH3CR-96-BP Shelleysteel™ Combination Hot/Cold Serving
Brand: Delfield
SKU: SH3CR-96-BP
Availability: LimitedAvailability

Delfield SH3CR-96-BP Shelleysteel™ Combination Hot/Cold Serving

Call us for price

1-800-555-0666

2023 model, meets the newest EPA and DOE codes.

View all Delfield Hot & Cold Serving Counters

Delfield SH3CR-96-BP Specifications

Brand	Delfield
Certifications	NSF
Width (in)	96
Height (in)	36
Depth (in)	30
Weight	750.00

Additional Information on Delfield SH3CR-96-BP

warranty-sheet.pdf

color-chart.pdf

brochure.pdf

service-manual.pdf

delfield-sh3cr-96-bp.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield SH3CR-96-BP Certifications

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield SH3CR-96-BP Description

Shelleysteel™ Combination Hot/Cold Serving Counter, (3) hot food wells, Bloomington cooled 39" x 21.62" x 7" deep with 3" pan recess, enclosed base, 5" swivel casters, 1/2" drain(s) for hot food wells plumbed to common valve, self-contained refrigeration with R290, cUL, UL, NSF, 1/4 hp (contact factory for price)

Options for Delfield SH3CR-96-BP

Factory note & laminate

Laminate exterior base finish, a wide selection of laminate colors available (Contact factory) NOTE: Adding accessories (lights & electrical outlets) will change amp loads

Interlocking device, push-pull handle

Line-Up Interlock Device Push/pull handles, stainless steel (contact factory for price)

Extended sides

Extended slides (3' minimum), per linear foot or fraction (contact factory for price)

Omit hot food unit

Omit ONE hot food well (contact factory for price)

Powder coat louver

Powder coat louver, each (contact factory for price)

Toe plates

Toe plates, (3' minimum), stainless steel (contact factory for price)

Fan assist package

Fan assist package (refrigerated cold pans) (contact factory for price)

Lift gate option

Lift gate option (contact factory for price)

Mechanical access

Mechanical access doors to interior, single door (contact factory for price)

Slanted overshelves

Slanted overshelves, single (per foot; 3' minimum) (contact factory for price) Slanted overshelves, double (per foot; 3' minimum) (contact factory for price)

Energy saving power

Energy Saving Power, for hot food well, priced per well (500 watt per well, 208-230V & plug change) (Note: standard with no drain. If a drain is needed, add the QQ option) (contact factory for price)

Spacer options

Fiberglass Spacer, includes top, interlocks and legs, per linear inch (contact factory for price) Stainless Steel Spacer, includes top, interlocks and legs, per linear inch (contact factory for price) Laminate Spacer, includes top, interlocks and legs, per linear inch (contact factory for price)

Sneezeguards, display cases or serving shelf

NOTE: Heat lamps are ONLY offered when stainless steel intermediate overshelves are selected Glass front counter protector (contact factory for price) Display with glass shelves & sneeze guard, 2 tier (contact factory for price) Double service display with sneeze guard, 2 tier (contact factory for price) Display with glass shelves & sneeze guard, 3 tier (contact factory for price) Overshelf, 12", 18 gauge stainless steel (contact factory for price) Sneeze Guard, single service, flip-up (contact factory for price) Overshelf, 12", two tier, stainless steel (contact factory for price)

Additional gate valves (per drain)

Additional gate valve drain (one per drain required) (contact factory for price) × 4

Base options

Bullet Feet, adjustable, stainless steel (KCS/SCS,KRB/SRB & KCTS/SCTS) Cash Drawer Insert, each (contact factory for price) Cash Counter Tubular Foot Rest, each (contact factory for price) Trim Strip, stainless steel (contact factory for price)

Tray slides, cutting board & work shelf

Tray Slide, drop down design, solid, 12", “V” ridge, stainless steel (contact factory for price) Tray Slide, drop down design, 3-bar, 10", 1" O.D. stainless steel tubing (contact factory for price) Cutting Board, 10", composite fold-down (contact factory for price) Work Shelf, 10" fold-down, stainless steel (contact factory for price) Shelley fixed tray slide bracket (contact factory for price)

Canopy & accessories

Canopy, dome style (per inch) (contact factory for price) Canopy, peak style (per inch) (contact factory for price) Canopy, bus style (per inch) (contact factory for price) Stationary frame (contact factory for price) Adjustable (tube in tube) frame (contact factory for price) 3" letters, each (contact factory for price) 2" or 3" stripe on canopy (per inch) (contact factory for price)

Correctional package

Shelley Correctional Package (contact factory for price)

Backsplash

2" x 4" backsplash return on end (contact factory for price) 2" x 4" high backsplash (per foot; 3' minimum) (contact factory for price)

Options & accessories

Stainless steel shelf Radiant heat lamp with switch, per linear inch (contact factory for price) LED light, per linear inch (contact factory for price) Narrow Xenon Display lights, per linear inch (contact factory for price) Narrow halogen heatlamp, per linear inch (contact factory for price) Narrow halogen heatlamp with Xenon lights, per linear inch (contact factory for price)

What is included

Michigan Note: Note: If installation of equipment is in Michigan, there is a local code requirement that requires individual drain valves and mechanical access on these models. Please add the accessories as required.
Voltages: 120/208-230v/60/1-ph, 23 amps, NEMA 14-30P, standard
