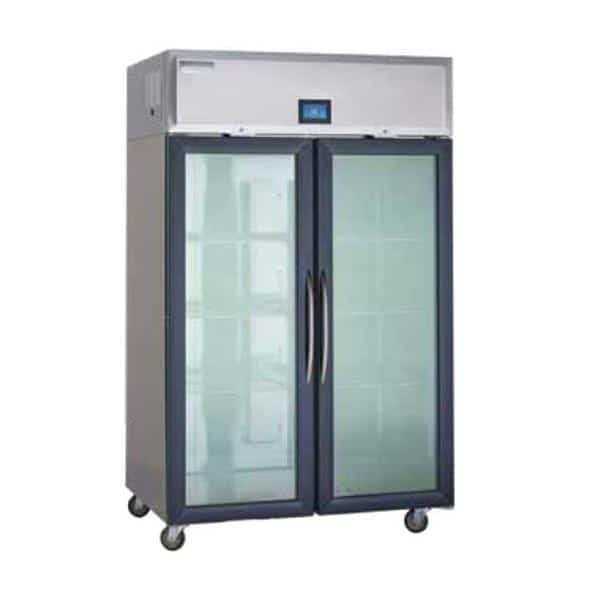

Delfield GAR2NP-GH 48'' 40 cu. ft. Top Mounted 2 Section Glass Door Reach-In Refrigerator

MPN#: GAR2NP-GH
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$15,490.00 /

Contact us for details

$13,243.95 /
or enjoy small payments $284.61/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 15490
  • 2023 model, meets the newest EPA and DOE codes.

Delfield GAR2NP-GH Specifications

Refrigerator Capacity46 cu. ft.
Door SizeHalf
Hinge LocationLeft/Right
ConstructionSteel
Half DoorsYes
BrandDelfield
Refrigerant TypeR-290
Energy EfficiencyEnergy Star
Certifications5-15P
Number of Doors4
Refrigeration SystemSelf-contained
Capacity31 - 46 cu. ft.
Compressor LocationTop Mounted
Door TypeGlass
Sections2
Temperature Range33 - 40 Degrees F
Voltage115 Volts
Width (in)48
Height (in)79.38
Depth (in)32.44
Weight652.00

Additional Information on Delfield GAR2NP-GH

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield GAR2NP-GH Certifications

5-15P

5-15P

Two-pole with ground pin plug

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Delfield GAR2NP-GH Description

Specification Line® Refrigerator, Reach-In, Narrow, two-section, 46.0 cubic feet capacity, top-mounted self-contained refrigeration system, (4) half-height hinged glass doors (locking), (6) adjustable chrome wire shelves, 4.3" easyTouch® screen temperature display/control with remote monitoring, LED interior lighting, pilaster with shelf clips, stainless steel exterior front, sides & interior, (4) 5" locking casters, GreenGenius™ R290 Hydrocarbon refrigerant, 0.35 HP, 115v/60/1-ph, 6.0 amps, NEMA 5-15P, NSF, cULus, ENERGY STAR®

Although with a narrow build than standard models, this 48" wide GAR2NP-G Specification Line® reach-in refrigerator by Delfield has a spacious cabinet with a 40 cubic feet storage capacity. This two-section ENERGY STAR-rated food storage solution features (2) full-height doors and six (6) shelves complete with stainless steel that you can move up and down to fit varied products including full-size sheet pans.

The cabinet is stainless steel inside and out, which means it won’t easily chip or corrode and will be easy to clean and maintain. The glass doors and LED interior lighting form an attractive display that fully showcases your products in their best light. They are lockable so your inventory is kept safe on- and off-hours. The gasket is protected by the ABS interior door liner so that it won’t be damaged when sharp or large items are being retrieved or placed inside the unit. It is easy to remove and replace too, with no tools required.

The easyTouch controller makes for convenient, one-touch operation, improving your productivity. It can be connected to smart devices so you always have important performance data available to you remotely. The refrigeration system comes off in one piece so it is easy to remove during service. Since it is top-mounted, you don’t have to give up interior space for it and the products on the top shelves will be easier to reach. The 5" locking casters add much-needed mobility for the initial setup and routine cleaning.

This reach-in refrigerator is insulated with ozone-friendly high-density foamed-in-place polyurethane and cools the contents with the eco-friendly R290 refrigerant. The electronic temperature controls enhance pull-down performance to prolong compressor life. The adaptive defrost senses environmental conditions to adjust the defrost time effectively and in turn, keep an ice-free evaporator. The digital temperature display lets you know if the refrigerator hits low or high temperature extremes.

The GAR2NP-G Specification Line® reach-in refrigerator has NSF and cULus certifications. It is rated at 6.0 amps and uses 115v/60/1-ph electrical connection. A 10' cord and NEMA 5-15P are supplied along with 5" locking casters. Parts and labor warranty is three years with an additional two years for compressor parts.

Need more commercial refrigerators & freezers? We have an excellent selection here at CKitchen!

Specification Line® Refrigerator, Reach-In, Narrow, two-section, 40.0 cubic feet capacity, top-mounted self-contained refrigeration system, (2) half-height hinged glass doors (locking), (6) adjustable shelves, easyTouch touchscreen temperature display/control with remote monitoring, LED interior lighting, stainless steel exterior front, sides & interior, (4) 5" locking casters, GreenGenius™ R290 Hydrocarbon refrigerant, 0.35 HP, 115v/60/1-ph, 6.0 amps, NEMA 5-15P, NSF, cULus, ENERGY STAR®

Standard Features:
  • Door locks
  • Chrome standard
  • 3 shelves per section
  • Removable side louver
  • 115V / 60C / 1 P Standard
  • 10’ cord and plug attached
  • Energy saving LED interior light
  • Stainless steel pilaster with shelf clips
  • Stainless steel exterior front, sides & interior
  • Field rehingable doors - full height doors only
  • 5” locking casters shipped loose for field installation
  • easyTouch Control with remote monitoring capability
  • Energy efficient door gasket - removable without tools
  • Digital exterior temperature display with high/low temp visual alarms
  • Smart door hinge that auto closes up to 90˚ and stays open past 90˚
  • Three year parts and labor warranty and an additional 2 year compressor parts warranty.
  • GreenGenius™ R290 top mount refrigeration system featuring TXV expansion valve and hot gas condensate removal
Options & Accessories
  • Kick plate
  • Trim strips
  • Utility base
  • Stainless steel back
  • 6” Stainless steel feet
  • 6” Casters (all locking)
  • Stainless steel shelves
  • Foot Pedal Door Opener
  • Tray/Pan Slides - various
  • Additional chrome shelves
  • 6” Stainless Steel flanged feet
  • Laminate - front, ends, shroud
  • Heat shield end - max temp 400 degrees
Specifications
Refrigeration system: All components are mounted to the top cabinet ceiling, outside the food zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R290 refrigerant is used. System has the capability of maintaining between 33˚F and 40˚F in heavy use food service operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reducing compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system. Units are completely insulated with high density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.

Options for Delfield GAR2NP-GH

Transformer package
Humidity control
Lift gate option
Additional shelving & pan supports
Shelf bridge
Stainless Steel back
Correctional package
Mounting options
Accessories
Drawer options
What is included
  • Parts & Labor warranty: 3 year parts & labor warranty, standard
  • Compressor warranty: Additional 4 years compressor warranty (parts only), standard
Door hinging
