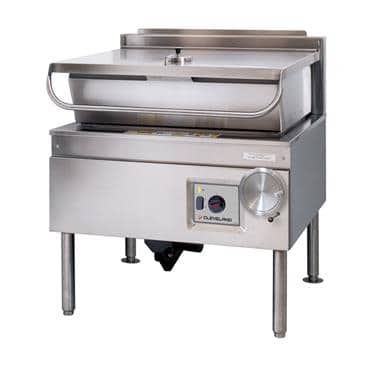

Cleveland Range SGL30TR DuraPan™ 30 Gallon Gas Floor Model Tilting Skillet Braising Pan with Manual Contols - 91,000 BTU
MPN#: SGL30TR
Free Freight?
Quick Ship
$26,523.75
Contact us for details
Calculate
Product Protection
Starting at
- Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
- Please see specification sheet for installation clearance requirements
Cleveland Range SGL30TR Specifications
| Total BTU | 56000 - 104000 |
|---|---|
| BTU | 91,000 BTU |
| Series | DuraPan™ |
| Installation Type | Floor Model |
| Cover Options | Spring-assisted |
| Brand | Cleveland Range |
| Certifications | CE |
| Titling Skillet Braising Pan | Gas |
| Tilt | Electric |
| Power Type | Gas |
| Base | Modular Open |
| Controls | Manual |
| Capacity | 30 Gallon |
| Heat | Gas |
| Voltage | 120 Volts |
| Width (in) | 36 |
| Height (in) | 42 |
| Depth (in) | 40 |
| Weight | 498.00 |
Additional Information on Cleveland Range SGL30TR
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Cleveland Range SGL30TR Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Cleveland Range SGL30TR Description
DuraPan™ Tilting Skillet, gas, 30-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, stainless steel level adjustable feet, 91,000 BTU, IPX6, CE, NSFDuraPan™ Tilting Skillet, gas, 30-gallon capacity, modular open base, standard with electric tilt mechanism, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, food strainer, stainless steel level adjustable feet, CE, NSF, 91,000 BTUStandard Features:
- Leg or Modular Base
- Anti-Splash Pouring Lip
- Electronic Spark Ignition (ESS)
- Power Tilt (Hydraulic Hand Tilt Optional)
- High Limit Safety Device set at 475°F (246°C)
- Supplied with Cord & Plug for 115-volt controls
- Typical approvals include AGA, CSA, CE and NSF
- All Controls are serviceable from the front of the unit
- High-Efficiency Heating System with even heat distribution
- Splash Proof Controls and Water Tight Electrical Connections
- All Stainless Steel Construction for durability and easy cleaning
- Spring Assist Cover with Adjustable Vent and Full-Width Handle
- Two pilot lights; Green = Power on, Amber = Temperature Cycling
- Four Stainless Steel, Level adjustable feet, rear flanged for bolting
- Stainless Steel Clad 5/8" Cooking Surface Guaranteed against warping
- On/Off Switch, Thermostat Knob and Pilots, recessed to avoid breakage
- Stainless Steel Coved Cornered Pans with both Gallon and Liter Markings
- Full 30/40 Gallon (115/150 Liters) Capacity Rating to Bottom of Pouring Lip
- Adjustable, Electronic Thermostat controls temperature from 100°F to 425°F
- Fast Heat-Up and Recovery Time-Preheats in 11 minutes, full capacity from cold to boiling in 60 minutes
- Poaching Pans (PP)
- Wall Mounting (WMS)
- In-Wall Carrier (IWCS)
- Vegetable Steamers (VS)
- Gas types other than natural
- Food Strainers for pouring spout (FS)
- Power Tilt with Hand Tilt Override (PT1)
- 2" Tangent Draw-Off Valve (TD2), left side only
- Hydraulic Hand Tilt with quick lowering feature (HTS)
- Hot & Cold Water Pre-Rinse Spray Head with Hose (PRS-S)
- Voltage Option: VOSK4, 220/240 Volt, 50 Hz, 1 Phase - for export
- Double or Single Pantry Skillet Filler with 60" hose (SKF-S or DKF-S)
- Sliding Drain Drawer with Splash Screen (SLD) (for SGL models only)
- Double or Single Pantry Faucet (SPS14, DPS14), includes Faucet Mounting Bracket
- Pan Carriers (PCS), not available on 30 gallon models with a Tangent Draw-Off Valve
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
Cleveland Range SGL30TR Accessories
Cleveland Range SGL30TR Reviews
There are no reviews yet for this product.
Questions and Answers
28 v 1.2w temp indicator light
We do not sell this part. We only sell their equipment. Please reach out to Cleveland Range directly at Toll Free: 800-338-2204
